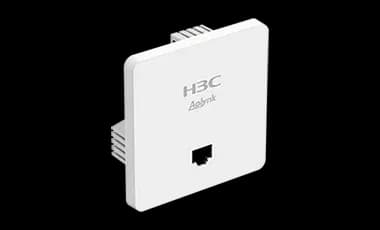

An ultra-slim Wi-Fi 5 wall-plate AP for 86 mm wall boxes, with a LAN port for wired devices.
Island-wide delivery to all 25 districts
| Name | UAP512G-AC13 |
|---|---|
| Dimensions | 86mm×86mm×37mm |
| Weight | 160g |
| Fixed port | Uplink: 1 10/100/1000Mbps auto-negotiated Ethernet uplink port (PoE powered) LAN: 1 10/100/1000Mbps auto-negotiated Ethernet port |
| PoE | Support 802.3af power supply |
| Case color | White (default). Black, gold, grey (optional) |
| Built-in antenna | Built-in omni-directional antenna (2.4GHz: 3dBi; 5GHz: 4dBi) |
| Radio frequency&MIMO | Radio1: 5G, 2x2, 866.7Mbps Radio2: 2.4G, 2x2, 400Mbps |
| Working frequencies | 2.400 to 2.4835GHzISM 5.150 to 5.250GHzU - NII - 1 5.250 to 5.350GHzU - NII - 2A 5.470 to 5.725GHzU - NII - 2C 5.725 to 5.850GHzU - NII - 3/ISM Note: The available operating band varies according to the country of use of the device, depending on the country of final use of the device |
| Modulation technology | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, [email protected] /11Mbps |
| Modulation mode | 11b: DSSS: [email protected] /11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM |
| Transmit power | 2.4G: 18 dBm 5G: 17 dBm Note: Antenna gain is not included, the actual power is adjusted according to different national regulations |
| Adjustable power granularity | 10% |
| Operating temperature/storage temperature | 0ºC ~ 40ºC/-40ºC ~ 70ºC |
| Operating humidity/storage humidity | 5% to 95% (non-condensing)/ 5% to 95% (non-condensing) |
| Power consumption | ≤11.65 W |
| MTBF | >613200 hrs at 25ºC |
| Certification | CE, CB, RoHS |
| 802.11 protocol | 802.11 a |
| WLAN security | RSN |
| Wireless services | SSID configuration |
| Radio frequency management | Power Settings |
| WRRM | 5G first |
| RRM | Automatic optimization, manual optimization |
| User isolation | VLAN-based user isolation |
| Weak signal optimization | Disable weak signal clients access |
| Wireless optimization | Roaming sensitivity adjustment |
| Network protocols | ARP |
