H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request
An outdoor Wi-Fi 6 AP with up to 2.975 Gbps, 6 kV surge protection and PoE+ or DC power.
Island-wide delivery to all 25 districts

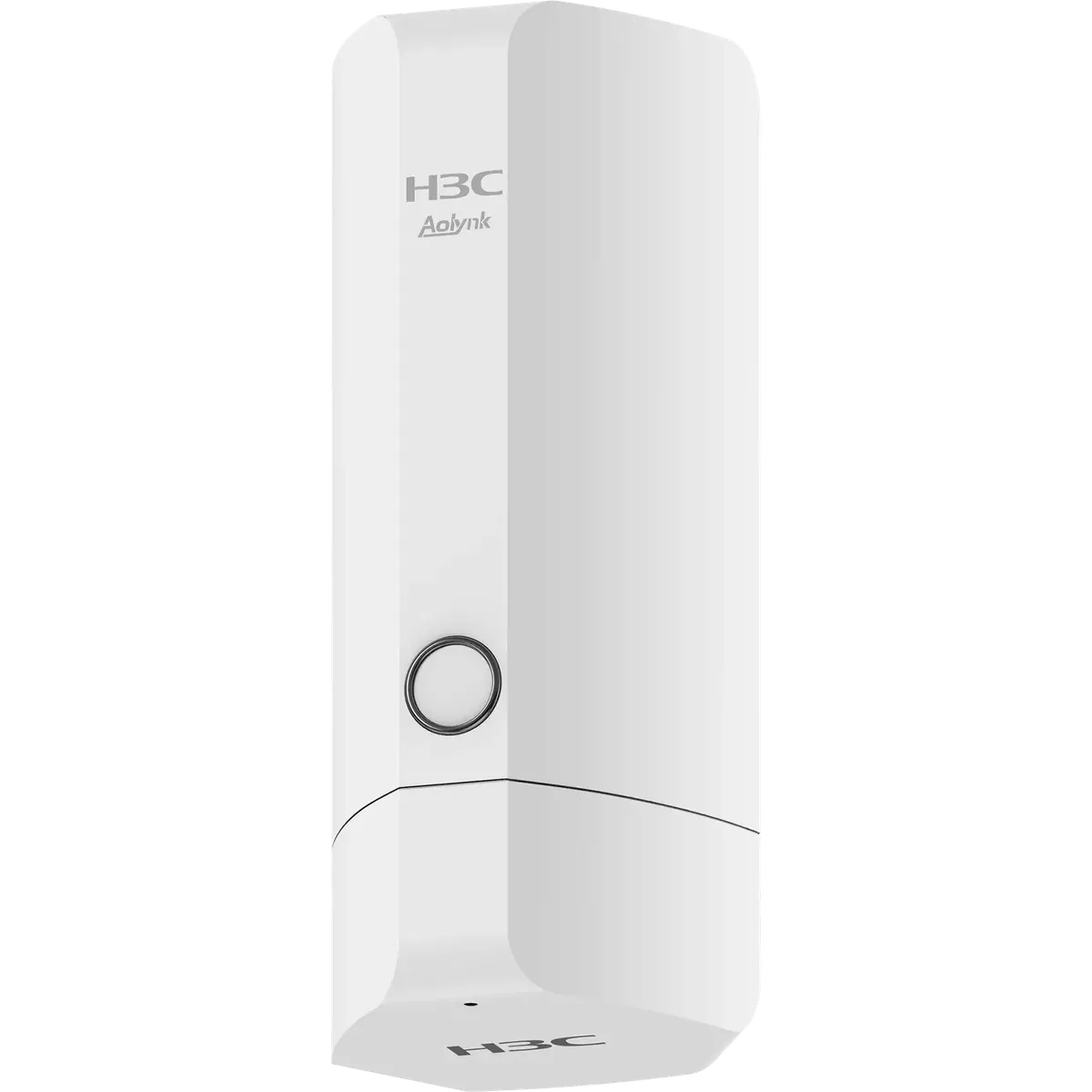

| Name | UAP632G-AX30 |
|---|---|
| Dimensions | 101mmx110mm×250mm (excluding the Integrated Mounting Bracket) |
| Weight | 1.10KG |
| Case color | White |
| Fixed port | uplink： 1 x 10/100/1000Mbps auto-negotiated Ethernet uplink port (PoE+ powered) |
| PoE | Support 802.3at power supply |
| Power consumption | ≤14.4W |
| Built-in antenna | Built-in omni-directional antenna（2.4G：3dBi；5G：5dBi） |
| Radio frequency&MIMO | Radio1: 5G, 2x2, 2402Mbps Radio2: 2.4G, 2x2, 574Mbps |
| Working frequencies | 2.400 to 2.4835GHzISM 5.150 to 5.250GHzU-NII-1 5.250 to 5.350GHzU-NII-2A 5.470 to 5.725GHzU-NII-2C 5.725 to 5.850GHzU-NII-3/ISM Note: The available operating band varies according to the country of use of the device, depending on the country of final use of the device |
| Modulation technology | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSSS: DBPSK@1Mbps, DQPSK@2Mbps, [email protected] /11Mbps |
| Modulation mode | 11b: DSSS: [email protected] /11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Transmit power | 2.4G: 28dBm 5G: 29dBm Note: Antenna gain is not included, the actual power is adjusted according to different national regulations |
| Adjustable power granularity | 10% |
| Operating temperature/storage temperature | -30ºC～55ºC/-40ºC～85ºC |
| Operating humidity/storage humidity | 0% ~100% (non-condensing)/ 0% ~100% (non-condensing) |
| Protection degree | IP68 |
| Port surge protection | ±6Kv |
| MTBF | 2171266 hrs |
| Certification | CE、CB、RoHS |
| Warranty | 3Y |
| 802.11 protocol | 802.11a |
| WLAN security | RSN |
| Wireless services | SSID configuration |
| Radio frequency management | Power Settings |
| WRRM | 5G first |
| User isolation | VLAN-based user isolation |
| Wireless optimization | Disable weak signal client’s access |
