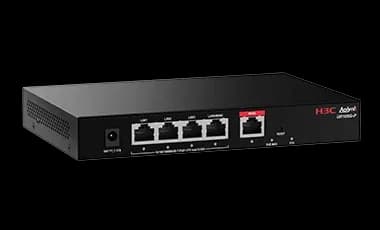

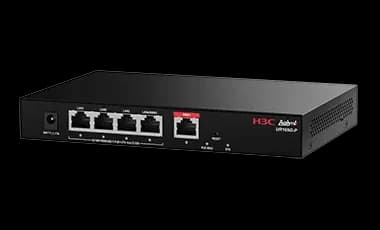

A small-business PoE router for up to 100 users, powering APs and cameras directly from its ports.
Island-wide delivery to all 25 districts
| Name | UR105G-P |
|---|---|
| Recommended number of clients | 100 |
| Bandwidth | 1Gbps |
| IPSec encryption performance | 100Mbps |
| Number of IPSec VPN tunnels | 100 |
| NAT sessions | 40,000 |
| NAT mapping entry | 100 |
| Number of supported Aolynk APs | 32 |
| Max number of supported VLAN | 16 |
| CPU | Dual Core 880MHz |
| RAM | 256MB |
| Flash | 128MB |
| WAN Ethernet port | 1*GE |
| LAN Ethernet port | 4*GE (PoE+, single port Max 30W, 1 LAN port can be switched to WAN port) |
| Power consumption of the whole machine | 63W |
| PoE maximum power | 58W |
| AC power supply | Rated range: 100 to 240V 50/60Hz |
| Reset button | Support |
| Overall dimensions (W x D x H, mm) | 190 x 125 x 27 |
| Ambient temperature | 0 to 40 ° C |
| Ambient humidity | 5 to 95% (no condensation) |
| Certification | CE, CB, RoHS |
| WAN Access | Support static IP address, DHCP, PPPoE Support link state detection, ICMP, DNS, NT Support static routing and policy-based routing |
| LAN | Support port-based VLAN configuration, MAC address learning, broadcast storm suppression, and traffic mirroring |
| QoS | Support limiting traffic per IP Support limiting traffic based on user groups |
| Security Features | Defines firewall filtering policies based on source and destination IP addresses and ports |
| Multiple WAN load balancing | Load balancing based on telecom operator destination address Support load balancing based on link bandwidth Load balancing by user (IP address) Support PBR specified line forwarding Support end-to-end link detection and backup |
| Network Features | Support for DHCP Server Support NTP Client DDNS support IPTV support IPv6 support |
