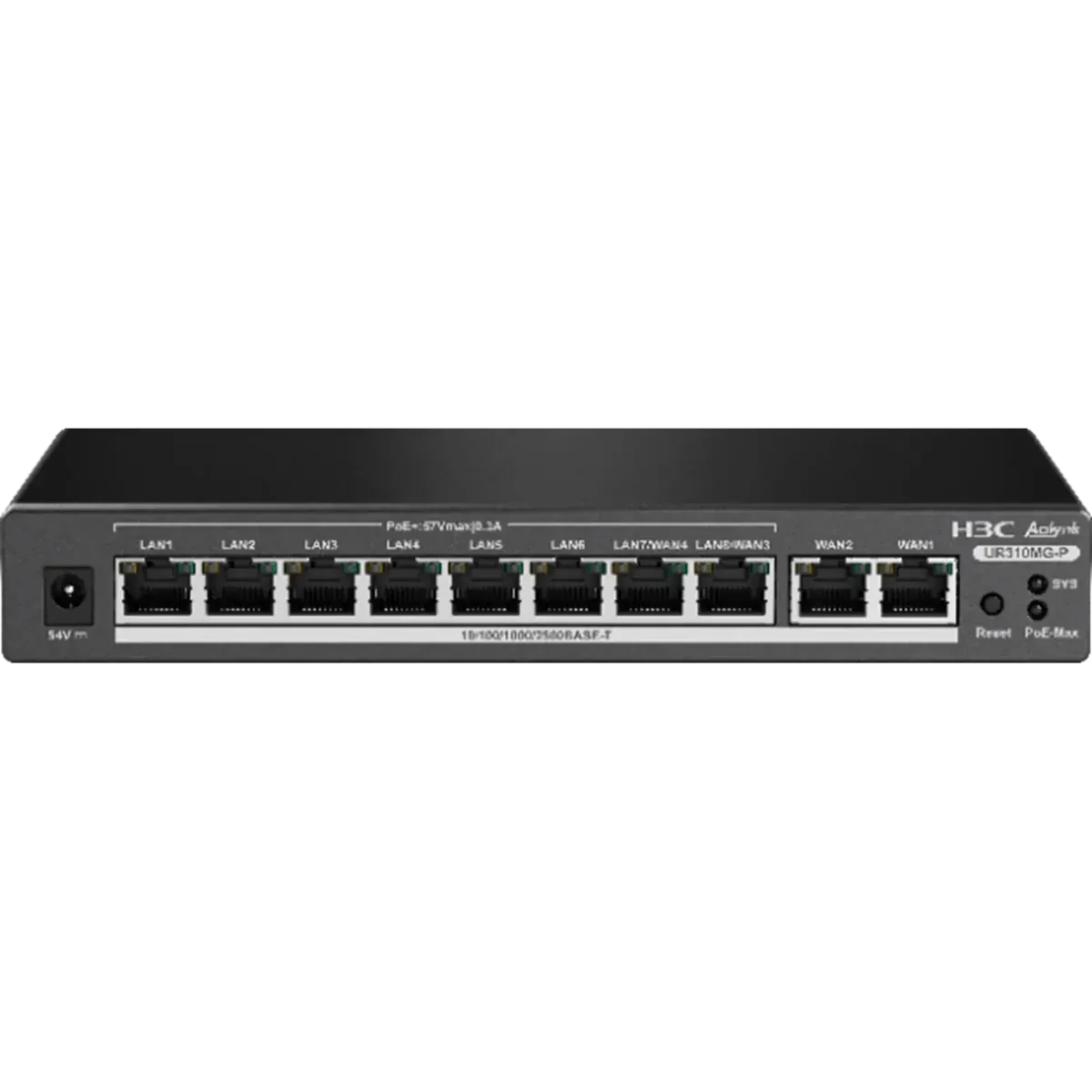

A multi-gigabit PoE router for about 350 users, with 5 Gbps throughput and 140,000 NAT sessions.
Island-wide delivery to all 25 districts
| Name | UR310MG-P |
|---|---|
| Recommended number of clients | 350 |
| Bandwidth | 5Gbps |
| IPSec Encryption Performance | 800Mbps |
| IPSec VPN Tunnels | 100 |
| NAT sessions | 140K |
| NAT Mapping Entries | 100 |
| Manageable APs | 120+ |
| Memory | 512MB |
| WAN Ethernet Ports | 2x2.5G |
| LAN Ethernet Ports | 8x2.5G (2 LAN ports can be switched over to WAN) |
| PoE | Supports standard 802.3af/at; Supports up to 8 LAN ports as PoE ports; Overall system PoE budget 125W; Port PoE budget 30W |
| Reset button | 1 |
| Maximum power consumption | 140W (including PoE) |
| AC Power | Standard power distribution adapter, rated range: 100～240V 50/60Hz |
| Dimensions (W×D×H, mm) | 210x127.8x30 |
| Ambient temperature | -10～45℃ |
| Operating Environment Relative Humidity | 5～95% (non-condensing) |
| Warranty | 3 years |
| Certification | CE、CB、RoHS |
| WAN Access | Support static IP address, DHCP, PPPoE Support link state detection, ICMP, DNS, and NTP Support static route and policy-based routing (PBR) Support VLAN Tagging |
| LAN | Support port-based VLAN configuration, MAC address learning, broadcast storm suppression, and traffic mirroring |
| QoS | Support traffic limiting per-IP Support traffic limiting based on user groups |
| Security | Support defining firewall filtering policies based on source and destination addresses and ports |
| Multi-WAN load balancing | Support load balancing based on carrier destination address Support load balancing based on link bandwidth Support load balancing based on user (IP address) Support PBR specified line forwarding Support end to end link detection and backup |
| Network Features | Support DHCP Server Support NTP Client Support DDNS Support UPnP Support IPTV Support IPv6 |
| VPN | Supports IPSec VPN Supports 100 IPSec connections AH and ESP protocols Supports IKE automatic establishment of security association (SA) ESP supports multiple encryption algorithms (EA) such as 3DES and AES MD5 and SHA-1 authentication algorithms IKE main mode and aggressive mode Supports NAT-T traversal Supports configuring IPSec connections via domain name (DDNS) Supports L2TP VPN (LAC and LNS) |
| Management and maintenance | Supports WEB/UWEB management interface Supports remote management via Aolynk Cloud network management platform Supports Aolynk APP management |
