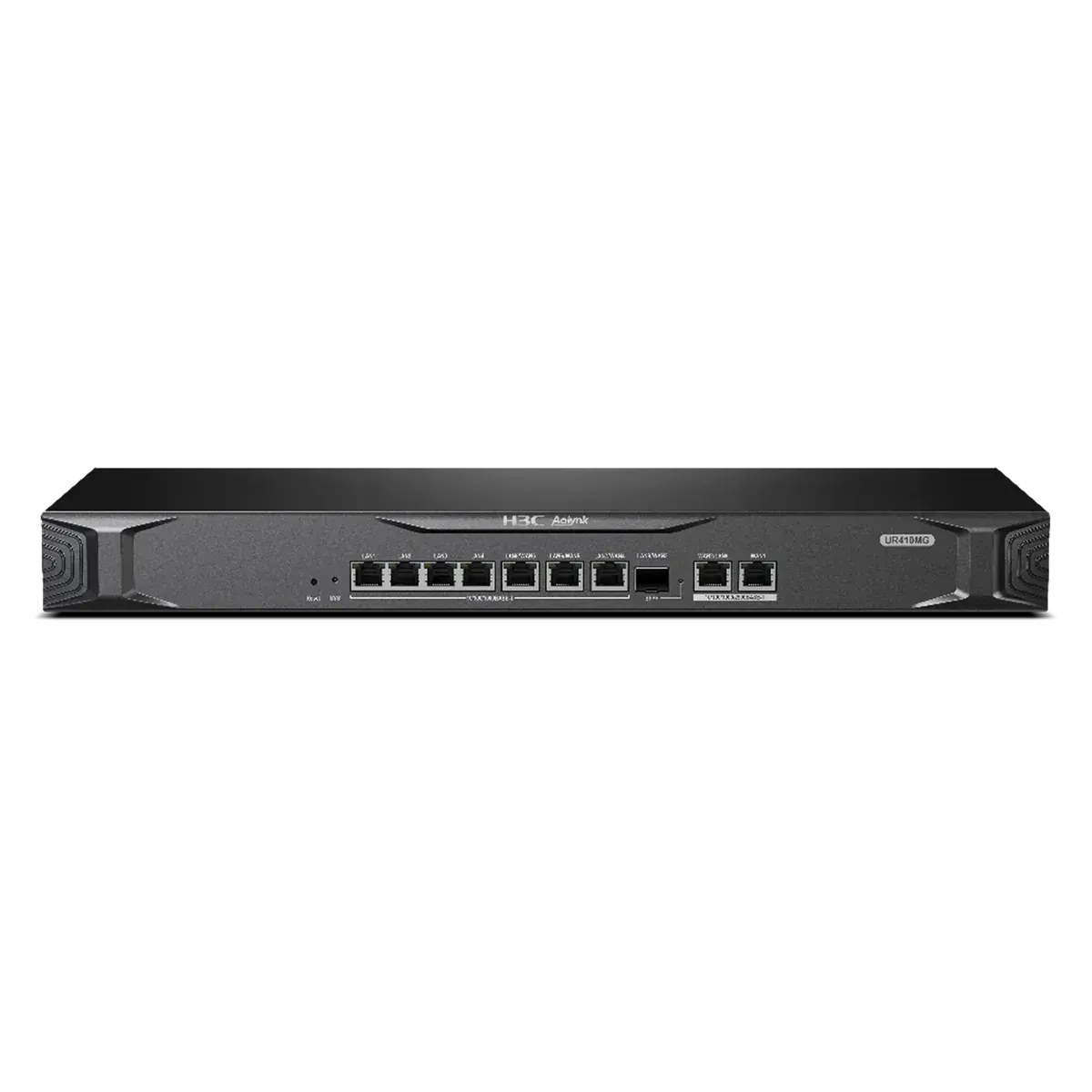

A multi-gigabit SMB router with 2.5G line-rate forwarding, 5 Gbps throughput and up to 160,000 NAT sessions for about 400 users.
Island-wide delivery to all 25 districts
| Name | UR410MG |
|---|---|
| Recommended number of clients | 400 |
| Bandwidth | 5Gbps |
| IPSec Encryption Performance | 800Mbps |
| IPSec VPN Tunnels | 100 |
| NAT sessions | 160000 |
| NAT Mapping Entries | 100 |
| Manageable APs | 120+ |
| Memory | 1GB |
| WAN Ethernet Ports | 2x2.5G (1x2.5G WAN port can be switched over to LAN) |
| LAN Ethernet Ports | 7xGE+1xSFP+ (3xGE+1xSFP+ LAN ports can be switched over to WAN) |
| PoE | Not supported |
| Reset button | 1 |
| Maximum power consumption | 15W |
| AC Power | Built-in Open Frame Power Supply, Rated Range: 100～240V 50/60Hz |
| Dimensions (W×D×H, mm) | 440x225.5x43.6 |
| Ambient temperature | -10～45℃ |
| Operating Environment Relative Humidity | 5～95% (non-condensing) |
| Warranty | 3 years |
| Certification | CE、CB、RoHS |
| WAN Access | Support static IP address, DHCP, PPPoE Support link state detection, ICMP, DNS, and NTP Support static route and policy-based routing (PBR) Support VLAN Tagging |
| LAN | Support port-based VLAN configuration, MAC address learning, broadcast storm suppression, and traffic mirroring |
| QoS | Support traffic limiting per-IP Support traffic limiting based on user groups |
| Security | Support defining firewall filtering policies based on source and destination addresses and ports |
| Multi-WAN load balancing | Support load balancing based on carrier destination address Support load balancing based on link bandwidth Support load balancing based on user (IP address) Support PBR specified line forwarding Support end to end link detection and backup |
| Network Features | Support DHCP Server Support NTP Client Support DDNS Support UPnP Support IPTV Support IPv6 |
| VPN | Support IPSec VPN Support 100 IPSec connections Support AH and ESP protocols Support IKE automatic SA establishment ESP supports 3DES and AES encryption algorithm Support MD5 and SHA-1 authentication algorithms Support IKE main mode and aggressive mode Support NAT-T traversal Support configuring IPSec connections via domain name (DDNS) Support L2TP VPN (LAC and LNS) |
| Management and maintenance | Support WEB/UWEB management Support remote management via Aolynk Cloud platform Supports Aolynk APP management |
