H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request
Affordable cloud-managed gigabit switches for SMBs, with priority ports and 2.5G SFP uplinks on selected models.
Island-wide delivery to all 25 districts

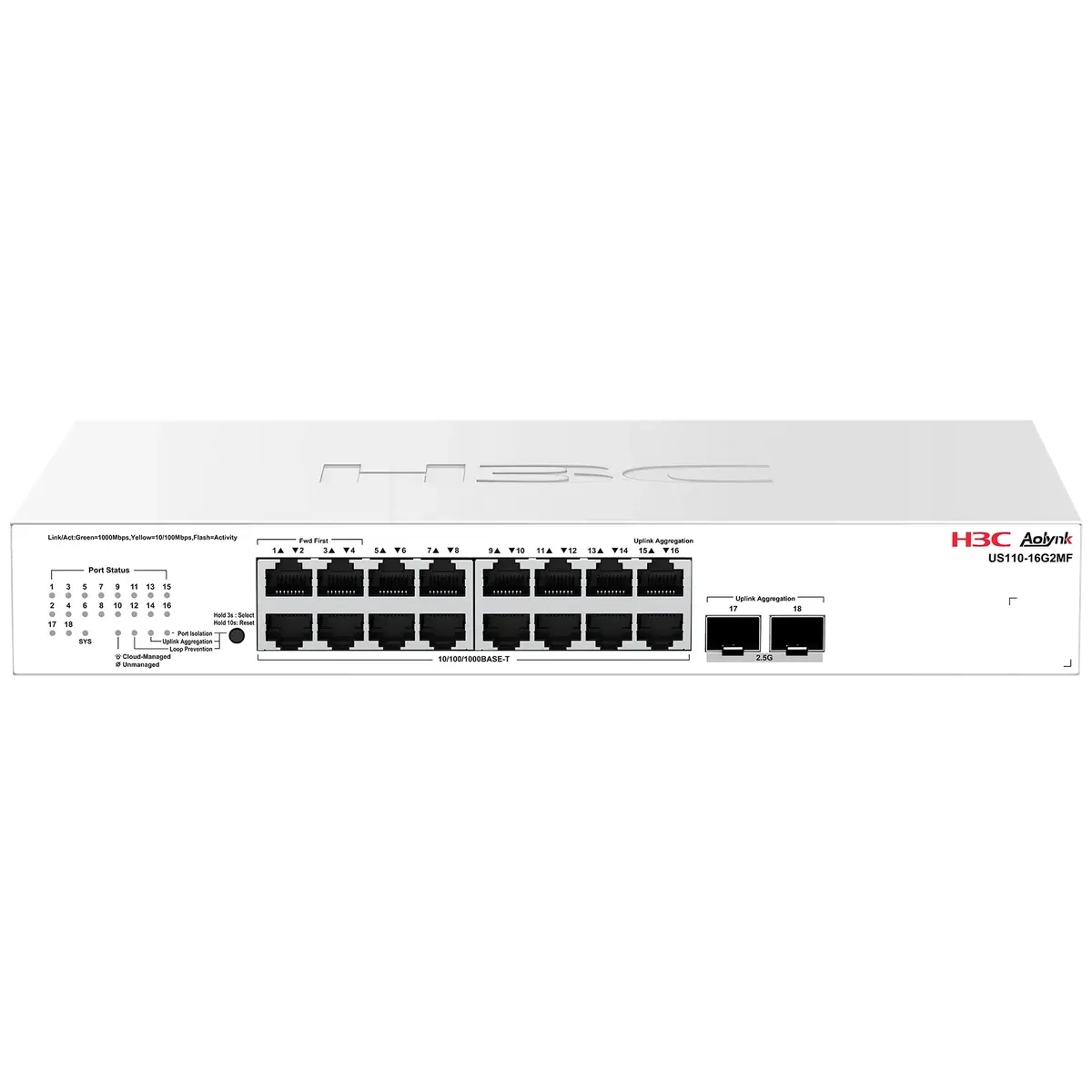

| property | Aolynk US110-16G2MF / Aolynk US110-24G / Aolynk US110-24G2MF |
|---|---|
| Size | 294×179×43.6mm / 440×173×43.6mm |
| Weight | ≤1.88kg / ≤2.36kg / ≤2.43kg |
| Switching capacity | 42Gbps / 48Gbps / 58Gbps |
| Packet forwarding rate | 31.25Mpps / 35.72Mpps / 43.15Mpps |
| Fixed port | 16 x 10/100/1000 Base-T Ethernet ports, 2 2.5G/1G SFP optical ports / 24 x 10/100/1000 Base-T Ethernet ports / 24 x 10/100/1000 Base-T Ethernet ports, 2 2.5G/1G SFP optical ports |
| Priority forwarding port | 1-4 ports / 1-8 ports |
| Aggregation Uplink Port | 15-16 ports, 17-18 ports / 23-24 ports / 23-24 ports, 25-26 ports |
| Button switch - mode switch | Options: 3S port isolation; aggregation uplink; loop Prevention. Reset: Press and hold for 10 seconds |
| MAC address table | 16K |
| Port surge protection | 6kV |
| Operating temperature / storage temperature | 0ºC～45ºC / -40ºC～70ºC |
| Operating humidity / Storage humidity | 10%～90% / 5%～90% (non-condensing) |
| Certification | CE, CB, RoHS |
| MTBF | >200000H |
| Heat dissipation method | Fanless silent design, natural heat dissipation |
| Installation method | Desktop; comes standard with mounting ears for rack mounting. |
| Static power consumption | 2.81W / 3.75W / 3.8W |
| Full load power consumption | 10.2W / 12.92W / 14.8W |
| Input voltage | 90V～264V AC / 90-264V AC |
| VLAN | Supports 802.1Q VLANs |
| DHCP | Support DHCP Client |
| Safety features | Support for unknown unicast suppression |
| Management and maintenance | Supports remote management and maintenance via the Cloud Platform |

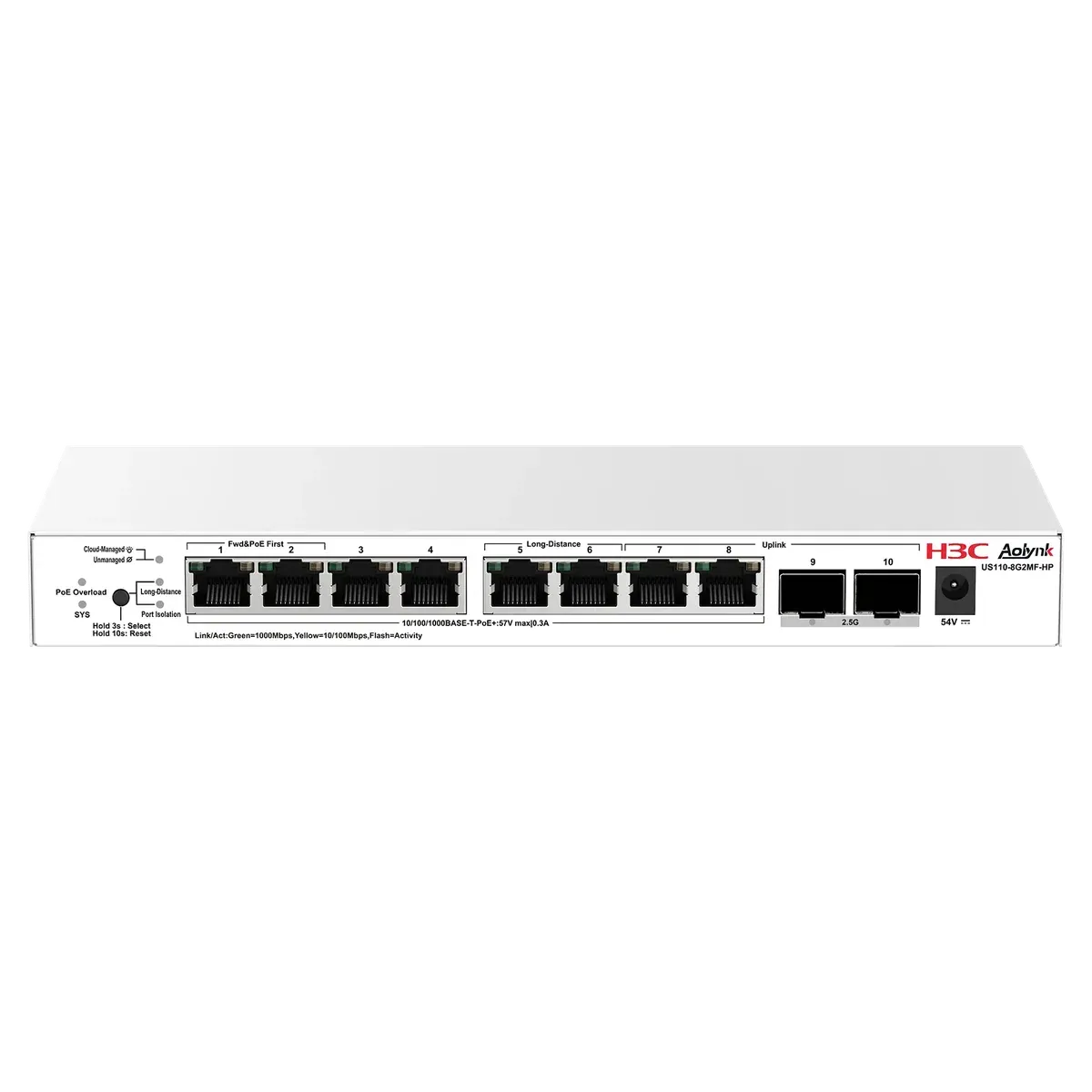

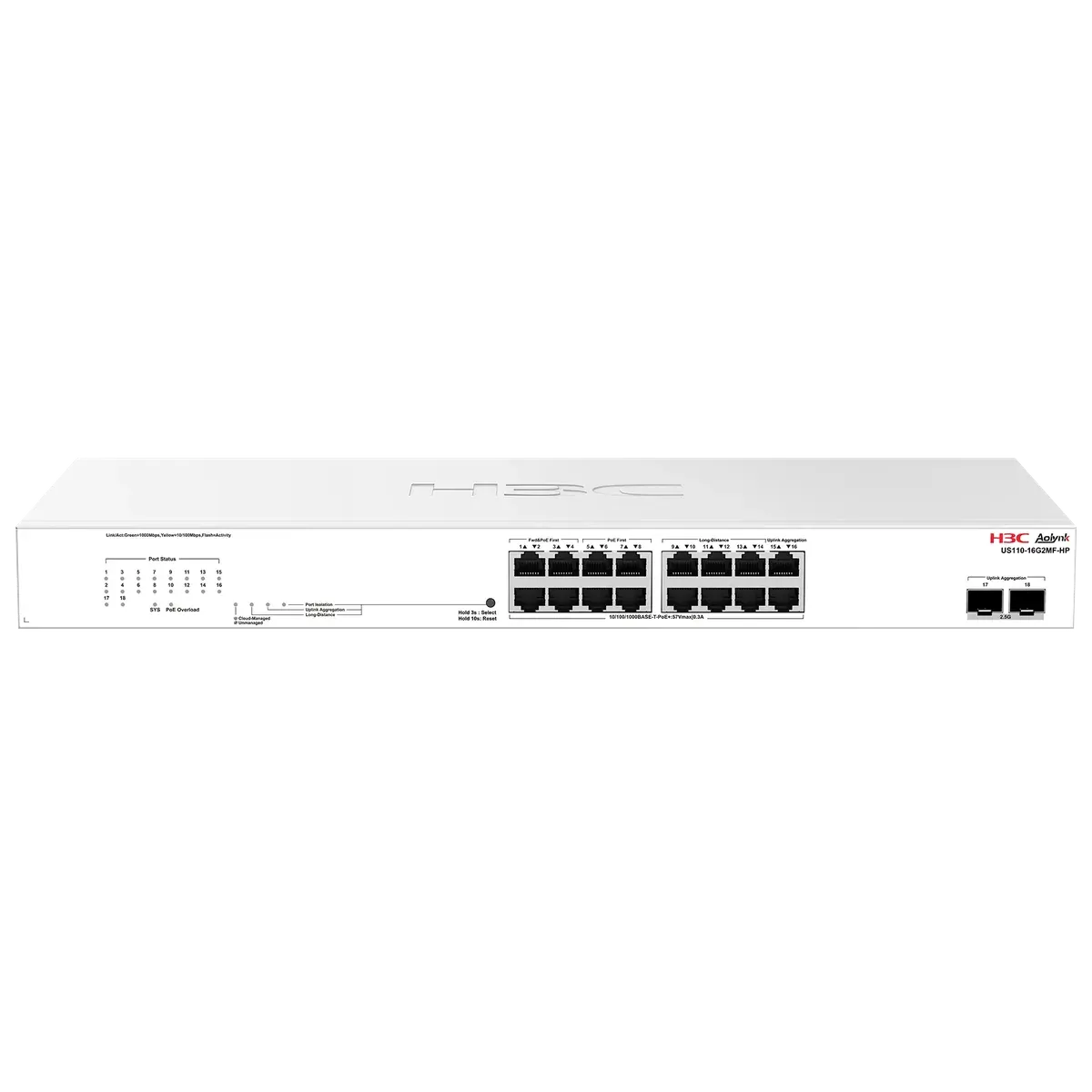

| Property | Aolynk US110-8G2MF-HP / Aolynk US110-16G2MF-HP / Aolynk US110-24G2MF-HP |
| PoE+ power supply | support |
| Maximum PoE power supply per port power | 30W |
| Maximum PoE power supply of the whole machine | 130W / 225W / 370W |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
