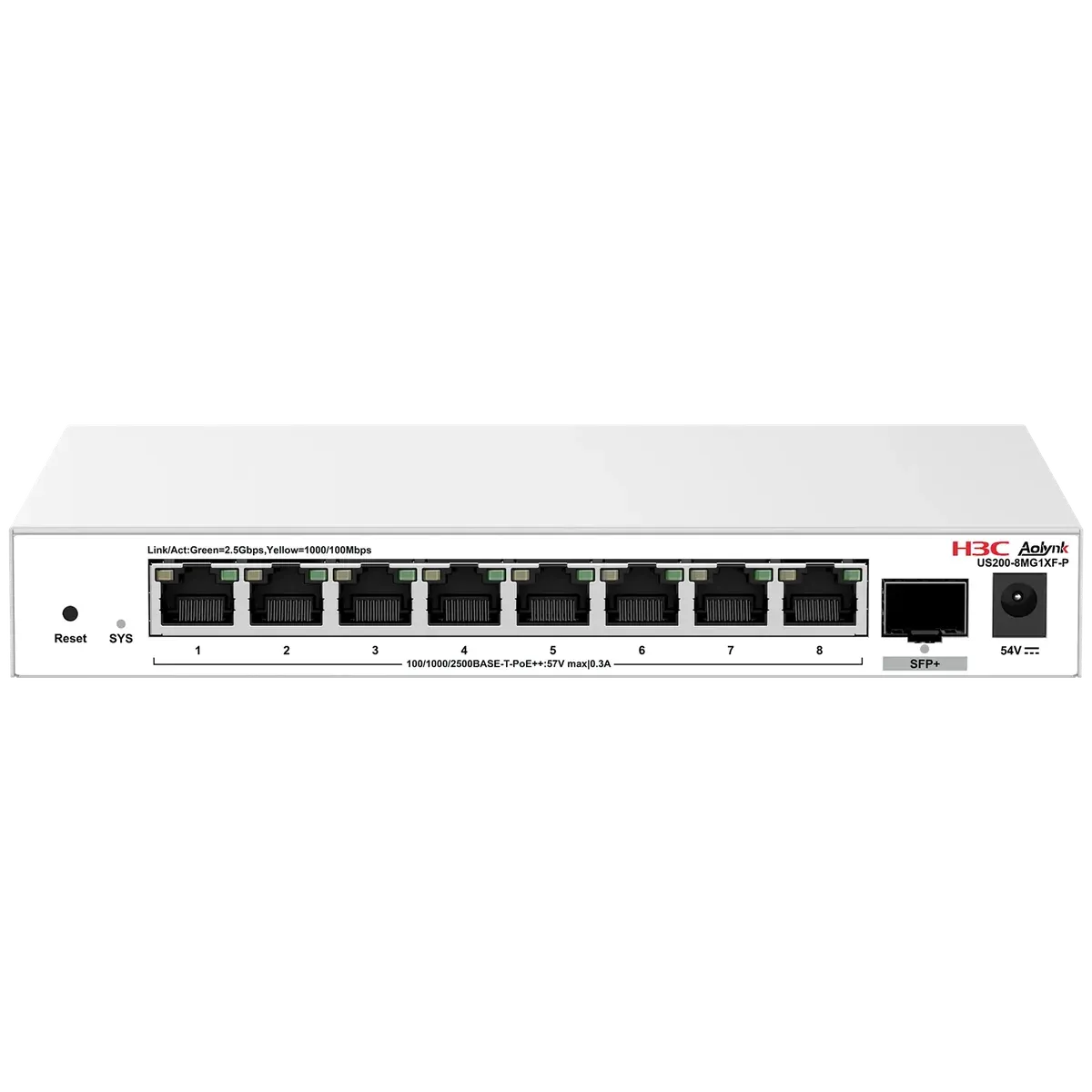

A compact 8-port 2.5G PoE++ switch with a 10G SFP+ uplink, ideal for powering Wi-Fi 6/7 APs.
Island-wide delivery to all 25 districts
| Dimensions (H × W × D) | 190mm×125mm×29 mm |
|---|---|
| Weight | ≤0.55kg |
| Switching capacity | 60Gbps |
| Packet Forwarding Rate | 44.64Mpps |
| Fixed Ports | 8x 100/1000/2500 BASE-T PoE++ copper ports, 1x 1G/2.5G/10G SFP+ fiber port |
| MAC address table | 4K |
| Port Lightning Protection | ±6KV |
| Operating Temperature/Storage Temperature | 0ºC～45ºC/-40ºC～70ºC |
| Operating Humidity/Storage Humidity | 10% to 90%/5% to 90% (non-condensing) |
| Certification &Safety | CE、CB、RoHS |
| MTBF | ＞200,000 hours |
| Heat dissipation method | Fanless silent design, natural heat dissipation |
| Installation method | Desktop, wall-mount |
| PoE Power Supply Standard | IEEE 802.3af/at /bt |
| Maximum PoE Power per Port | 90W |
| Maximum Overall System PoE Power | 135W |
| Perpetual PoE | Supported |
| Fast PoE | Supported |
| PoE Watchdog | Supported |
| Static power consumption | 3.7W |
| Full Load Power Consumption | 139W |
| Input Voltage | 90V～264V AC |
| VLAN | Supports IEEE 802.1Q VLAN |
| Ethernet | Supports Static Link Aggregation |
| Security | Supports Port Isolation |
| DHCP | Supports DHCP client |
| Management and maintenance | Supports Aolynk APP Management |
