Managed gigabit switches with 2.5G SFP uplinks, PoE+ options and LACP, ACL and QoS for SMB networks.
Island-wide delivery to all 25 districts

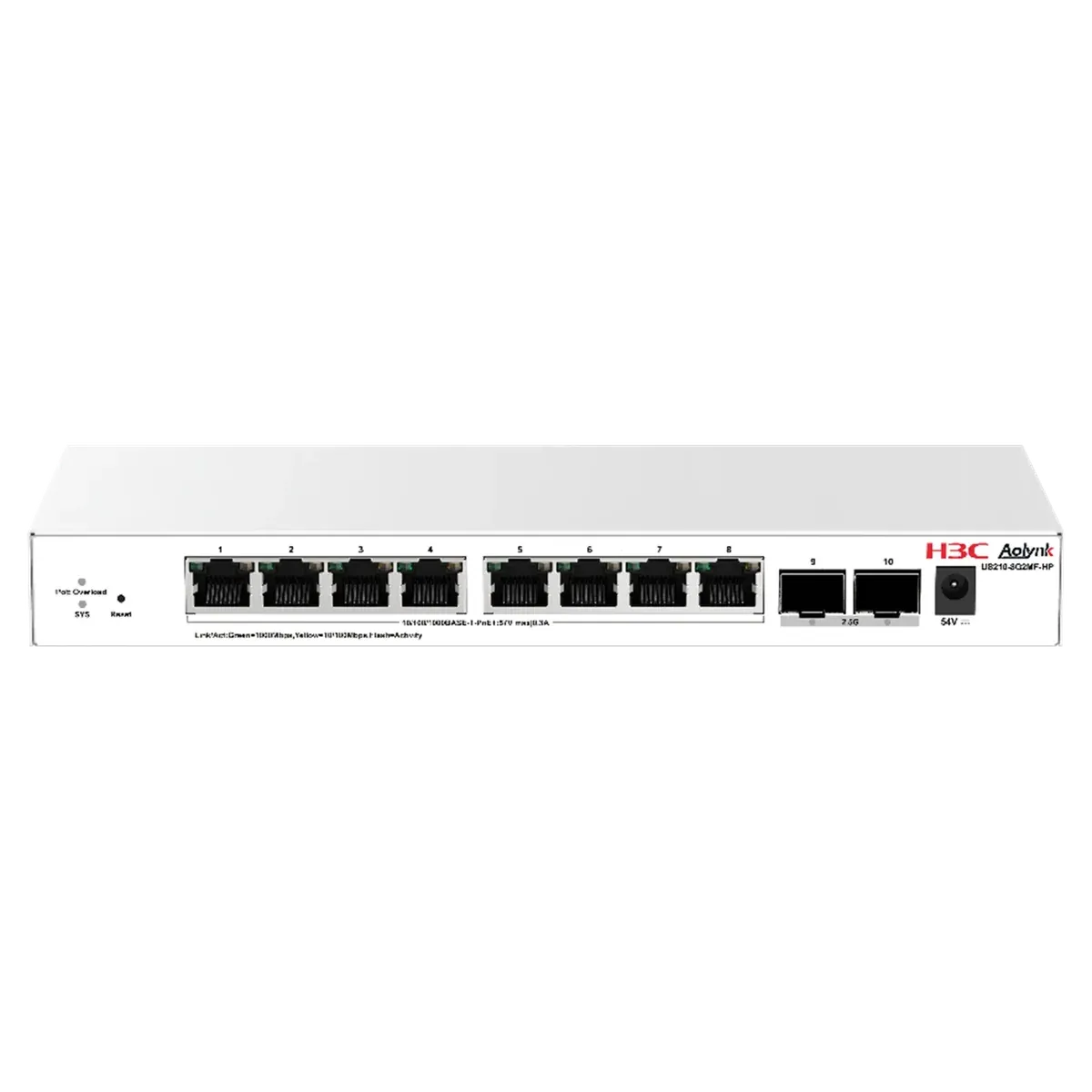

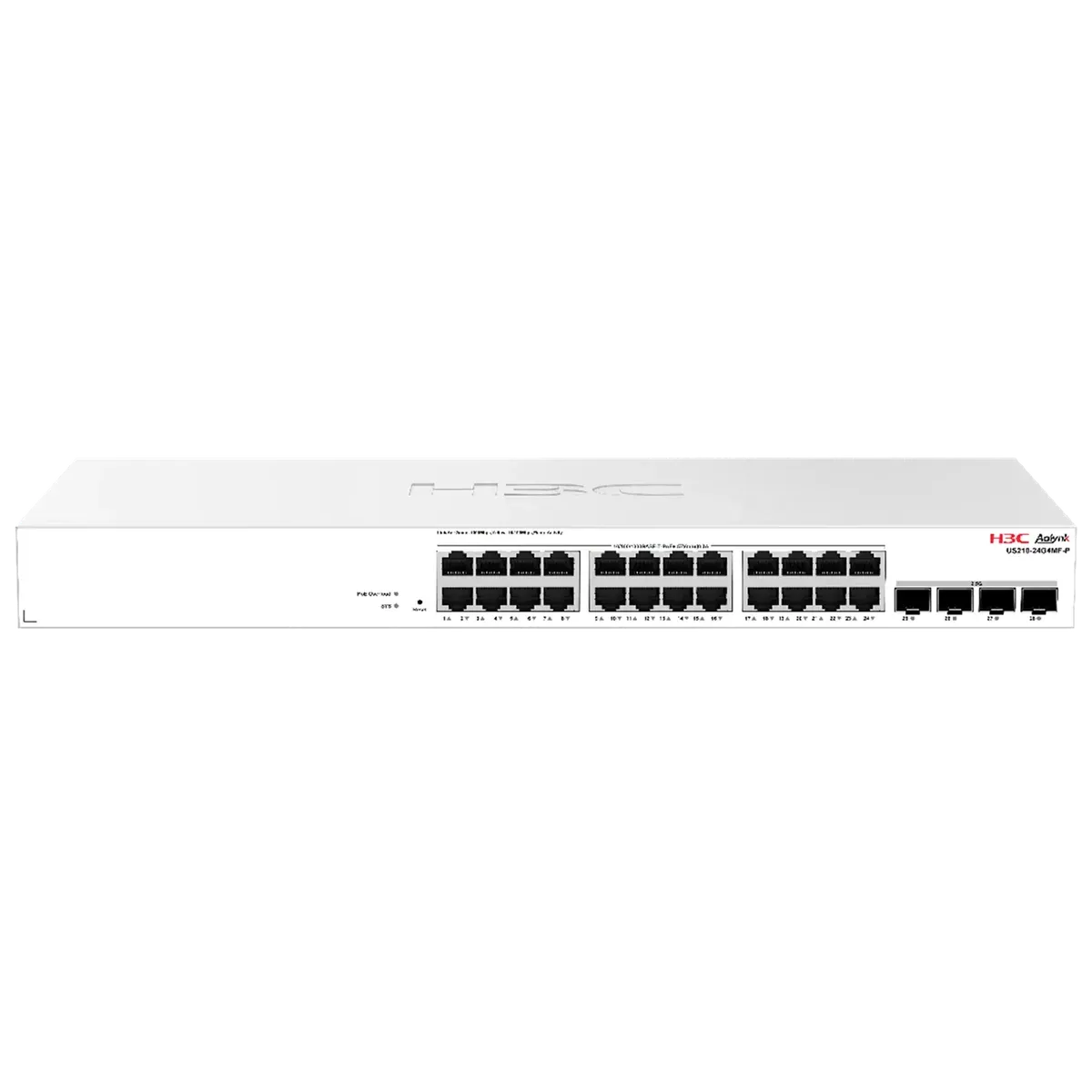

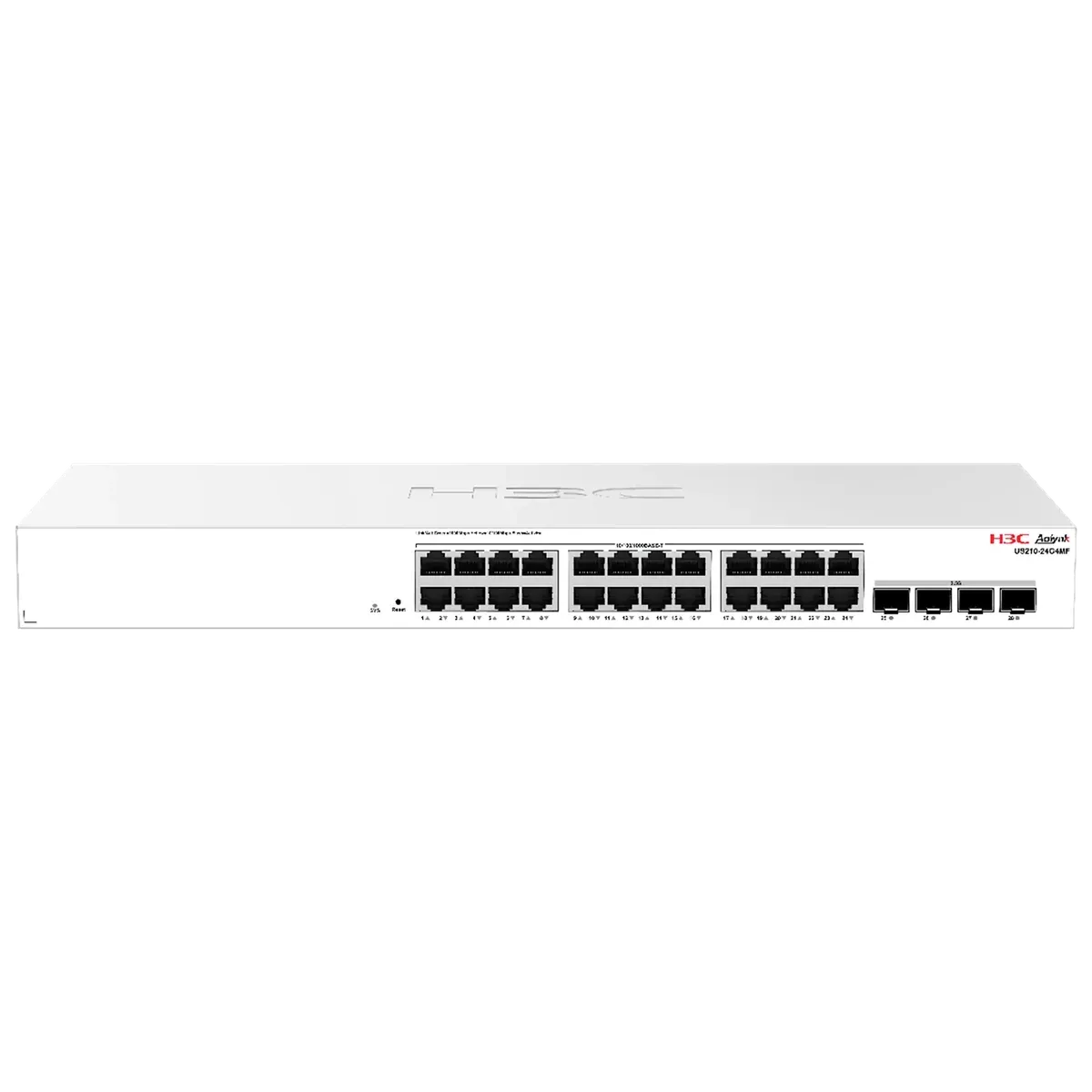

| Models | Aolynk US210-8G2MF-HP, Aolynk US210-24G4MF, Aolynk US210-24G4MF-P, Aolynk US210-24G4MF-HP |
|---|---|
| Dimensions (H × W × D) | Aolynk US210-8G2MF-HP: 235×105×27 mm; Aolynk US210-24G4MF: 440×173×43.6 mm; Aolynk US210-24G4MF-P: 440×210×43.6 mm; Aolynk US210-24G4MF-HP: 440×210×43.6 mm |
| Weight | Aolynk US210-8G2MF-HP: ≤0.51kg; Aolynk US210-24G4MF: ≤1.90kg; Aolynk US210-24G4MF-P: ≤2.65kg; Aolynk US210-24G4MF-HP: ≤2.75kg |
| Switching capacity | Aolynk US210-8G2MF-HP: 26Gbps; Aolynk US210-24G4MF: 68Gbps; Aolynk US210-24G4MF-P: 68Gbps; Aolynk US210-24G4MF-HP: 68Gbps |
| Packet Forwarding Rate | Aolynk US210-8G2MF-HP: 19.34Mpps; Aolynk US210-24G4MF: 50.59Mpps; Aolynk US210-24G4MF-P: 50.59Mpps; Aolynk US210-24G4MF-HP: 50.59Mpps |
| Fixed Ports | Aolynk US210-8G2MF-HP: 8x 10/100/1000 Base-T PoE+ copper ports, 2x 1G/2.5G SFP fiber ports; Aolynk US210-24G4MF: 24x 10/100/1000 Base-T copper ports, 4x 1G/2.5G SFP fiber ports; Aolynk US210-24G4MF-P: 24x 10/100/1000 Base-T PoE+ copper ports, 4x 1G/2.5G SFP fiber ports; Aolynk US210-24G4MF-HP: 24x 10/100/1000 Base-T PoE+ copper ports, 4x 1G/2.5G SFP fiber ports |
| MAC address table | 16K |
| Port Lightning Protection | ±6KV |
| Operating Temperature/Storage Temperature | 0ºC～45ºC/-40ºC～70ºC |
| Operating Humidity/Storage Humidity | 10% to 90%/5% to 90% (non-condensing) |
| Certification &Safety | CE、CB、RoHS |
| MTBF | ＞400,000 hours |
| Heat dissipation method | Fanless silent design, natural heat dissipation / Fan cooling |
| Installation method | Desktop, wall-mount / Desktop, Rack, standard mounting ears included for rack installation |
| PoE Power Supply Standard | Aolynk US210-8G2MF-HP: IEEE 802.3af/at; Aolynk US210-24G4MF: Not supported; Aolynk US210-24G4MF-P: IEEE 802.3af/at; Aolynk US210-24G4MF-HP: IEEE 802.3af/at |
| Maximum PoE Power per Port | Aolynk US210-8G2MF-HP: 30W; Aolynk US210-24G4MF: None; Aolynk US210-24G4MF-P: 30W; Aolynk US210-24G4MF-HP: 30W |
| Maximum PoE Power for Overall System | Aolynk US210-8G2MF-HP: 130W; Aolynk US210-24G4MF: None; Aolynk US210-24G4MF-P: 240W; Aolynk US210-24G4MF-HP: 370W |
| Perpetual PoE | Aolynk US210-8G2MF-HP: Supported; Aolynk US210-24G4MF: None; Aolynk US210-24G4MF-P: Supported; Aolynk US210-24G4MF-HP: Supported |
| Fast PoE | Aolynk US210-8G2MF-HP: Supported; Aolynk US210-24G4MF: None; Aolynk US210-24G4MF-P: Supported; Aolynk US210-24G4MF-HP: Supported |
| PoE Watchdog | Aolynk US210-8G2MF-HP: Supported; Aolynk US210-24G4MF: None; Aolynk US210-24G4MF-P: Supported; Aolynk US210-24G4MF-HP: Supported |
| Non-standard PoE Power Supply | Aolynk US210-8G2MF-HP: Supported; Aolynk US210-24G4MF: None; Aolynk US210-24G4MF-P: Supported; Aolynk US210-24G4MF-HP: Supported |
| PoE Power Supply Precedence | Aolynk US210-8G2MF-HP: Supported; Aolynk US210-24G4MF: None; Aolynk US210-24G4MF-P: Supported; Aolynk US210-24G4MF-HP: Supported |
| Static power consumption | Aolynk US210-8G2MF-HP: 1.7W; Aolynk US210-24G4MF: 4.6W; Aolynk US210-24G4MF-P: 6W; Aolynk US210-24G4MF-HP: 6W |
| Full Load Power Consumption | Aolynk US210-8G2MF-HP: 137W; Aolynk US210-24G4MF: 16.1W; Aolynk US210-24G4MF-P: 253W; Aolynk US210-24G4MF-HP: 387W |
| Input Voltage | Aolynk US210-8G2MF-HP: 90V～264V AC; Aolynk US210-24G4MF: 90-264V AC; Aolynk US210-24G4MF-P: 90-264V AC; Aolynk US210-24G4MF-HP: 90-264V AC |
| VLAN | Supports IEEE 802.1Q VLAN |
| Ethernet | Supports Static Link Aggregation |
| QoS | Supports Port Flow Control |
