Smart-managed Layer 3 gigabit switches with 1G or 10G uplinks for SMB access and small cores.
Island-wide delivery to all 25 districts

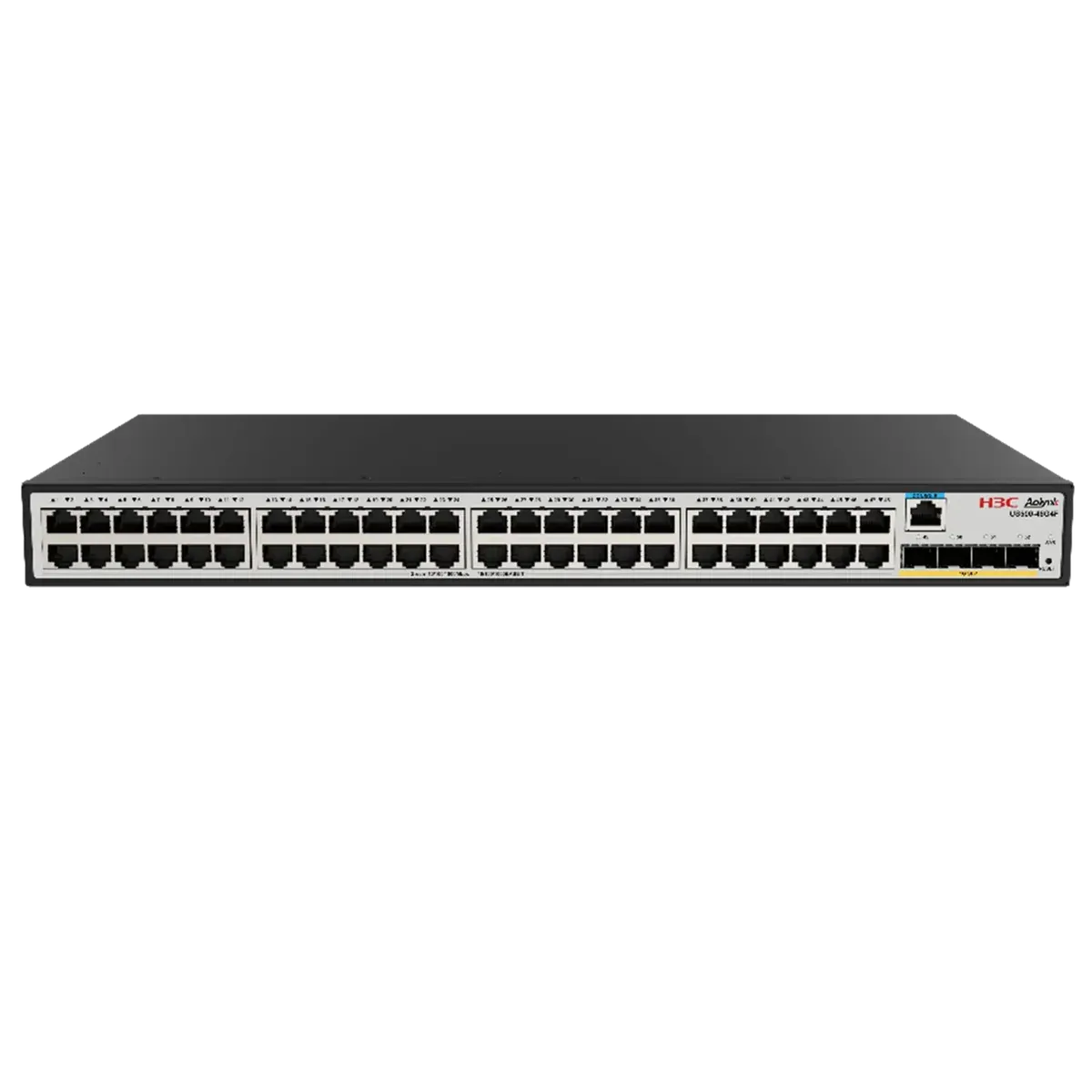

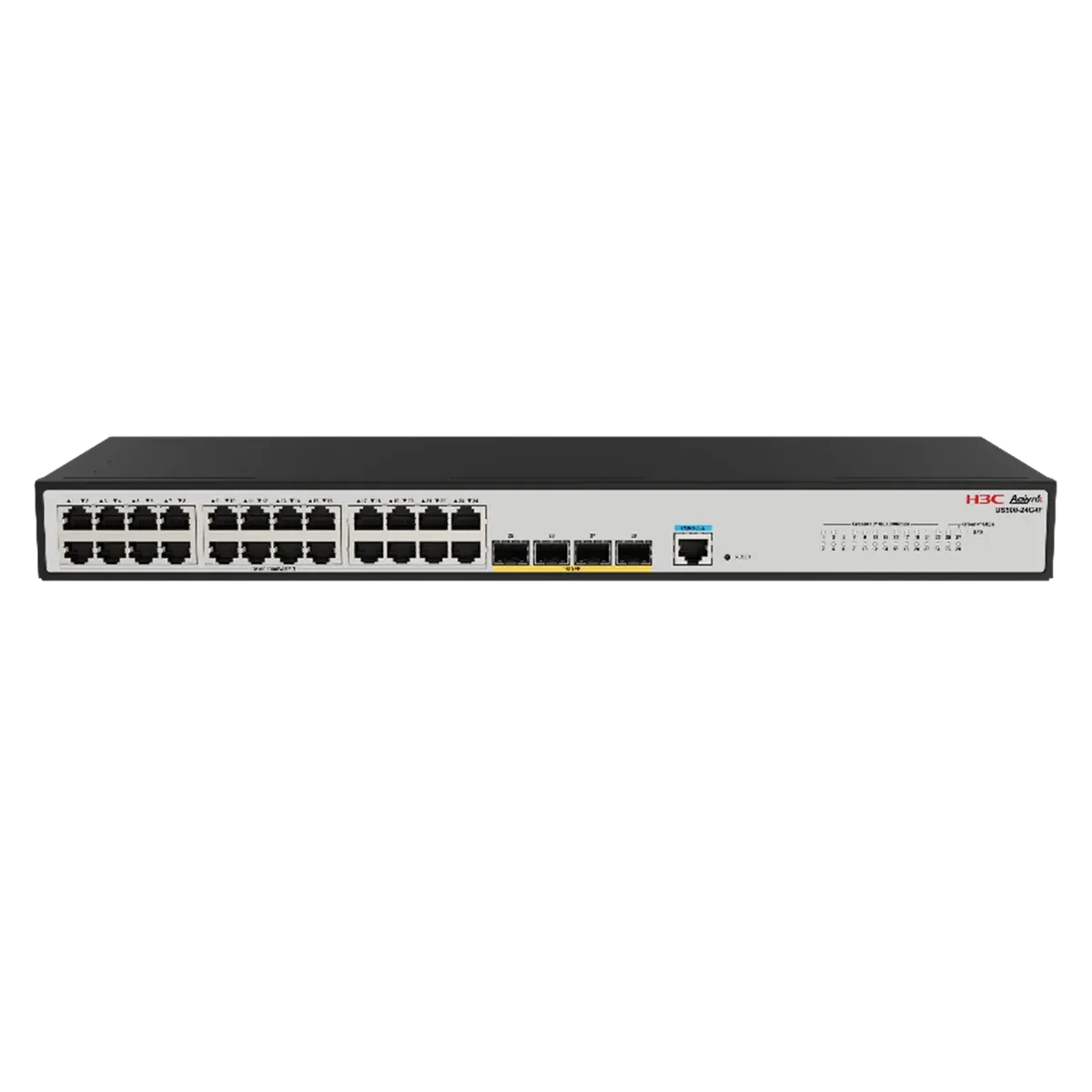

| Models | US500-24G4XF, US500-48G4XF, US500-24G4F, US500-48G4F |
|---|---|
| Switching capacity | US500-24G4XF: 128Gbps; US500-48G4XF: 176Gbps; US500-24G4F: 56Gbps; US500-48G4F: 104Gbps |
| Forwarding capacity | US500-24G4XF: 95.232Mpps; US500-48G4XF: 130.944Mpps; US500-24G4F: 41.7Mpps; US500-48G4F: 77.4Mpps |
| Flash/SDRAM | 256MB/512MB |
| Dimensions (W × D × H) | US500-24G4XF: 440×160×43.6 mm; US500-48G4XF: 440×260×43.6 mm; US500-24G4F: 440×230×43.6 mm; US500-48G4F: 440×260×43.6 mm |
| Weight | US500-24G4XF: ≤ 2.4 kg; US500-48G4XF: ≤ 3.4 kg; US500-24G4F: ≤ 2.1 kg; US500-48G4F: ≤ 3.1 kg |
| Management port | 1 console port |
| Networking interface | US500-24G4XF: 24*10/100/1000TX+ 4*SFP+; US500-48G4XF: 48*10/100/1000TX+ 4*SFP+; US500-24G4F: 24×10/100/1000TX+4×SFP; US500-48G4F: 48×10/100/1000TX+4×SFP |
| Maximum stacking num | US500-24G4XF: 4 (only with XF); US500-48G4XF: 4 (only with XF); US500-24G4F: 4 (only with F); US500-48G4F: 4 (only with F) |
| Port Surge | 6KV |
| Input voltage | AC: 90-264V, 47-63Hz. / AC: 180V~264V |
| Total power consumption | US500-24G4XF: MIN: AC: 16W MAX: AC: 23W; US500-48G4XF: MIN: AC: 32W MAX: AC: 44W; US500-24G4F: MIN: AC: 15W MAX: AC: 21W; US500-48G4F: MIN: AC: 27W MAX: AC: 40W |
| Fan number | US500-24G4XF: Fan-less; US500-48G4XF: 1; US500-24G4F: Fan-less; US500-48G4F: 1 |
| MTBF(Year) | US500-24G4XF: 206.659; US500-48G4XF: 110.608; US500-24G4F: 239.783; US500-48G4F: 53.723 |
| MTTR(Hour) | 1 |
| Operating temperature | -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage temperature | -40℃ ~ 70℃ |
| Relative humidity (non-condensing) | 5% RH to 95% RH, non-condensing |
| Models | US500-24G4XF-HP, US500-48G4XF-HP, US500-8G24F4XF |
| Port aggregation | GE/10GE port aggregation Dynamic aggregation Static aggregation Cross-device aggregation |
| Broadcast/Multicast/Unicast storm suppression | Storm suppression based on port bandwidth percentage Storm suppression based on PPS Storm suppression based on BPS Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression |
| Traffic control | 802.3x traffic control and half-duplex backpressure |
| IRF2 | Distributed device management, distributed link aggregation, and distributed resilient routing Stacking through standard Ethernet interfaces Local device stacking and remote device stacking |
| MAC address table | Static MAC address Blackhole MAC address Setting the maximum number of port MAC addresses to be learned |
| VLAN | Port-based VLAN MAC-based VLAN Protocol-based VLAN QinQ and selective QinQ VLAN mapping Voice VLAN MVRP |
| DHCP | DHCP Client DHCP Snooping DHCP Snooping option82 DHCP Relay DHCP Server DHCP auto-config |
| VLAN interface | Both IPv4 and IPv6 supported |
| ARP | ARP Detection ARP speed limit |
