H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request
Dual-mode GPON/EPON ONUs that auto-detect the OLT type, with gigabit Ethernet, PoE+ and Wi-Fi 7 or voice options for FTTH and FTTR.
Island-wide delivery to all 25 districts
| Models | Dimensions (mm) (Width × Depth × Height), Weight, Power consumption, NNI, UNI, POE, Power supply |
|---|---|
| EGT308-H-T7W | Dimensions (mm) (Width × Depth × Height): 165*160*35; Weight: <0.4kg; Power consumption: <18W; NNI: 1*GPON/EPON(1*SC); UNI: 8*GE + 1*POTS + 2.4GHz/5GHz dual-band Wi-Fi 7; POE: /; Power supply: 12V DC |

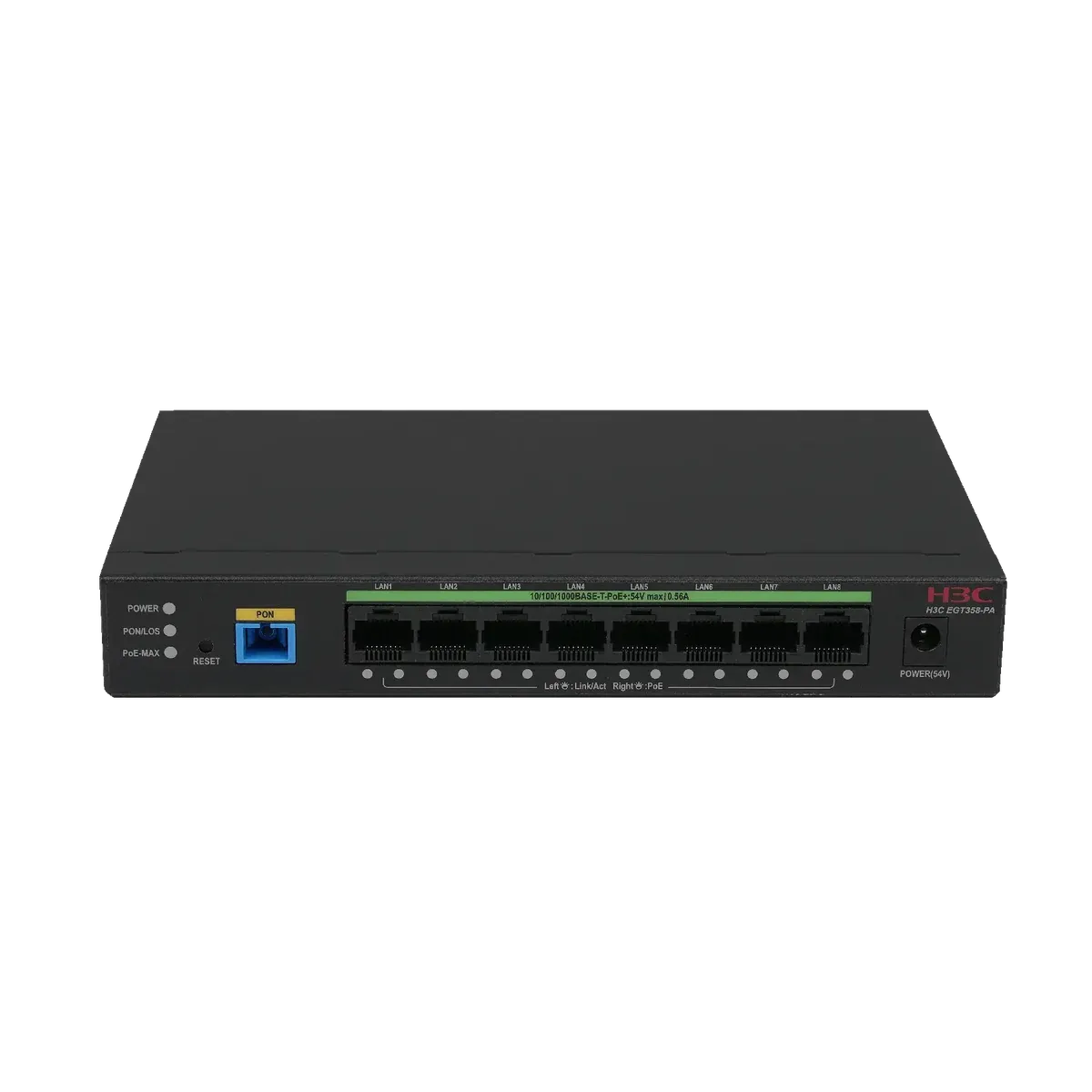

| EGT358-PA | Dimensions (mm) (Width × Depth × Height): 230×160×44; Weight: <1.35kg; Power consumption: <132W; NNI: 1*GPON/EPON (1*SC); UNI: 8*GE（PoE+）; POE: Single port maximum 30W, overall system maximum 120W; Power supply: 54V DC |
| ONU authentication | GPON ONU authentication: SN authentication, Password authentication, SN+Password authentication, LOID authentication, etc. |
| PON | Supports dynamic bandwidth allocation (DBA) |
| VLAN | Support CTC standard VLAN mode |
| Security | Support for Type B/Type C single/dual homing service protection |
| Multicast | Support IGMP Snooping multicast function |
| QoS | Support Ethernet traffic classification and priority marking |
| Port management | Support Ethernet port status management |
| Management maintenance | Supported Web management |
| Basic information | 802.11a/b/g/n/ac/ac wave2/ax/be(2.4G&5G) |
| Frequency and MIMO | 5GHz, 2×2:2, 2.882Gbps 2.4GHz, 2×2:2, 0.688Gbps |
| Bandwidth | 160MHz |
| WMM (Wi-Fi Multi Media), multiple SSID, WPS | Support |
| Beamforming | Support |
| DL OFDMA | Support |
| DL MU-MIMO | Support |
| 1024QAM | Support |
| WPA3 | Support |
| Antenna type | Built-in omni-directional antenna |
| Antenna gain | 5GHz peak gain: 3.0dBi 2.4GHz peak gain: 3.0dBi Note: The equivalent antenna gain is 3.0dBi in 5GHz and 3.0dBi in 2.4GHz |
| Frequencybands | 2.400 to 2.4835GHz ISM 5.150 to 5.250GHz U-NII-1 5.250 to 5.350GHz U-NII-2A 5.470 to 5.725GHz U-NII-2C 5.725 to 5.850GHz U-NII-3/ISM Note: The available bands and channels are dependent on the configured regulatory domain (country) |
| Modulation technology | 802.11b: Direct-sequence spread spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax/be: Orthogonal frequency-division multiple access (OFDMA) |
| Modulation mode | 11b: BPSK, QPSK, CCK 11a/g/n: BPSK, QPSK, 16QAM, 64QAM 11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM 11be: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM |
| Data rates (Mbps) | 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (NSS = 1 to 2, HT20 to HT40) 802.11ac: 6.5 to 1733 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT160) 802.11ax: 7.3 to 2402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160) 802.11be: 7.3 to 2882 (MCS0 to MCS13, NSS = 1 to 2, EHT20 to EHT160) |
| Maximum transmit power | 5G: 22 dBm 2.4G: 24 dBm Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations Note: To comply with spectrum regulatory requirements across different regions, the 6GHz RF (Radio Frequency) function of the device will be in a disabled state in countries/regions where the use of the 6GHz band is prohibited. Once the policy for 6GHz band usage in such countries/regions is implemented, this function can be officially activated in conjunction with future software update processes, ensuring the device operation |
| Adjustable power granularity | Configurable in increments of 1dBm |
