10G ONUs that auto-switch between XGS-PON and symmetric 10G-EPON, with gigabit ports, Wi-Fi 7, voice and PoE+ variants.
Island-wide delivery to all 25 districts
| Models | Dimensions (mm) (Width × Depth × Height), Weight, Power consumption, NNI, UNI, POE, Power supply, Ambient temperature |
|---|---|

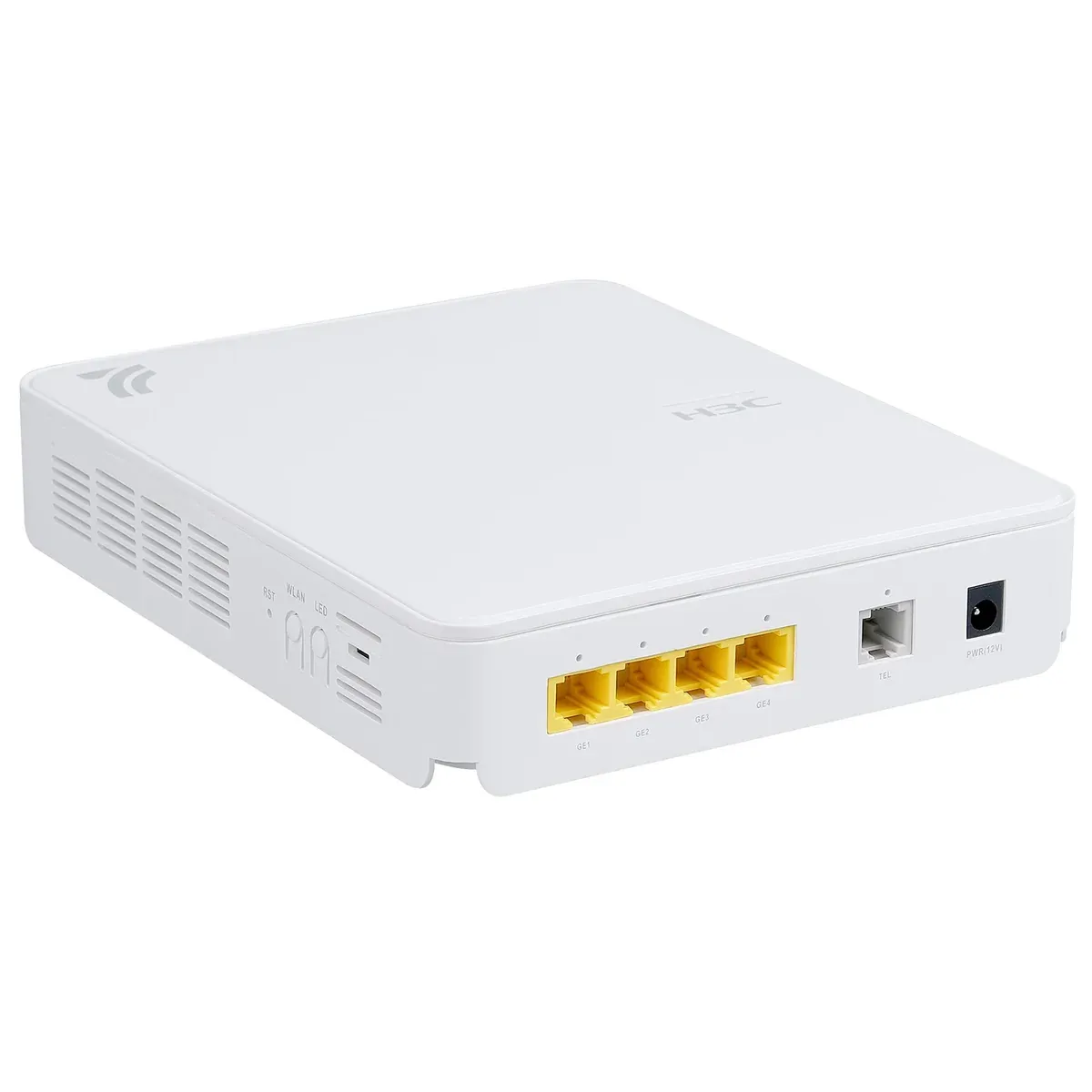

| EGT904-H-T7WF | Dimensions (mm) (Width × Depth × Height): 200*165*36; Weight: <1Kg; Power consumption: <18W; NNI: 1*XGS-PON/10G-EPON（SC）; UNI: 4GE+1POTS+WIFI7; POE: /; Power supply: 12V DC; Ambient temperature: -5～45℃ |

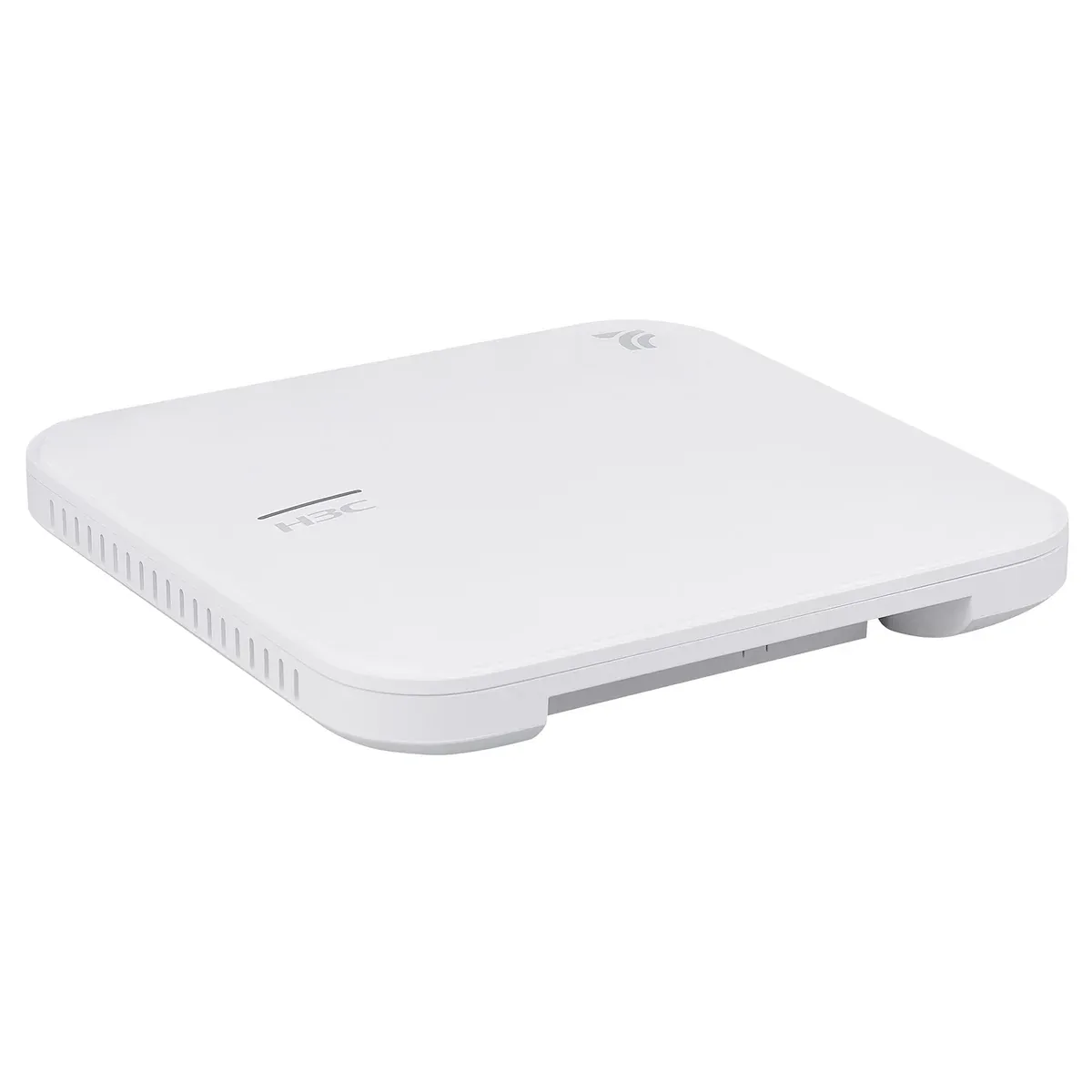

| EGT901C-H-7WF | Dimensions (mm) (Width × Depth × Height): 200*200*35; Weight: <1Kg; Power consumption: <18W; NNI: 1*XGS-PON/10G-EPON（SC）; UNI: 1GE+1POTS+WIFI7; POE: /; Power supply: 48V DC; Ambient temperature: -5～45℃ |

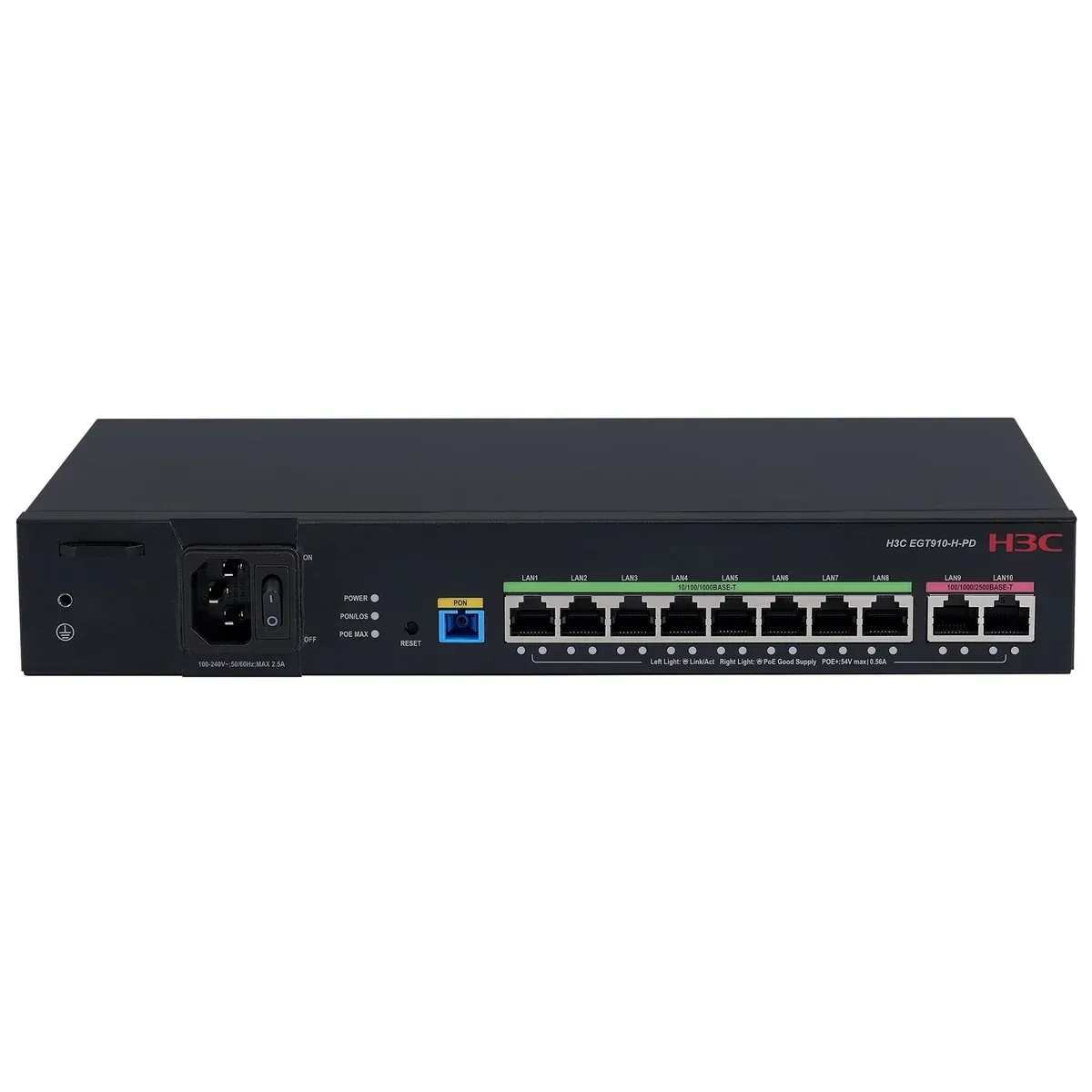

| EGT910-H-PD | Dimensions (mm) (Width × Depth × Height): 300mm*220mm*44mm; Weight: <4.5Kg; Power consumption: <150W; NNI: 1*XGS-PON/10G-EPON（SC）; UNI: 2*2.5GE（PoE+）+8*GE（PoE+）; POE: Maximum 30W per port, overall system maximum 120W; Power supply: 54V DC; Ambient temperature: -10～55℃ |
| Working environment humidity | 5% to 95% (non-condensing) |
| PON | Dynamic Bandwidth Allocation (DBA) |
| Ethernet | Supports VLAN division and VLAN transparent transmission |
| Multicast | Supports IGMP-Snooping and MLD Snooping multicast functions |
| QoS | Support Ethernet traffic classification and priority marking |
| Security | Supports Type B/Type C protection |
| Management maintenance | Supports Ethernet port isolation and rate limiting |
| Models | EGT904-H-T7WF, EGT901C-H-T7WF |
| Basic information | 802.11a/b/g/n/ac/ac wave2/ax/be(2.4G&5G) |
| Frequency and MIMO | 5GHz, 2×2:2, 2.882Gbps 2.4GHz, 2×2:2, 0.688Gbps |
| Bandwidth | 160MHz |
| WMM (Wi-Fi Multi Media), multiple SSID, WPS | Support |
| Beamforming | Support |
| DL OFDMA | Support |
| DL MU-MIMO | Support |
| 1024QAM | Support |
| WPA3 | Support |
| Antenna type | Built-in omni-directional antenna |
| Antenna gain | EGT904-H-T7WF: 5GHz peak gain: 3.0dBi 2.4GHz peak gain: 3.0dBi Note: The equivalent antenna gain is 3.0dBi in 5GHz and 3.0dBi in 2.4GHz; EGT901C-H-T7WF: 5GHz peak gain: 5.0dBi 2.4GHz peak gain: 3.0dBi Note: The equivalent antenna gain is 5.0dBi in 5GHz and 3.0dBi in 2.4GHz |
| Frequency bands | 2.400 to 2.4835GHz ISM 5.150 to 5.250GHz U-NII-1 5.250 to 5.350GHz U-NII-2A 5.470 to 5.725GHz U-NII-2C 5.725 to 5.850GHz U-NII-3/ISM Note: The available bands and channels are dependent on the configured regulatory domain (country) |
| Modulation technology | 802.11b: Direct-sequence spread spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax/be: Orthogonal frequency-division multiple access (OFDMA) |
| Modulation mode | 11b: BPSK, QPSK, CCK 11a/g/n: BPSK, QPSK, 16QAM, 64QAM 11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM 11be: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM |
| Data rates (Mbps) | 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (NSS = 1 to 2, HT20 to HT40) 802.11ac: 6.5 to 1733 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT160) 802.11ax: 7.3 to 2402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160) 802.11be: 7.3 to 2882 (MCS0 to MCS13, NSS = 1 to 2, EHT20 to EHT160) |
| Maximum transmit power | 5G: 22 dBm 2.4G: 24 dBm Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations Note: To comply with spectrum regulatory requirements across different regions, the 6GHz RF (Radio Frequency) function of the device will be in a disabled state in countries/regions where the use of the 6GHz band is prohibited. Once the policy for 6GHz band usage in such countries/regions is implemented, this function can be officially activated in conjunction with future software update processes, ensuring the device operation |
