H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

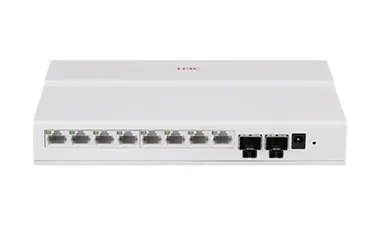

Compact gigabit managed switches with PoE+ and fibre uplinks for hotels, schools and SMEs that need secure, easy-to-run access.
Island-wide delivery to all 25 districts
| Models | ES4200-4P2RS, ES4200-8T2RS, ES4200-8P2RS, ES4200-16T2RX, ES4200-16P2RS |
|---|---|
| Switching capacity | ES4200-4P2RS: 15Gbps; ES4200-8T2RS: 20Gbps; ES4200-8P2RS: 20Gbps; ES4200-16T2RX: 36Gbps; ES4200-16P2RS: 36Gbps |
| Packet forwarding rate | ES4200-4P2RS: 12Mpps; ES4200-8T2RS: 15Mpps; ES4200-8P2RS: 15Mpps; ES4200-16T2RX: 27Mpps; ES4200-16P2RS: 27Mpps |
| 10/100/1000 Base-T port | ES4200-4P2RS: 4; ES4200-8T2RS: 8; ES4200-8P2RS: 8; ES4200-16T2RX: 16; ES4200-16P2RS: 16 |
| SFP port | ES4200-4P2RS: 2; ES4200-8T2RS: 2; ES4200-8P2RS: 2; ES4200-16T2RX: -; ES4200-16P2RS: 2 |
| SFP Plus port | ES4200-4P2RS: -; ES4200-8T2RS: -; ES4200-8P2RS: -; ES4200-16T2RX: 2; ES4200-16P2RS: - |
| PoE+ | ES4200-4P2RS: Y; ES4200-8T2RS: -; ES4200-8P2RS: Y; ES4200-16T2RX: -; ES4200-16P2RS: Y(8 ports) |
| Copper port features | Half-duplex, full-duplex, auto-negotiation |
| Ethernet functions | LLDP |
| VLAN | 802.1Q ( up to 4K VLAN) |
| IP routing | Static routing |
| DHCP | DHCP Relay |
| Broadcast | IGMP V1/V2/V3 Snooping |
| QoS | Diff-Serv QoS |
| ACL | ACL on layer 2, layer 3 and layer 4 |
| IPv6 | IPv6 static routing, dual-stack |
| Reliability | Hot patch, in-service patch upgrade |
| Security | Hierarchical user management and password protection |
| System management | Console/AUX Modem/Telnet/SSH2.0/CLI |
| Environment temperature | Operating temperature：-5℃~45℃ |
| Environment humidity | Operating humidity：5%~95% , non-condensing |
| Environment protection | RoHs, EEE |
| Power consumption | ES4200-4P2RS: MIN: Adapter: 2.5W PoE input: 2.8W MAX: Adapter: 64.4W PoE input: 65.6W; ES4200-8T2RS: MIN: Adapter: 3W PoE input: 4W MAX: Adapter: 6W PoE input: 7W; ES4200-8P2RS: MIN: Adapter: 4W PoE input: 4W MAX: Adapter: 133W PoE input: 77W; ES4200-16T2RX: MIN: Adapter: 6.6W PoE input: 7.8W MAX: Adapter: 16.2W PoE input: 16.7W; ES4200-16P2RS: MIN: Adapter: 4.9W PoE input: 5.4W MAX: Adapter: 136.9W PoE input: 75.6W |
| MTBF(Year) | ES4200-4P2RS: 99.61; ES4200-8T2RS: 96.47; ES4200-8P2RS: 69.74; ES4200-16T2RX: 52.98; ES4200-16P2RS: 62.58 |
| MTTR(Hour) | 1 |
| Weight | ES4200-4P2RS: ≤0.4kg; ES4200-8T2RS: ≤0.6kg; ES4200-8P2RS: ≤0.6kg; ES4200-16T2RX: ≤0.8kg; ES4200-16P2RS: ≤1.2kg |
| Input voltage range | AC: 90V～264V AC，47/63Hz；(Adapter) DC: 44V~57V; |
| Dimensions (W × D x H) | ES4200-4P2RS: 170*135*35mm; ES4200-8T2RS: 210*135*35mm; ES4200-8P2RS: 210*135*35mm; ES4200-16T2RX: 295*90*27mm; ES4200-16P2RS: 200*190*44mm |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
