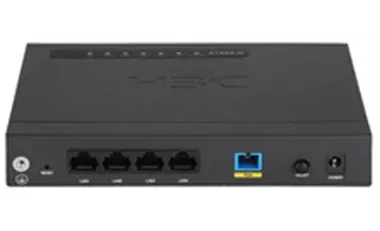

H3C ET900 Series 10G PON ONU

Name: H3C ET900 Series 10G PON ONU
Brand: H3C
SKU: H3C-ET900

Model: ET900Series: ET900

Corridor-side XGS-PON/10G-EPON ONUs for fibre-to-the-building networks, with gigabit Ethernet and PoE+ for APs, phones and cameras.

Price on Request

Island-wide delivery to all 25 districts

Product Name	Size(mm) (WxDxH) / Weight / Power Consumption / PON ports / User-Side Interfaces / PoE / Power Supply / Operating Temperature
ET904-H	175x125x28 / <1Kg / <6W / 1XGS-PON/10G-EPON / 4GE / / / 12V DC / -10～55℃
ET904-H-P	280x170x43.6 / <2Kg / <80W / 1XGS-PON/10G-EPON / 4GE（PoE+） / Max. 30W per port, Max. 60W whole device / 100-240V AC / -10～55℃
EGT908-H	280x170x43.6 / <1.4Kg / <25W / 1XGS-PON/10G-EPON / 8GE / / / 12V DC / -10～50℃
ET908-H-PQ	280x170x43.6 / <2Kg / <150W / 1XGS-PON/10G-EPON / 8GE（PoE+） / Max. 30W per port, Max. 120W whole device / 100-240V AC / -10～45℃
ET916-H-A	28017043.6 / <1.5Kg / <12W / 1XGS-PON/10G-EPON / 16GE / / / 100-240V AC / -10～55℃
ET924-H-POE	44026044 / <4.5Kg / <420W / 1XGS-PON/10G-EPON / 24GE（PoE+） / Max. 30W per port, Max. 370W whole device / 100-240V AC / -10～55℃
EGT924-H-R	28017043.6 / ＜1.6Kg / ＜30W / 2XGS-PON/10G-EPON（SFP） / 24GE+2*10GE(SFP+) / / / 12V DC / -10 ~ 55℃
PON	Dynamic Bandwidth Allocation (DBA)
Ethernet	VLAN Partitioning, VLAN Transparent Transmission
Multicast	IGMP-Snooping, MLD Snooping Multicast Function
QoS	Supports Ethernet Traffic Classification and Priority Tagging
Management and Maintenance	Supports Ethernet Port Isolation, Rate Limiting
Part numbers	ET904-H, ET904-H-P, EGT908-H, ET908-H-PQ, ET916-H-A, ET924-H-POE, EGT924-H-R
