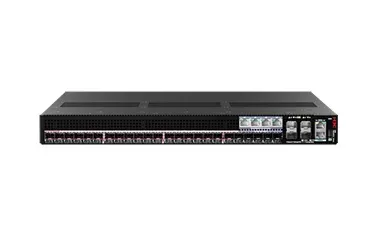

Layer 3 multi-gigabit switches for converged optical-electrical campus networks, with SmartMC management, IRF2 and MACsec.
Island-wide delivery to all 25 districts
| Models | FS5500V2-24UXS6Y-EI, FS5500V2-48UXS4Y2Q-EI, FS5500V2-24UX2C-EI, FS5500V2-24PMS4X-EI-Q |
|---|---|
| CPU | Dual Core, 1.2GHz |
| Flash/SDRAM | 4G/2G |
| Switching Capacity | 2.4Tbps |
| Latency (64byte/µs) | GE/2.5G < 5µs 10G/25G < 3µs 40G/100G < 1.2µs |
| Port Switching Capacity | FS5500V2-24UXS6Y-EI: 600Gbps; FS5500V2-48UXS4Y2Q-EI: 564Gbps; FS5500V2-24UX2C-EI: 880Gbps; FS5500V2-24PMS4X-EI-Q: 188Gbps |
| Packet Forwarding Rate | FS5500V2-24UXS6Y-EI: 447Mpps; FS5500V2-48UXS4Y2Q-EI: 420Mpps; FS5500V2-24UX2C-EI: 655Mpps; FS5500V2-24PMS4X-EI-Q: 140Mpps |
| Dimensions (W×D×H) (unit: mm ) | 440×400×44 / 440×320×44 |
| Weight | FS5500V2-24UXS6Y-EI: ≤7.2kg; FS5500V2-48UXS4Y2Q-EI: ≤7.6kg; FS5500V2-24UX2C-EI: ≤7.2kg; FS5500V2-24PMS4X-EI-Q: ≤6.5kg |
| Console Port | 1 |
| Ethernet Port for Management | 10/100/1000Base-T electrical port: 1 |
| USB Port | 1 |
| 100/1000 SFP | FS5500V2-24UXS6Y-EI: -; FS5500V2-48UXS4Y2Q-EI: 42; FS5500V2-24UX2C-EI: -; FS5500V2-24PMS4X-EI-Q: 4 (include 4 combo 10/100/1000Base-T ports) |
| 1G/2.5G SFP | FS5500V2-24UXS6Y-EI: 24 (12 ports can be upgraded to 10G by license); FS5500V2-48UXS4Y2Q-EI: -; FS5500V2-24UX2C-EI: -; FS5500V2-24PMS4X-EI-Q: 20 |
| 1G/10G SFP+ | FS5500V2-24UXS6Y-EI: -; FS5500V2-48UXS4Y2Q-EI: 6; FS5500V2-24UX2C-EI: 24; FS5500V2-24PMS4X-EI-Q: 4 |
| 10G/25G SFP28 | FS5500V2-24UXS6Y-EI: 6; FS5500V2-48UXS4Y2Q-EI: 4; FS5500V2-24UX2C-EI: -; FS5500V2-24PMS4X-EI-Q: - |
| 40G QSFP+ | FS5500V2-24UXS6Y-EI: -; FS5500V2-48UXS4Y2Q-EI: 2; FS5500V2-24UX2C-EI: -; FS5500V2-24PMS4X-EI-Q: - |
| 40G/100G QSFP28 | FS5500V2-24UXS6Y-EI: -; FS5500V2-48UXS4Y2Q-EI: -; FS5500V2-24UX2C-EI: 2 (default is 40G, can be upgraded to 100G by license); FS5500V2-24PMS4X-EI-Q: - |
| PoE | PoE(802.3af)/PoE+(802.3at)/ PoE++(802.3bt) Maximum 100W single ports / 2.5G SFP and GE Base-T ports: PoE(802.3af)/PoE+(802.3at), Maximum 30W single ports GE SFP ports: PoE(802.3af)/PoE+(802.3at)/PoE++(802.3bt), Maximum 100W single ports |
| Power supply | 2 modular power supplies / build-in power supply |
| Fan | 2 modular fans / fanless, quiet |
| Input Voltage | AC: Rated voltage range: 100 to 240V AC: 50/60Hz Maximum voltage range: 90V～290V AC, 47～63Hz HVDC: Rated voltage: 240V DC Maximum voltage range: 180V～320V DC / AC: Rated voltage range: 100 to 240V AC: 50/60Hz Maximum voltage range: 90V～290V AC, 47～63Hz |
| 80PLUSPlatinum | Y(80 PLUS Platinum） |
| Power Consumption | FS5500V2-24UXS6Y-EI: Single AC: 1639W (POE: 1450W) Dual AC:2639W (POE: 2400W); FS5500V2-48UXS4Y2Q-EI: Single AC: 1653W (POE: 1450W) Dual AC:3152W (POE: 2850W); FS5500V2-24UX2C-EI: Single AC: 1620W (POE: 1450W) Dual AC:2626W (POE: 2400W); FS5500V2-24PMS4X-EI-Q: AC: 478W (POE:370W) |
| MTBF(Year) | FS5500V2-24UXS6Y-EI: 69.883; FS5500V2-48UXS4Y2Q-EI: 102.087; FS5500V2-24UX2C-EI: 92.283; FS5500V2-24PMS4X-EI-Q: 101.577 |
| MTTR(Hour) | 1 |
| Machine Leakage Current | Meet UL60950-1/EN60950-1/IEC60950-1 /GB4943 standard |
| Working Temperature | -5 ºC to 45 ºC |
