Price on Request

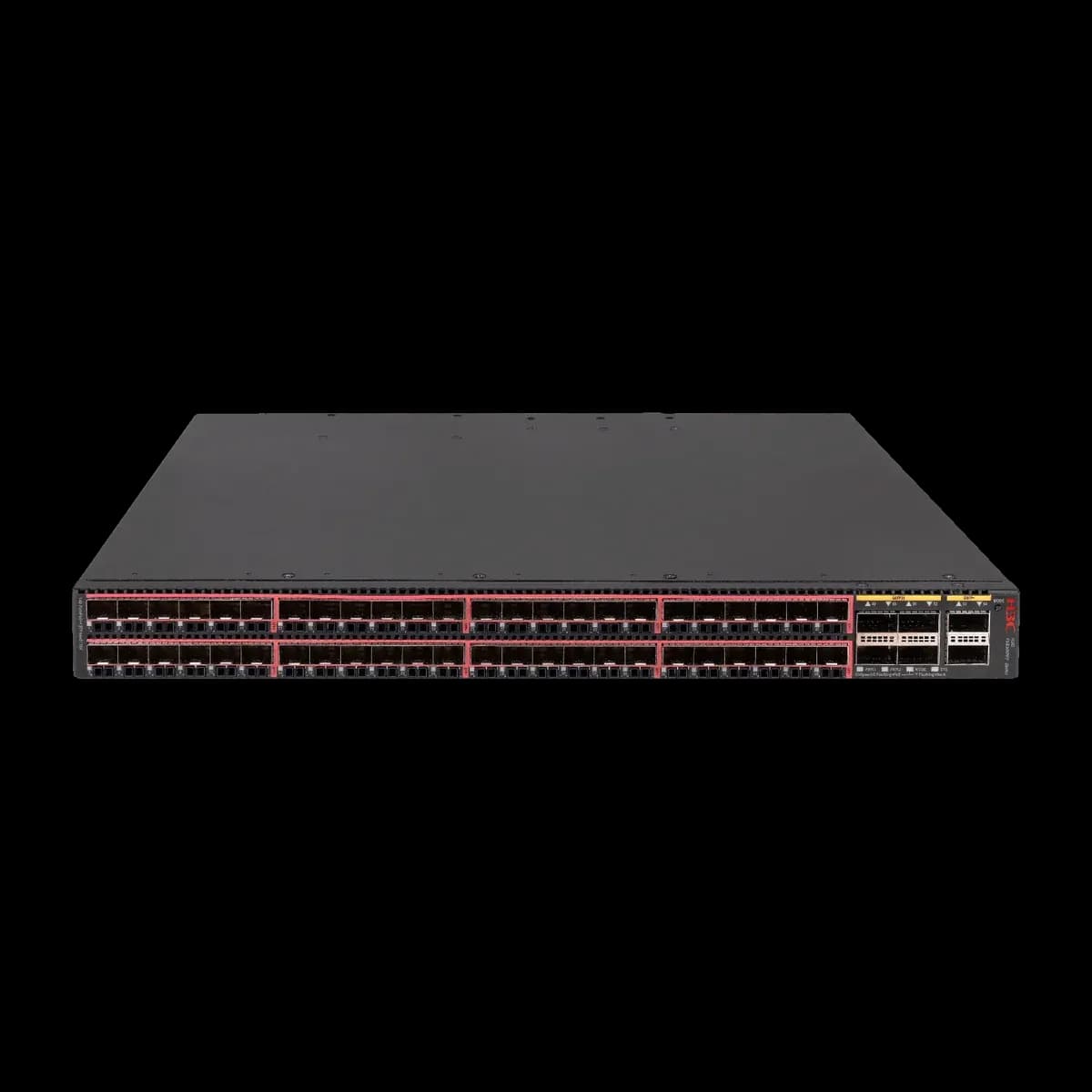

High-density Layer 3 aggregation switches for optical-electrical campus networks, with 1.92 Tbps capacity and SmartMC management.
Island-wide delivery to all 25 districts
| CPU | 1Ghz |
|---|---|
| Flash/SDRAM | 512MB |
| Switching Capacity | 1920G |
| Latency (64byte/µs) | GE/2.5G < 5µs 10G/25G < 3µs 40G/100G < 1.2µs |
| Port Switching Capacity | 1920G |
| Packet Forwarding Rate | 1071.42Mps |
| Dimensions (W×D×H) (unit: mm ) | 440×400×43.6 |
| Weight | ≤8kg |
| Console Port | 1 |
| Ethernet Port for Management | 10/100/1000Base-T electrical port: 1 |
| USB Port | 1 |
| 1/2.5/10GE SFP+ | 48 |
| 40GE QSFP+ | 2 |
| 40/100GE QSFP28 | 4 |
| PoE | PoE(802.3af)/PoE+(802.3at)/ PoE++(802.3bt) Maximum 100W single ports |
| Power supply | 2 modular power supplies |
| Fan | 3 modular fans |
| Input Voltage | AC: Rated voltage range: 100 to 240V AC: 50/60Hz Maximum voltage range: 90V～290V AC, 47～63Hz HVDC: Rated voltage: 240V DC Maximum voltage range: 180V～320V DC |
| 80 PLUS Platinum | Y(80 PLUS Platinum） |
| Power Consumption | Single AC: 1698W (POE: 1400W) Dual AC:3213W (POE: 2800W) |
| MTBF(Year) | 54.94 |
| MTTR(Hour) | 1 |
| Machine Leakage Current | Meet UL60950-1/EN60950-1/IEC60950-1 /GB4943 standard |
| Working Temperature | -5 ºC to 45 ºC |
| Relative Humidity of Working Environment | 5 % to 95 % (non-condensing)) |
| LAN | VLAN ID range 0 to 4095(Total 4096) Access/Trunk/Hybrid VLAN Port-based VLAN MAC-based VLAN IP subnet-based VLAN Protocol-based VLAN IEEE 802.1P(CoS priority) Voice VLAN Vlan mapping Static/Dynamic/Blackhole/Multiport unicast MAC MAC automatic learning and aging Port-based/VLAN-based MAC learning limit MAC filter Port isolation IEEE 802.3x flow control (full duplex) Storm suppression based on port rate percentage PPS -based storm suppression bps -based storm suppression Loop detection MVRP(Multiple VLAN Registration Protocol) GVRP(Generic VLAN Registration Protocol) STP(Spanning tree protocol |
| Ethernet link aggregation | Static aggregation Dynamic aggregation S-MLAG(Simple multichassis link aggregation) 10GE/25G/40GE/100GE port aggregation LACP(Link Aggregation Control Protocol) M-LAG(Multichassis Link Aggregation) |
| IP services | Static/Dynamic/Gratuitous/proxy ARP ARP snooping/fast-reply/direct route advertisement/ping ARP attack detection ARP source suppression Ping, Tracert DHCP(Dynamic Host Configuration Protocol) DHCP Server/relay agent/client/snooping DHCP Option 43, Option 82, and Option 184, DNS(Domain Name System) DDNS(Dynamic Domain Name System) mDNS(Multicast Domain Name System) IRDP(ICMP Router Discovery Protocol) UDP helper ND(Neighbor Discovery) ND snooping/proxy/direct route advertisement/ping DHCPv6 Server/relay agent/client/snooping/guard GRE(Generic Routing Encapsulation) HTTP redirect GRE tunneling I |
| Part numbers | PSR920-54A-B, PSR1600-54A-B, SFP-2.5G-LX10-SM1310-DR-I-F, SFP-XG-LX-SM1310-F |
