H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

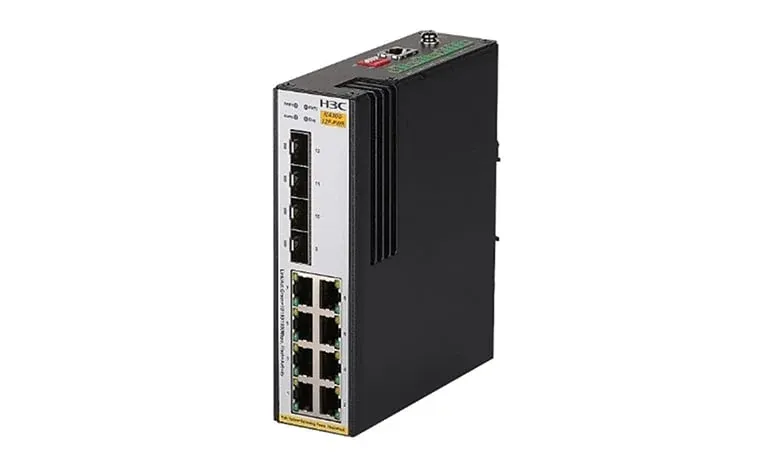

Compact fanless industrial switches with 8 GE and 4 SFP ports for factories, transport and outdoor cabinets.
Island-wide delivery to all 25 districts
| Models | H3C IE4300-12P-AC, H3C IE4300-12P-PWR |
|---|---|
| Switching capacity | 24Gbps |
| Forwarding capacity | 17Mpps |
| Dimensions(W × D × H) | 149*129.8*44mm |
| Weight | H3C IE4300-12P-AC: ≤ 1kg; H3C IE4300-12P-PWR: ≤1kg |
| 10/100/1000Base-T port | 8 |
| SFP port | 4 |
| Input Voltage | H3C IE4300-12P-AC: Rated voltage range: 100 to 240 VAC @ 50 or 60 Hz Max voltage range: 85 to 264 VAC @ 45 to 65 Hz; H3C IE4300-12P-PWR: Rated voltage range: 54 to 57 VDC Max voltage range: 54 to 57 VDC |
| Power consumption | H3C IE4300-12P-AC: MIN: 7W MAX: 12W; H3C IE4300-12P-PWR: MIN: Single DC：11W Dual DC：14W MAX: Single DC：141W Dual DC：144W |
| POE | H3C IE4300-12P-AC: /; H3C IE4300-12P-PWR: Single DC：125W Dual DC：125W |
| Operating temperature | -40 ～ 75℃ |
| Storage temperature | -40 ～ 75℃ |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
| Operating Environment | International Protection Marking IP40 Lightning-proof Ethernet Port Electro Static Discharge Air Discharge: ≥±8.0kV Contact Discharge: ≥±6.0kV |
| Cluster Management | Support |
| Port Aggregation | Support |
| Ethernet Switching | Store-and-Forward |
| MAC Address Table | Static MAC Address |
| VLAN | Port-based VLAN |
| ACL | Time Range-based ACL |
| QoS | Diff-Serv QoS |
| DHCP | DHCP Client |
| IP Services | Static ARP |
| IP Routing | Routed Port |
| Multicast | IGMP v1/v2/v3 Snooping |
| Spanning Tree | STP / RSTP / MSTP |
| Mirroring | Port Mirroring |
| Security | Hierarchical User Management and Password Protection |
