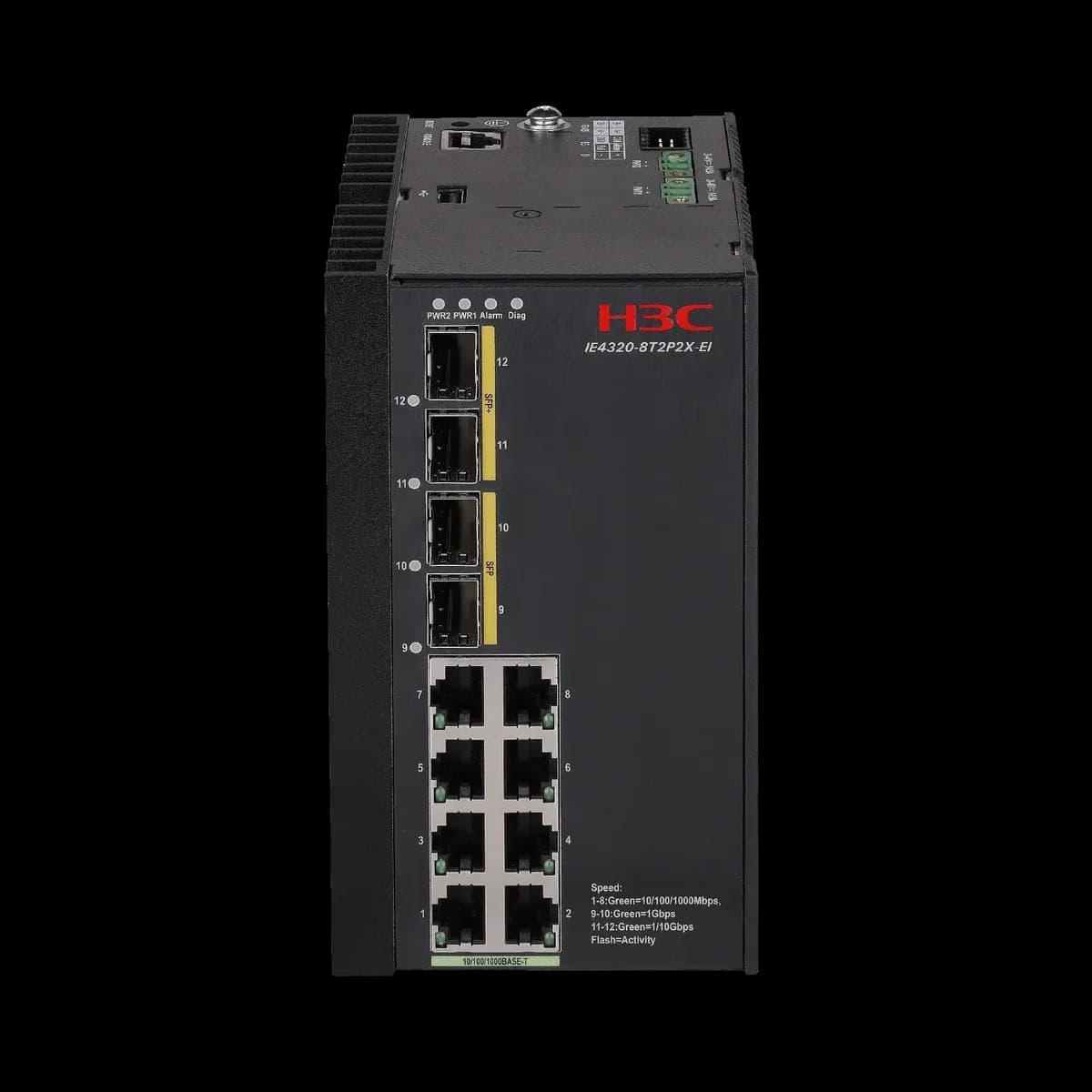

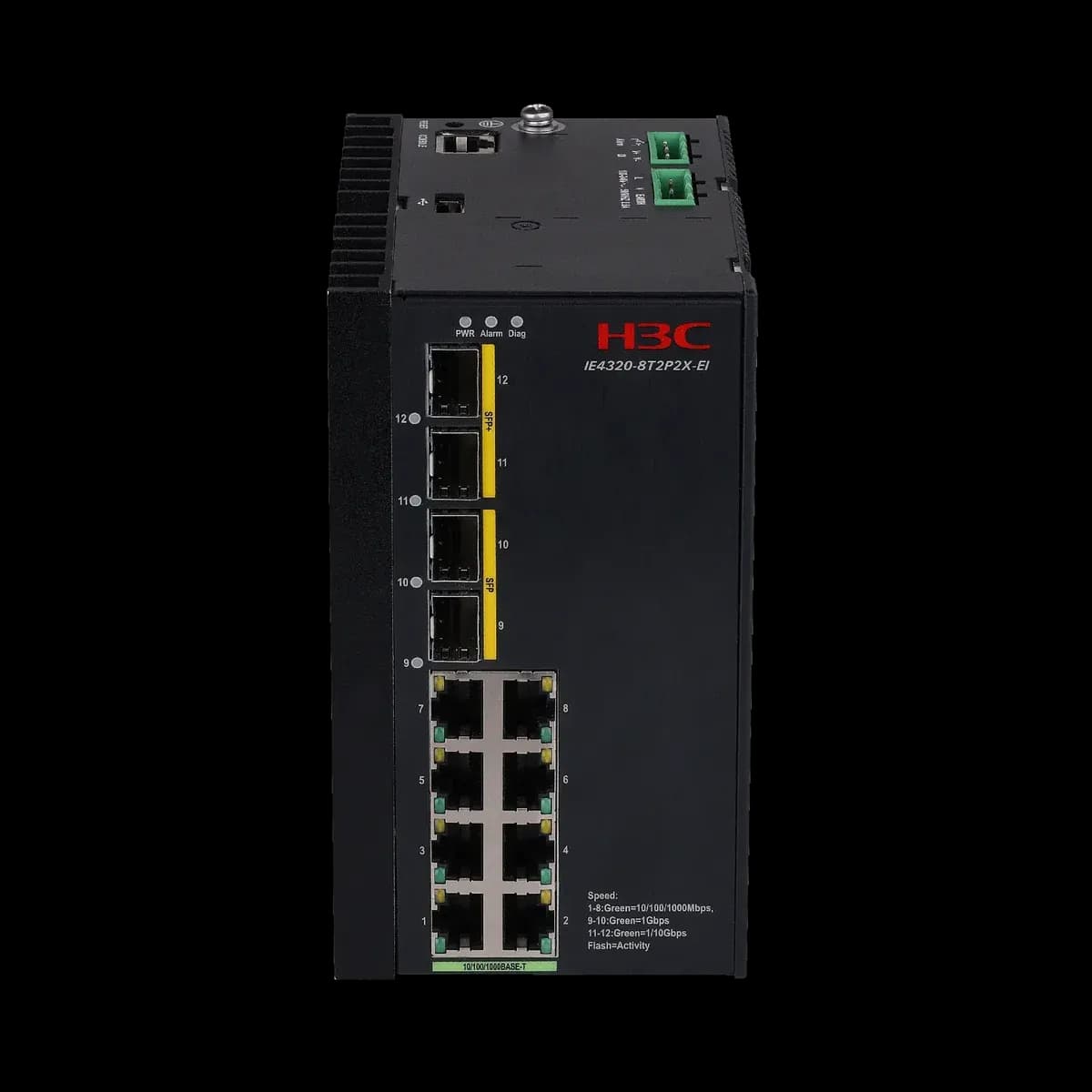

DIN-rail industrial switches with 10G uplinks, PoE options and IP51 protection for demanding sites.
Island-wide delivery to all 25 districts
| Models | IE4320-8T2P2X-EI (DC), IE4320-8T2P2X-EI (AC), IE4320-8T2P2X-PWR-EI, IE4320-16T4X-EI, IE4320-8T8P4X-EI |
|---|---|
| Switching capacity | IE4320-8T2P2X-EI (DC): 60Gbps; IE4320-8T2P2X-EI (AC): 60Gbps; IE4320-8T2P2X-PWR-EI: 60Gbps; IE4320-16T4X-EI: 112Gbps; IE4320-8T8P4X-EI: 112Gbps |
| Forwarding capacity | IE4320-8T2P2X-EI (DC): 45Mpps; IE4320-8T2P2X-EI (AC): 45Mpps; IE4320-8T2P2X-PWR-EI: 45Mpps; IE4320-16T4X-EI: 84Mpps; IE4320-8T8P4X-EI: 84Mpps |
| Dimensions (W × D × H) | IE4320-8T2P2X-EI (DC): 44.0×129.4×149.2mm; IE4320-8T2P2X-EI (AC): 48.0×129.3×149.2mm; IE4320-8T2P2X-PWR-EI: 44.0mm×129.4mm×149.2mm; IE4320-16T4X-EI: 78.6×129.4×149.2mm; IE4320-8T8P4X-EI: 78.6×129.4×149.2mm |
| Weight | ≤ 1.2kg |
| 10/100/1000M Base-T port | IE4320-8T2P2X-EI (DC): 8; IE4320-8T2P2X-EI (AC): 8; IE4320-8T2P2X-PWR-EI: 8; IE4320-16T4X-EI: 16; IE4320-8T8P4X-EI: 8 |
| 100/1000M SFP port | IE4320-8T2P2X-EI (DC): 2; IE4320-8T2P2X-EI (AC): 2; IE4320-8T2P2X-PWR-EI: 2; IE4320-16T4X-EI: -; IE4320-8T8P4X-EI: 8 |
| 10G SFP port | IE4320-8T2P2X-EI (DC): 2; IE4320-8T2P2X-EI (AC): 2; IE4320-8T2P2X-PWR-EI: 2; IE4320-16T4X-EI: 4; IE4320-8T8P4X-EI: 4 |
| Input voltage | IE4320-8T2P2X-EI (DC): Rated DC voltage: 24-48V (1+1 hot-swappable); IE4320-8T2P2X-EI (AC): Rated AC voltage: 100-240V; IE4320-8T2P2X-PWR-EI: Rated DC voltage: 54-57V (1+1 hot-swappable); IE4320-16T4X-EI: Rated DC voltage: 24-48V; IE4320-8T8P4X-EI: Rated DC voltage: 24-48V (1+1 hot-swappable) |
| Power consumption | IE4320-8T2P2X-EI (DC): MIN: 4.7WW MAX: 12.9W; IE4320-8T2P2X-EI (AC): MIN: 5WW MAX: 12W; IE4320-8T2P2X-PWR-EI: MIN: 5.7WW MAX: 144W; IE4320-16T4X-EI: MIN: 6.4W MAX: 17.6W; IE4320-8T8P4X-EI: MIN: 7.2WW MAX: 20W |
| POE | - / 125W |
| MTBF(Year) | IE4320-8T2P2X-EI (DC): 152.32; IE4320-8T2P2X-EI (AC): 130.98; IE4320-8T2P2X-PWR-EI: 151.88; IE4320-16T4X-EI: 119.89; IE4320-8T8P4X-EI: 165.03 |
| MTTR(Hour) | 1 |
| Operating temperature | -40 ℃ ～ 70℃ |
| Storage temperature | -40℃ ～ 85℃ |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
| Operating Environment | International Protection Marking IP51 Lightning-proof Ethernet Port Electro Static Discharge Air Discharge: ≥±8.0kV Contact Discharge: ≥±6.0kV |
| Cluster Management | Support |
| Port Aggregation | Support |
| Ethernet Switching | Store-and-Forward |
| MAC Address Table | Static MAC Address Black hole MAC Address MAC Address Learning Limit |
| VLAN | Port-based VLAN MAC-based VLAN Protocol-based VLAN Voice VLAN Guest VLAN QinQ and Selective QinQ VLAN Mapping |
| ACL | Time Range-based ACL Layers 2-4 ACL IPv4/IPv6 ACL Ingress ACL Rate-limited ACL |
| QoS | Diff-Serv QoS Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR 802.1p DSCP remarking |
| DHCP | DHCP Client DHCP Snooping DHCP Snooping Trust DHCP Snooping option 82 / DHCP Relay option 82 |
| ARP | Static ARP Gratuitous ARP ARP anti-attack ARP Rate Limiting |
| IP Routing | Routed Port IPv4 Routing: Static Route, RIP IPv6 Routing: Static Route, Unicast Route |
| Multicast | IGMP v1/v2/v3 Snooping IGMP Snooping Fast-leave IGMP Snooping Group-policy IGMP Snooping Proxy IPv4/IPv6 Multicast VLAN MLD v1/v2 Snooping MVR |
