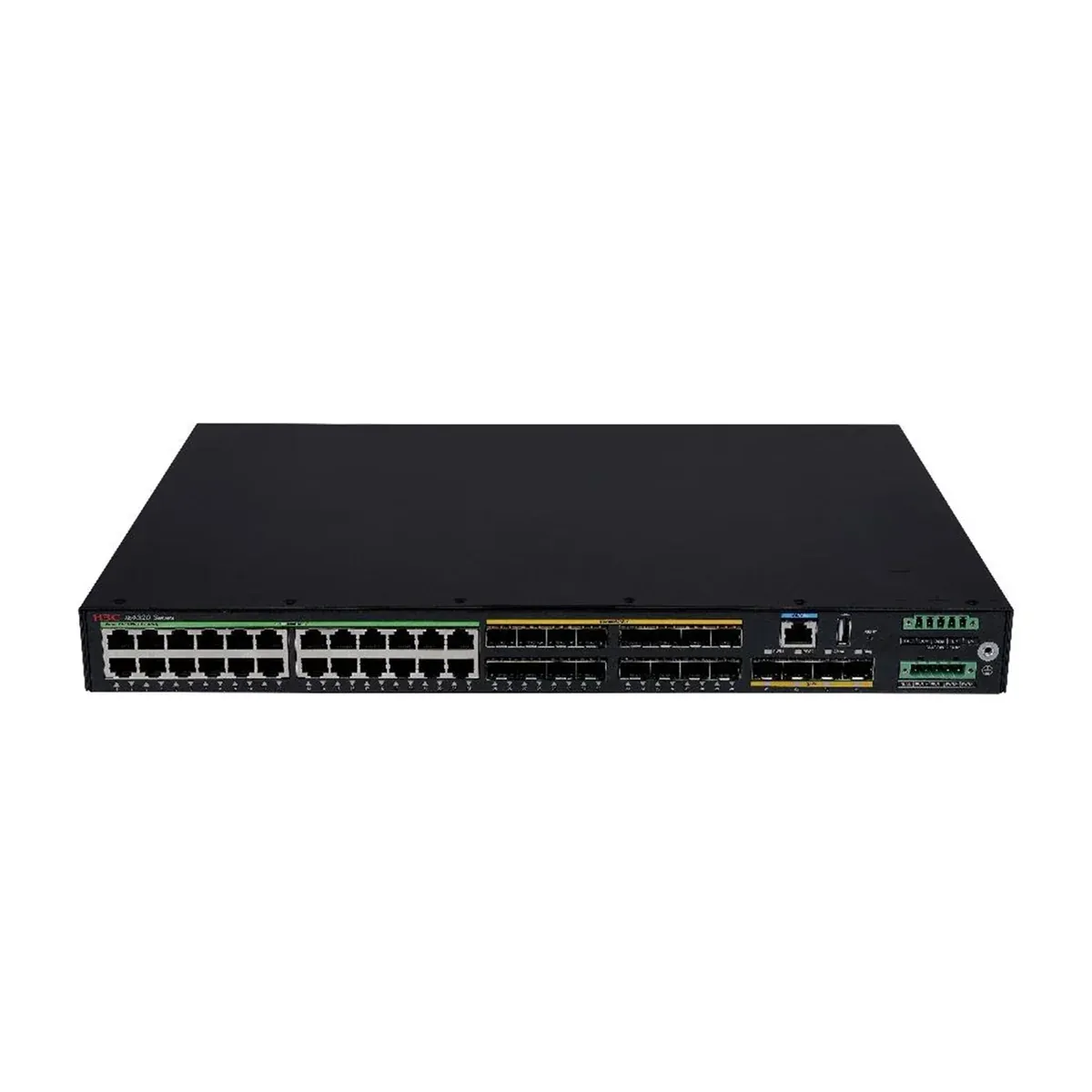

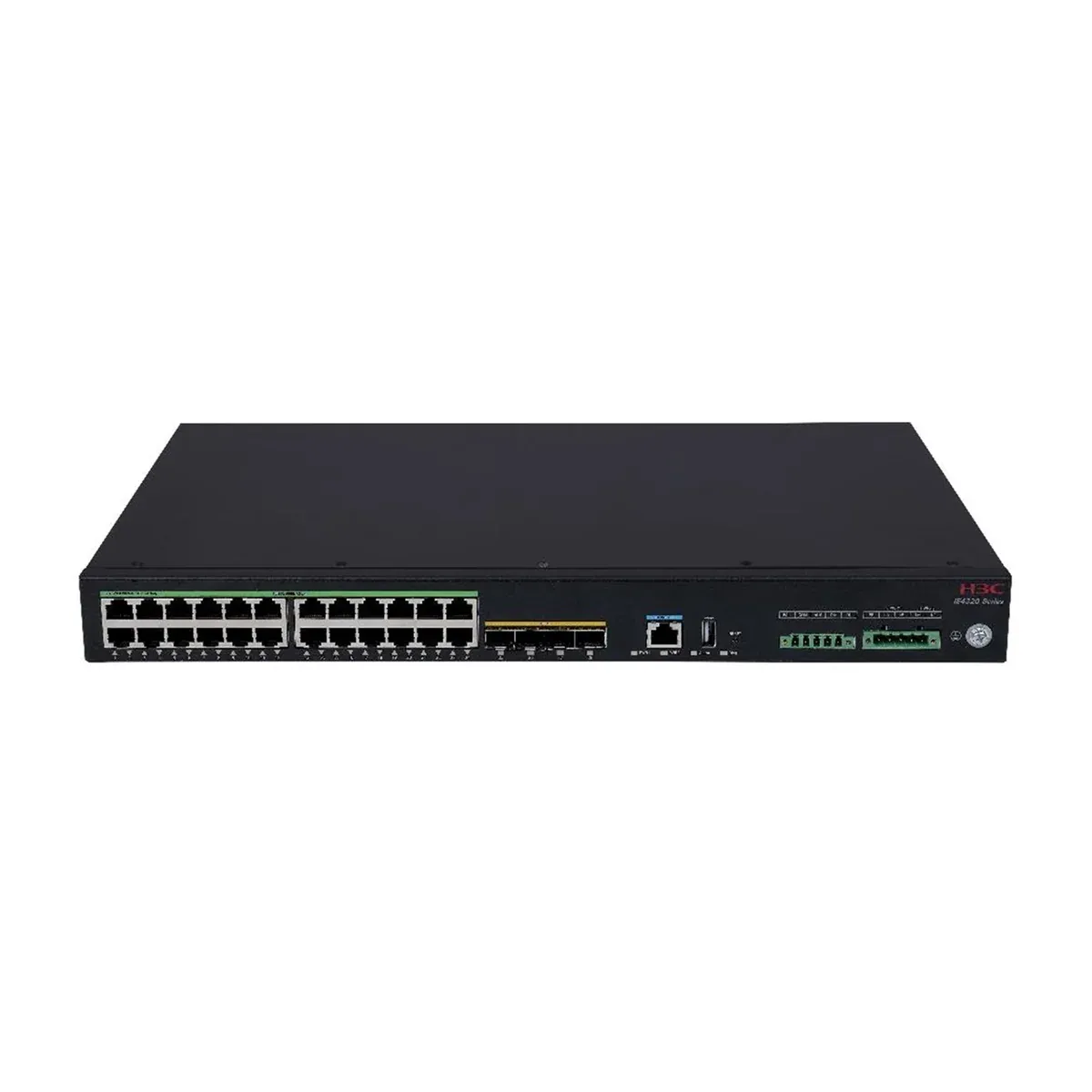

H3C IE4320-EI Rackmount Industrial Switches

Model: IE4320-EI RackmountSeries: IE4320

19-inch rackmount industrial switches with 24 GE ports and 10G uplinks for substations and industrial control rooms.

24 x GE (including combo ports) with 4 x 10G or 4 x 1G uplinks
AC, DC and high-power PoE variants
Fanless, IP40, electromagnetic hardening
IRF2 stacking
Up to 128 Gbps switching

Price on Request

Request Price Call 076 018 7080 Download datasheet

Island-wide delivery to all 25 districts

Models	IE4320-16T8TP4P-EI, IE4320-24T4X-EI, IE4320-16T8TP4X-EI (AC), IE4320-16T8TP4X-EI (DC)
Switching capacity	IE4320-16T8TP4P-EI: 56Gbps; IE4320-24T4X-EI: 128Gbps; IE4320-16T8TP4X-EI (AC): 128Gbps; IE4320-16T8TP4X-EI (DC): 128Gbps
Forwarding capacity	IE4320-16T8TP4P-EI: 42Mpps; IE4320-24T4X-EI: 96Mpps; IE4320-16T8TP4X-EI (AC): 96Mpps; IE4320-16T8TP4X-EI (DC): 96Mpps
Dimensions (W × D × H)	440×260×44mm
Weight	IE4320-16T8TP4P-EI: ≤ 3.8kg; IE4320-24T4X-EI: ≤ 3.8kg; IE4320-16T8TP4X-EI (AC): ≤ 3.9kg; IE4320-16T8TP4X-EI (DC): ≤ 3.8kg
10/100/1000M Base-T port	IE4320-16T8TP4P-EI: 24 (8combo); IE4320-24T4X-EI: 24; IE4320-16T8TP4X-EI (AC): 24 (8combo); IE4320-16T8TP4X-EI (DC): 24 (8*combo)
1G SFP port	IE4320-16T8TP4P-EI: 4; IE4320-24T4X-EI: -; IE4320-16T8TP4X-EI (AC): 8combo; IE4320-16T8TP4X-EI (DC): 8combo
10G SFP port	IE4320-16T8TP4P-EI: -; IE4320-24T4X-EI: 4; IE4320-16T8TP4X-EI (AC): 4; IE4320-16T8TP4X-EI (DC): 4
Input voltage	IE4320-16T8TP4P-EI: Rated AC voltage: 100-240V; IE4320-24T4X-EI: Rated AC voltage: 100-240V; IE4320-16T8TP4X-EI (AC): Rated AC voltage: 100-240V; IE4320-16T8TP4X-EI (DC): Rated DC voltage: 24-48V
Power Supply	IE4320-16T8TP4P-EI: 1 + 1 AC Power Redundancy; IE4320-24T4X-EI: 1 + 1 AC Power Redundancy; IE4320-16T8TP4X-EI (AC): 1 + 1 AC Power Redundancy; IE4320-16T8TP4X-EI (DC): 1 + 1 DC Power Redundancy
Power consumption	IE4320-16T8TP4P-EI: MIN: 8.6W MAX: 30.9W; IE4320-24T4X-EI: MIN: 7.4W MAX: 21.1W; IE4320-16T8TP4X-EI (AC): MIN: 8.6W MAX: 30.9W; IE4320-16T8TP4X-EI (DC): MIN: 8.6W MAX: 23.5W
Installation Method	Rackmount
Operating temperature	-40ºC ~ 75ºC
Storage temperature	-40ºC ~ 85ºC
Operating & storage humidity	5% RH to 95% RH, non-condensing
Operating environment	International Protection Marking IP40 Lightning-proof Ethernet Port Electro Static Discharge Air Discharge: ≥±8.0kV Contact Discharge: ≥±6.0kV
Models	IE4320-16T8TP4X-HPWR-EI (AC), IE4320-16T8TP4X-HPWR-EI (DC)
POE	360W
Cluster management	Support
Port aggregation	Support
Ethernet switching	Store-and-Forward
MAC address table	Static MAC Address Black hole MAC Address MAC Address Learning Limit
VLAN	Port-based VLAN MAC-based VLAN Protocol-based VLAN Voice VLAN Guest VLAN QinQ and Selective QinQ VLAN Mapping
ACL	Time Range-based ACL Layers 2-4 ACL IPv4/IPv6 ACL Ingress ACL Rate-limited ACL
QoS	Diff-Serv QoS Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR 802.1p DSCP remarking
DHCP	DHCP Client DHCP Snooping DHCP Snooping Trust DHCP Snooping option 82 / DHCP Relay option 82
ARP	Static ARP Gratuitous ARP ARP anti-attack ARP Rate Limiting
IP routing	Routed Port IPv4 Routing: Static Route, RIP IPv6 Routing: Static Route, Unicast Route
