H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

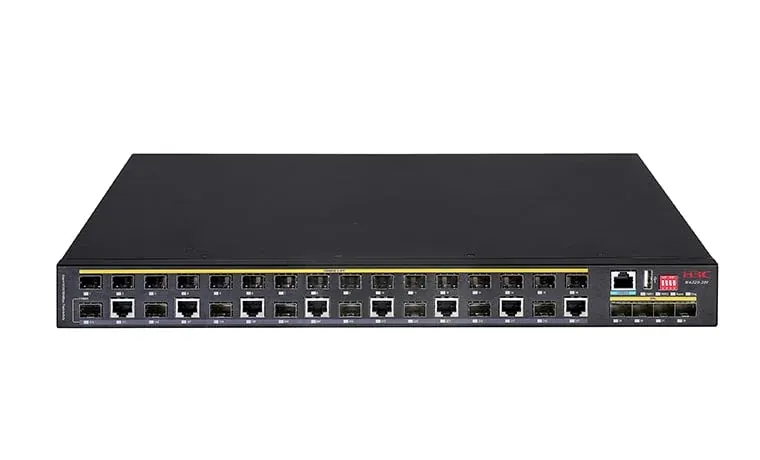

Rackmount industrial switches on Comware V7 that run from -40 °C to 75 °C, with PoE++ and fibre-heavy options.
Island-wide delivery to all 25 districts
| Models | IE4320-28S, IE4320-28F, IE4320-52S, IE4320-28S-HPWR |
|---|---|
| Port switching capacity | IE4320-28S: 128Gbps; IE4320-28F: 128Gbps; IE4320-52S: 176Gbps; IE4320-28S-HPWR: 128Gbps |
| Forwarding capacity | IE4320-28S: 96Mpps; IE4320-28F: 96Mpps; IE4320-52S: 131Mpps; IE4320-28S-HPWR: 96Mpps |
| CPU | 1 Core, 800MHz |
| Flash/SDRAM | 256MB/512MB |
| Dimensions (H × W × D) | IE4320-28S: 440*260*43.6 mm; IE4320-28F: 440*320*43.6 mm; IE4320-52S: 440*320*43.6 mm; IE4320-28S-HPWR: 440*260*43.6 mm |
| Weight | IE4320-28S: ≤4 kg; IE4320-28F: ≤5 kg; IE4320-52S: ≤5 kg; IE4320-28S-HPWR: ≤4 kg |
| 10/100/1000BASE-T autosensing Ethernet port | IE4320-28S: 24; IE4320-28F: 8; IE4320-52S: 48; IE4320-28S-HPWR: 24(16 PoE+, 8PoE++) |
| SFP port | IE4320-28S: 8; IE4320-28F: 24; IE4320-52S: -; IE4320-28S-HPWR: - |
| SFP+ port | 4 |
| Console port | 1× serial console port |
| USB port | 1 |
| Maximum stacking bandwidth | 16Gbps |
| Maximum stacking number | 9 |
| Input voltage | AC input: Rated voltage range: 100 to 240 VAC @ 50 or 60 Hz Max voltage range: 90 to 264 VAC @ 47 to 63 Hz DC input: Rated voltage range: 220 VDC Max voltage range: 192 to 288 VDC / Dual-DC: Rated voltage range: 53 to 57 VDC Max voltage range: 53 to 57 VDC |
| Power consumption (idle) | IE4320-28S: Single AC input: 14 W Dual AC inputs: 15 W; IE4320-28F: Single AC input: 16 W Dual AC inputs: 17 W; IE4320-52S: Single AC input: 20 W Dual AC inputs: 21 W; IE4320-28S-HPWR: Single DC input: 17 W Dual DC inputs: 19 W |
| Power consumption (fully configured) | IE4320-28S: Single AC input: 30 W Dual AC inputs: 31 W; IE4320-28F: Single AC input: 44 W Dual AC inputs: 46 W; IE4320-52S: Single AC input: 43 W Dual AC inputs: 44 W; IE4320-28S-HPWR: Single DC input: 198 W (PoE: 160 W) Dual DC inputs: 415 W (PoE: 360 W) |
| Ingress protection rating | IP40 |
| Operating temperature | -40ºC ~70ºC |
| Storage temperature | -40ºC ~75ºC |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
| Operating Environment | Lightning-proof Ethernet Port Electro Static Discharge Air Discharge: ≥±8.0kV Contact Discharge: ≥±6.0kV |
| Port aggregation | GE/10GE port aggregation Dynamic aggregation Static aggregation Cross-device aggregation |
| IRF2 | Distributed device management, distributed link aggregation, and distributed resilient routing Stacking through standard Ethernet interfaces Local device stacking and remote device stacking |
| MAC address table | Static MAC address Blackhole MAC address |
| VLAN | Port-based VLAN MAC-based VLAN Protocol-based VLAN QinQ and selective QinQ VLAN mapping Voice VLAN GVRP |
| DHCP | DHCP Client DHCP Snooping DHCP Snooping option82 DHCP Relay DHCP Server DHCP auto-config |
| IP routing | Static routing RIPv1/v2 and RIPng OSPFv1/v2 and OSPFv3 |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
