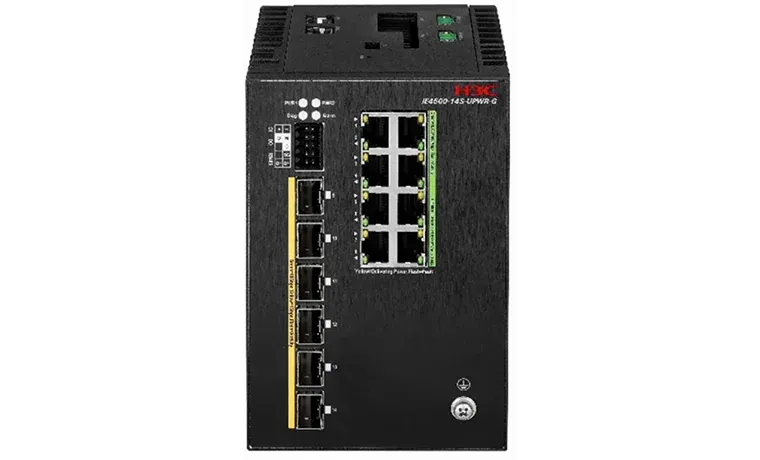

High-performance DIN-rail industrial switches with six 10G uplinks and 90 W PoE++ options.
Island-wide delivery to all 25 districts
| Models | IE4500-14S-G, IE4500-14S-UPWR-G |
|---|---|
| Port switching capacity | 136Gbps |
| Box switching capacity | 560Gbps |
| Forwarding capacity | 102 Mpps |
| CPU | 2 Cores, 800MHz |
| Dimensions (W×D×H) | 155*135*103 mm |
| Weight | ≤2.2kg |
| 10/100/1000Base-T port | IE4500-14S-G: 8; IE4500-14S-UPWR-G: 8 (PoE++ 90W) |
| SFP+ port | 6 |
| Maximum stacking bandwidth | 60Gbps |
| Maximum stacking num | 4 |
| Input voltage | IE4500-14S-G: DC:24-48VDC; IE4500-14S-UPWR-G: DC:50-57VDC |
| Flash/SDRAM | 3.5GB/1GB |
| Power consumption | IE4500-14S-G: Min: 17.76W Max: 31.29W; IE4500-14S-UPWR-G: Min: 20.75W Max: 400W (PoE: 360W) |
| MTBF(year) | 35 |
| MTTR(hour) | 1 |
| Operating temperature | -40ºC ~75ºC |
| Storage temperature | -40ºC ~85ºC |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
| Operating environment | International Protection Marking IP51 Lightning-proof Ethernet Port Electro Static Discharge Air Discharge: ≥±8.0kV Contact Discharge: ≥±6.0kV |
| Cluster management | Support |
| Port configuration | Static aggregation Dynamic aggregatio S-MLAG(Simple multichassis link aggregation) GE/10GE port aggregation Port isolation |
| Ethernet switching | Store-and-Forward |
| MAC address table | Static MAC Address Black hole MAC Address MAC Address Learning Limit |
| VLAN | Port-based VLAN MAC-based VLAN Protocol-based VLAN Voice VLAN Guest VLAN QinQ and Selective QinQ VLAN Mapping Storm suppression based on port rate percentage PPS-based storm suppression BPS-based storm suppression |
| ACL | Time Range-based ACL Layers 2-4 ACL IPv4/IPv6 ACL Ingress ACL Rate-limited ACL VLAN-based ACL Bidirectional ACL |
| QoS | Diff-Serv QoS Ingress/Egress CAR Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR 802.1p DSCP remarking 802.1p, TOS, DSCP, and EXP priority mapping |
| DHCP | DHCP Client DHCP Server DHCP Snooping DHCP Snooping Trust DHCP Snooping option 82 / DHCP Relay option 82 DHCP auto-config |
