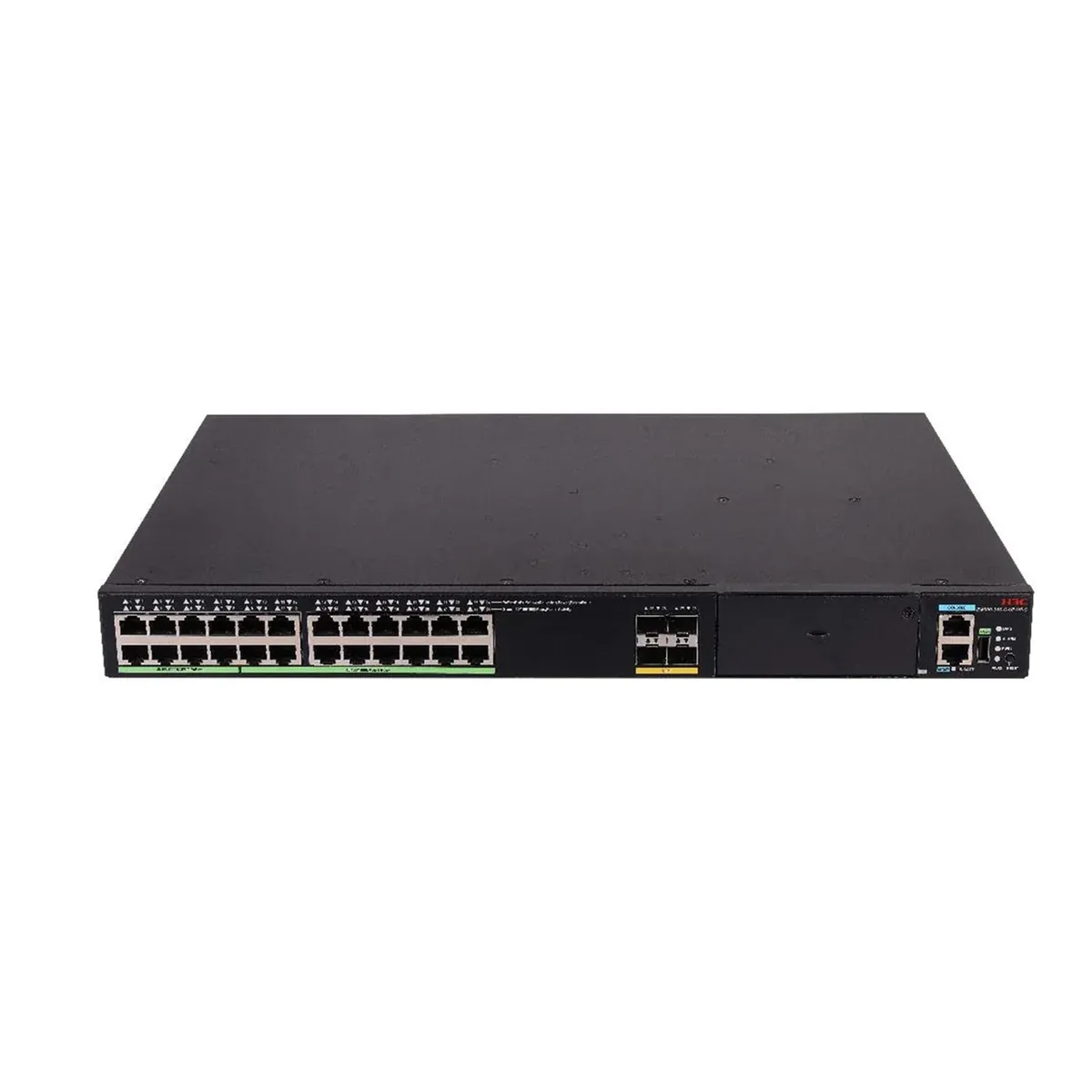

Rackmount industrial switches with 24 GE ports, 10G uplinks and hot-swappable redundant DC power.
Island-wide delivery to all 25 districts
| Port switching capacity | 128Gbps |
|---|---|
| Forwarding capacity | 96Mpps |
| Flash/SDRAM | 8GB/1GB |
| Dimensions (W×D×H) | 440×320×43.6 mm |
| Weight | ≤5.1kg |
| 10/100/1000Base-T port | 24 |
| SFP+ port | 4 |
| Input voltage | Rated DC voltage: 18-60V (1+1 hot-swappable) |
| Power consumption | Min: 33.22W Max: 519W |
| PoE | 480W |
| Operating temperature | -40ºC ~70ºC |
| Storage temperature | -40ºC ~85ºC |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
| Operating environment | International Protection Marking IP40 Lightning-proof Ethernet Port Electro Static Discharge Air Discharge: ≥±8.0kV Contact Discharge: ≥±6.0kV |
| Cluster management | Support |
| Port configuration | Static aggregation Dynamic aggregatio S-MLAG(Simple multichassis link aggregation) GE/10GE port aggregation Port isolation |
| Ethernet switching | Store-and-Forward |
| MAC address table | Static MAC Address Black hole MAC Address MAC Address Learning Limit |
| VLAN | Port-based VLAN MAC-based VLAN Protocol-based VLAN Voice VLAN Guest VLAN QinQ and Selective QinQ VLAN Mapping Storm suppression based on port rate percentage PPS-based storm suppression BPS-based storm suppression |
| ACL | Time Range-based ACL Layers 2-4 ACL IPv4/IPv6 ACL Ingress ACL Rate-limited ACL VLAN-based ACL Bidirectional ACL |
| QoS | Diff-Serv QoS Ingress/Egress CAR Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR 802.1p DSCP remarking 802.1p, TOS, DSCP, and EXP priority mapping |
| DHCP | DHCP Client DHCP Server DHCP Snooping DHCP Snooping Trust DHCP Snooping option 82 / DHCP Relay option 82 DHCP auto-config |
| ARP | Static ARP Gratuitous ARP ARP anti-attack ARP Rate Limiting |
| IP routing | Routed Port IPv4 Routing: Static Route, OSPF, RIP IPv6 Routing: Static Route, Unicast Route,OSPFv3,RIPng |
| Forwarding | Hardware-based(ASlC)Wire-speed/Line-rate architecture |
| Multicast | IGMP v1/v2/v3 Snooping IGMP Snooping Fast-leave IGMP Snooping Group-policy IGMP Snooping Proxy IPv4/IPv6 Multicast VLAN MLD v1/v2 Snooping MVRP(Multiple VLAN Registration Protocol) GVRP(Generic VLAN Registration Protocol) |
| Spanning tree | STP / RSTP / MSTP STP Root Guard BPDU Guard Loop Guard PVST(Per-VLAN Spanning Tree) (compatible with PVST+/RPVST+) |
| Mirroring | Port Mirroring Remote SPAN (RSPAN) |
| Part numbers | DG-240-5501 |
