Price on Request

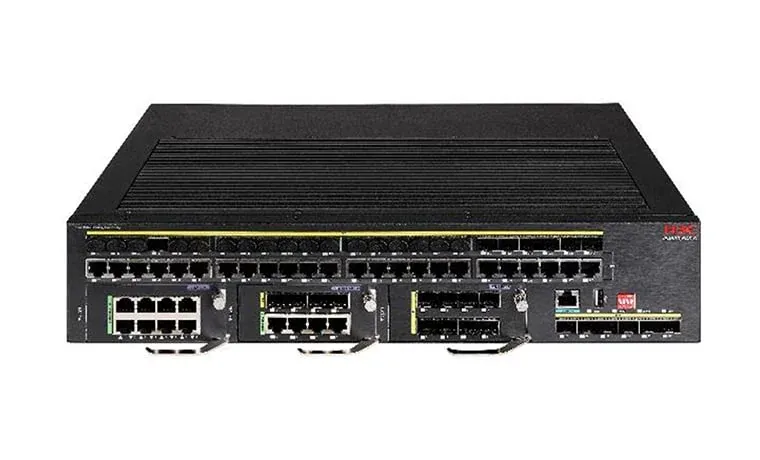

Layer 3 modular industrial switches with high port density, SDN and an optional security-hardened model.
Island-wide delivery to all 25 districts
| Models | IE4520-30S-C, IE4520-54S-C, IE4520-54S-C-SEC |
|---|---|
| Port switching capacity | 288G |
| Forwarding capacity | 180Mpps |
| CPU | 2 Core, 800MHz |
| Flash/SDRAM | 1GB/2GB |
| Dimensions (H × W × D) | IE4520-30S-C: 43.6 × 440 × 360 mm; IE4520-54S-C: 88 × 440 × 360 mm; IE4520-54S-C-SEC: 88 × 440 × 360 mm |
| Weight | IE4520-30S-C: ≤5.5 kg; IE4520-54S-C: ≤10 kg; IE4520-54S-C-SEC: ≤10 kg |
| 10/100/1000BASE-T autosensing Ethernet port | IE4520-30S-C: N/A; IE4520-54S-C: 24 (Each and its corresponding SFP port form a combo interface.); IE4520-54S-C-SEC: 24 (Each and its corresponding SFP port form a combo interface.) |
| SFP port | IE4520-30S-C: N/A; IE4520-54S-C: 24 (Each and its corresponding 10/100/1000BASE-T autosensing Ethernet port form a combo interface.); IE4520-54S-C-SEC: 24 (Each and its corresponding 10/100/1000BASE-T autosensing Ethernet port form a combo interface.) |
| SFP+ port | 6 |
| Console port | 1× serial console port |
| USB port | 1 |
| Maximum stacking bandwidth | 160Gbps |
| Maximum stacking number | 9 |
| Expansion slot | 3, in the front panel |
| Input voltage | AC input: Rated voltage range: 100 to 240 VAC @ 50 or 60 Hz Max voltage range: 90 to 264 VAC @ 47 to 63 Hz |
| Power consumption (idle) | IE4520-30S-C: Single AC input: 15 W Dual AC inputs: 16 W; IE4520-54S-C: Single AC input: 22 W Dual AC inputs: 26 W; IE4520-54S-C-SEC: Single AC input: 24 W Dual AC inputs: 28 W |
| Power consumption (fully configured) | IE4520-30S-C: Single AC input: 46 W Dual AC inputs: 48 W; IE4520-54S-C: Single AC input: 68 W Dual AC inputs: 72 W; IE4520-54S-C-SEC: Single AC input: 98 W Dual AC inputs: 102 W |
| Ingress protection rating | IE4520-30S-C: IP40; IE4520-54S-C: IP40; IE4520-54S-C-SEC: IP30 |
| Operating temperature | -40ºC ~70ºC |
| Storage temperature | -40ºC ~75ºC |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
| Port aggregation | GE/10GE port aggregation Dynamic aggregation Static aggregation Cross-device aggregation |
| IRF2 | Distributed device management, distributed link aggregation, and distributed resilient routing Stacking through standard Ethernet interfaces Local device stacking and remote device stacking |
| MAC address table | Static MAC address Blackhole MAC address |
| VLAN | Port-based VLAN MAC-based VLAN Protocol-based VLAN QinQ and selective QinQ VLAN mapping Voice VLAN GVRP |
| DHCP | DHCP Client DHCP Snooping DHCP Snooping option82 DHCP Relay DHCP Server DHCP auto-config |
| IP routing | Static routing RIPv1/v2 and RIPng OSPFv1/v2 and OSPFv3 |
