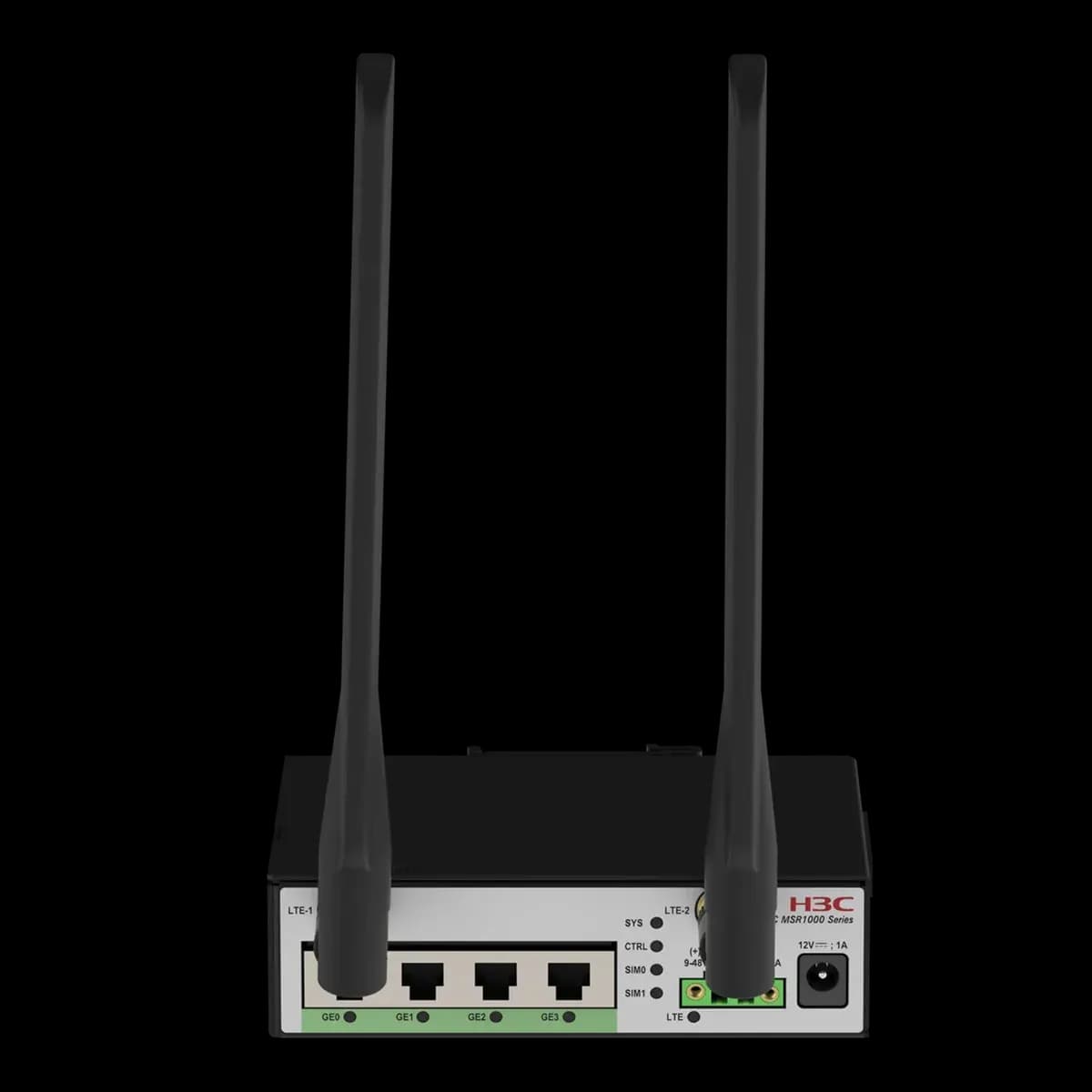

Compact SD-WAN-ready branch routers with optional Wi-Fi, LTE or 5G, offering zero-touch deployment and application-aware control.
Island-wide delivery to all 25 districts
| Models | MSR1104S-W, MSR1104S-W-CAT6, MSR1104S-W-5GGL, MSR1008, MSR1104-G, MSR1104-G-DSL-CAT6, MSR1104-G-IG-LMEA-SI, MSR1104-G-IG-LMEA, MSR1004S-5G-GL |
|---|---|
| IP forwarding performance (IMIX) | MSR1104S-W: 1.8 Gbps; MSR1104S-W-CAT6: 1.8 Gbps; MSR1104S-W-5GGL: 1.8 Gbps; MSR1008: 7.5 Gbps; MSR1104-G: 1.6 Gbps; MSR1104-G-DSL-CAT6: 1.6 Gbps; MSR1104-G-IG-LMEA-SI: 1 Gbps; MSR1104-G-IG-LMEA: 1 Gbps; MSR1004S-5G-GL: 1.8 Gbps |
| Forwarding performance with ACL+NAT+QoS (IMIX) | MSR1104S-W: 1.4 Gbps; MSR1104S-W-CAT6: 1.4 Gbps; MSR1104S-W-5GGL: 1.4 Gbps; MSR1008: 4 Gbps; MSR1104-G: 1.2 Gbps; MSR1104-G-DSL-CAT6: 1.2 Gbps; MSR1104-G-IG-LMEA-SI: 1 Gbps; MSR1104-G-IG-LMEA: 1 Gbps; MSR1004S-5G-GL: 1 Gbps |
| IPsec forwarding performance (1400byte) | MSR1104S-W: 900 Mbps; MSR1104S-W-CAT6: 900 Mbps; MSR1104S-W-5GGL: 900 Mbps; MSR1008: 3 Gbps; MSR1104-G: 1.2 Gbps; MSR1104-G-DSL-CAT6: 1.2 Gbps; MSR1104-G-IG-LMEA-SI: 1 Gbps; MSR1104-G-IG-LMEA: 1 Gbps; MSR1004S-5G-GL: 300 Mbps |
| AD-WAN typical encryption performance (IMIX) | MSR1104S-W: 200 Mbps; MSR1104S-W-CAT6: 200 Mbps; MSR1104S-W-5GGL: 200 Mbps; MSR1008: 400 Mbps; MSR1104-G: 300 Mbps; MSR1104-G-DSL-CAT6: 300 Mbps; MSR1104-G-IG-LMEA-SI: 300 Mbps; MSR1104-G-IG-LMEA: 300 Mbps; MSR1004S-5G-GL: 200 Mbps |
| CPU | MSR1104S-W: 4 cores, 1.7 GHz; MSR1104S-W-CAT6: 4 cores, 1.7 GHz; MSR1104S-W-5GGL: 4 cores, 1.7 GHz; MSR1008: 4 cores, 1.6 GHz; MSR1104-G: 4 cores, 1.8 GHz; MSR1104-G-DSL-CAT6: 4 cores, 1.8 GHz; MSR1104-G-IG-LMEA-SI: 4 cores, 1.8 GHz; MSR1104-G-IG-LMEA: 4 cores, 1.8 GHz; MSR1004S-5G-GL: 2 cores, 1.6 GHz |
| Memory | MSR1104S-W: 1 GB; MSR1104S-W-CAT6: 1 GB; MSR1104S-W-5GGL: 2 GB; MSR1008: 2 GB; MSR1104-G: 2 GB; MSR1104-G-DSL-CAT6: 2 GB; MSR1104-G-IG-LMEA-SI: 1 GB; MSR1104-G-IG-LMEA: 2 GB; MSR1004S-5G-GL: 1 GB |
| Flash | MSR1104S-W: 256 MB; MSR1104S-W-CAT6: 256 MB; MSR1104S-W-5GGL: 512 MB; MSR1008: 4 GB; MSR1104-G: 8 GB; MSR1104-G-DSL-CAT6: 8 GB; MSR1104-G-IG-LMEA-SI: 4 GB; MSR1104-G-IG-LMEA: 4 GB; MSR1004S-5G-GL: 512 MB |
| Console port | 1 |
| USB 2.0 port | 1 |
| WAN Ethernet port | MSR1104S-W: 1 × GE copper port 1 × GE fiber port; MSR1104S-W-CAT6: 1 × GE copper port 1 × GE fiber port; MSR1104S-W-5GGL: 1 × GE copper port 1 × GE fiber port; MSR1008: 2 × 10GE SFP+ ports 2 × GE combo interfaces; MSR1104-G: 2 × 2.5GE/GE fiber port 1 × GE copper port; MSR1104-G-DSL-CAT6: 1 × 2.5GE/GE fiber port 1 × GE copper port; MSR1104-G-IG-LMEA-SI: 0; MSR1104-G-IG-LMEA: 0; MSR1004S-5G-GL: 1 × GE copper port 2 × GE fiber ports |
| LAN Ethernet port | MSR1104S-W: 4 × GE copper ports; MSR1104S-W-CAT6: 4 × GE copper ports; MSR1104S-W-5GGL: 4 × GE copper ports; MSR1008: 8 × GE copper ports (Four of them can be switched to routing mode.); MSR1104-G: 4 × GE copper ports (All of them can be switched to routing mode); MSR1104-G-DSL-CAT6: 4 × GE copper ports; MSR1104-G-IG-LMEA-SI: 4 × GE copper ports (All of them can be switched to routing mode); MSR1104-G-IG-LMEA: 4 × GE copper ports (All of them can be switched to routing mode); MSR1004S-5G-GL: 4 × GE copper ports |
| xDSL | MSR1104S-W: N/A; MSR1104S-W-CAT6: N/A; MSR1104S-W-5GGL: N/A; MSR1008: N/A; MSR1104-G: N/A; MSR1104-G-DSL-CAT6: 1x ADSL2+/VDSL2; MSR1104-G-IG-LMEA-SI: N/A; MSR1104-G-IG-LMEA: N/A; MSR1004S-5G-GL: N/A |
| 5G/4G * | MSR1104S-W: N/A; MSR1104S-W-CAT6: 3GPP R12 TDD LTE: B38/B40/B41 FDD LTE: B1/B3/B5/B7/B8/B20 /B28/B32 WCDMA: B1/B3/B5*/B8 CA: B1+B3/B8, B3+B1/B8, B38+B38; MSR1104S-W-5GGL: 3GPP R16 5G NSA/SA: n1/2/3/5/7/8/ 12/13/14/18/ 20/25/26/28 /29/30/38/40/ 41/48/66/70/ 71/75/76/77 /78/79 LTE-FDD: 1/2/3/4/5/7/8 /12/13/14/17/ 18/19/20/25 /26/28/29/30/ 32/66/71 LTE-TDD: 34/38/39/40/41 /42/43/48 LAA: B46 WCDMA: 1/2/4/5/8/19; MSR1008: N/A; MSR1104-G: N/A; MSR1104-G-DSL-CAT6: 3GPP R12 TDD LTE: B38/B40/B41 FDD LTE: B1/B3/B5/B7/ B8/B20 /B28/B32 WCDMA: B1/B3/B5/B8 CA: B1+B3/B8, B3+B1/B8, B38+B38; MSR1104-G-IG-LMEA- |
| 5G/4G antenna | MSR1104S-W: N/A; MSR1104S-W-CAT6: 2; MSR1104S-W-5GGL: 4; MSR1008: N/A; MSR1104-G: N/A; MSR1104-G-DSL-CAT6: 2; MSR1104-G-IG-LMEA-SI: 2; MSR1104-G-IG-LMEA: 2; MSR1004S-5G-GL: 4 |
| SIM cards | MSR1104S-W: N/A; MSR1104S-W-CAT6: 2; MSR1104S-W-5GGL: 2; MSR1008: N/A; MSR1104-G: N/A; MSR1104-G-DSL-CAT6: 2; MSR1104-G-IG-LMEA-SI: 2; MSR1104-G-IG-LMEA: 2; MSR1004S-5G-GL: 2 |
| Wi-Fi | MSR1104S-W: 802.11ax/n/b/g: 2.4 GHz 2*2 MIMO 575 Mbps 802.11ax/ac/a/n: 5G 2*2 MIMO 2400 Mbps; MSR1104S-W-CAT6: 802.11ax/n/b/g: 2.4 GHz 2*2 MIMO 575 Mbps 802.11ax/ac/a/n: 5G 2*2 MIMO 2400 Mbps; MSR1104S-W-5GGL: 802.11ax/n/b/g: 2.4 GHz 2*2 MIMO 575 Mbps 802.11ax/ac/a/n: 5G 2*2 MIMO 2400 Mbps; MSR1008: N/A; MSR1104-G: N/A; MSR1104-G-DSL-CAT6: N/A; MSR1104-G-IG-LMEA-SI: N/A; MSR1104-G-IG-LMEA: N/A; MSR1004S-5G-GL: N/A |
| Wi-Fi antenna | MSR1104S-W: 2; MSR1104S-W-CAT6: 2; MSR1104S-W-5GGL: 2; MSR1008: N/A; MSR1104-G: N/A; MSR1104-G-DSL-CAT6: N/A; MSR1104-G-IG-LMEA-SI: N/A; MSR1104-G-IG-LMEA: N/A; MSR1004S-5G-GL: N/A |
| Dying gasp | MSR1104S-W: N/A; MSR1104S-W-CAT6: Supported**; MSR1104S-W-5GGL: Supported; MSR1008: N/A; MSR1104-G: Supported; MSR1104-G-DSL-CAT6: Supported; MSR1104-G-IG-LMEA-SI: Supported; MSR1104-G-IG-LMEA: Supported; MSR1004S-5G-GL: Supported |
| Max power consumption | MSR1104S-W: 18 W; MSR1104S-W-CAT6: 24 W; MSR1104S-W-5GGL: 24 W; MSR1008: 36 W; MSR1104-G: 18 W; MSR1104-G-DSL-CAT6: 18 W; MSR1104-G-IG-LMEA-SI: 24 W; MSR1104-G-IG-LMEA: 24 W; MSR1004S-5G-GL: 24 W |
| Power supply | MSR1104S-W: External power adapter 100 to 240 V, 50/60 Hz; MSR1104S-W-CAT6: External power adapter 100 to 240 V, 50/60 Hz; MSR1104S-W-5GGL: External power adapter 100 to 240 V, 50/60 Hz; MSR1008: Internal power adapter 100 to 240 V, 50/60 Hz; MSR1104-G: Internal AC power External power adapter 100 to 240 V, 50/60 Hz; MSR1104-G-DSL-CAT6: External power adapter 100 to 240 V, 50/60 Hz; MSR1104-G-IG-LMEA-SI: DC power supplies: 9 to 48 V External power adapter 100 to 240 V, 50/60 Hz; MSR1104-G-IG-LMEA: DC power supplies: 9 to 48 V External power adapter 100 to 240 V, 50/60 Hz; MSR1004S-5G-GL: Exter |
| Dimensions (H × W × D) | MSR1104S-W: 43.6 × 266 × 161 mm (1.72 × 10.47 × 6.34 in); MSR1104S-W-CAT6: 43.6 × 266 × 161 mm (1.72 × 10.47 × 6.34 in); MSR1104S-W-5GGL: 43.6 × 266 × 161 mm (1.72 × 10.47 × 6.34 in); MSR1008: 43.6 × 266 × 161 mm (1.72 × 10.47 × 6.34 in); MSR1104-G: 44 x 210 x 140 mm (1.72 × 8.27 × 5.51 in); MSR1104-G-DSL-CAT6: 35 × 220 × 149 mm (1.38 × 8.66 × 5.87 in); MSR1104-G-IG-LMEA-SI: 35 × 115 × 100 mm (1.38 × 4.53 × 3.94 in); MSR1104-G-IG-LMEA: 35 × 115 × 100 mm (1.38 × 4.53 × 3.94 in); MSR1004S-5G-GL: 52.4 × 150 × 127 mm (2.06 × 5.91 × 5 in) |
| Operating temperature | MSR1104S-W: 0°C to 45°C; MSR1104S-W-CAT6: 0°C to 45°C; MSR1104S-W-5GGL: 0°C to 45°C; MSR1008: 0°C to 45°C; MSR1104-G: -20°C to 55°C; MSR1104-G-DSL-CAT6: 0°C to 45°C; MSR1104-G-IG-LMEA-SI: -20°C to 70°C; MSR1104-G-IG-LMEA: -20°C to 70°C; MSR1004S-5G-GL: -40°C to 70°C |
| Operating altitude | < 5000m |
| Operating humidity | MSR1104S-W: 5 to 95%, non-condensing; MSR1104S-W-CAT6: 5 to 95%, non-condensing; MSR1104S-W-5GGL: 5 to 95%, non-condensing; MSR1008: 5 to 95%, non-condensing; MSR1104-G: 5 to 95%, non-condensing; MSR1104-G-DSL-CAT6: 5 % to 95%, noncondensing; MSR1104-G-IG-LMEA-SI: 5 % to 95%, noncondensing; MSR1104-G-IG-LMEA: 5 % to 95%, noncondensing; MSR1004S-5G-GL: 5 to 95%, non-condensing |
| EMC standards compliance | MSR1104S-W: FCC Part 15 Subpart B CLASS B ICES-003 CLASS B VCCI CLASS B CISPR 32 CLASS B EN 55032 CLASS B AS/NZS CISPR32 CLASS B CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 ETSI EN 301 489-1 ETSI EN 301 489-17 ETSI EN 301 489-3 GB/T 9254.1; MSR1104S-W-CAT6: FCC Part 15 Subpart B CLASS B ICES-003 CLASS B VCCI CLASS B CISPR 32 CLASS B EN 55032 CLASS B AS/NZS CISPR32 CLASS B CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 ETSI EN 301 489-1 ETSI EN 301 489-3 ETSI EN 301 489-17 GB/T 9254.1; MSR1104S-W-5GGL: FCC Part 15 Subpart B CLASS B ICES-003 CLASS B VCCI CLASS B CISP |
| Safety standards compliance | FDA 21 CFR Subchapter J GB 4943.1 UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1 |
| Radio & health standards compliance | MSR1104S-W: EN 300 328 EN 300 440 EN 301 893 EN 50385 EN 62232; MSR1104S-W-CAT6: ETSI EN 301 908-1 ETSI EN 301 908-2 ETSI EN 301 908-13 EN 300 328 EN 300 440 EN 301 893 EN 50385 EN 62232; MSR1104S-W-5GGL: ETSI EN 301 908-1 ETSI EN 301 908-2 ETSI EN 301 908-13 ETSI EN 303 413 EN 300 328 EN 300 440 EN 301 893 EN 301 908-25 EN 50385 EN 62232; MSR1008: N/A; MSR1104-G: N/A; MSR1104-G-DSL-CAT6: ETSI EN 301 908-1 ETSI EN 301 908-2 ETSI EN 301 908-13 EN 300 328 EN 300 440 EN 301 893 EN 50385 EN 62232; MSR1104-G-IG-LMEA-SI: ETSI EN 301 908-1 ETSI EN 301 908-2 ETSI EN 301 908-13 EN 300 328 EN 300 440 EN |
