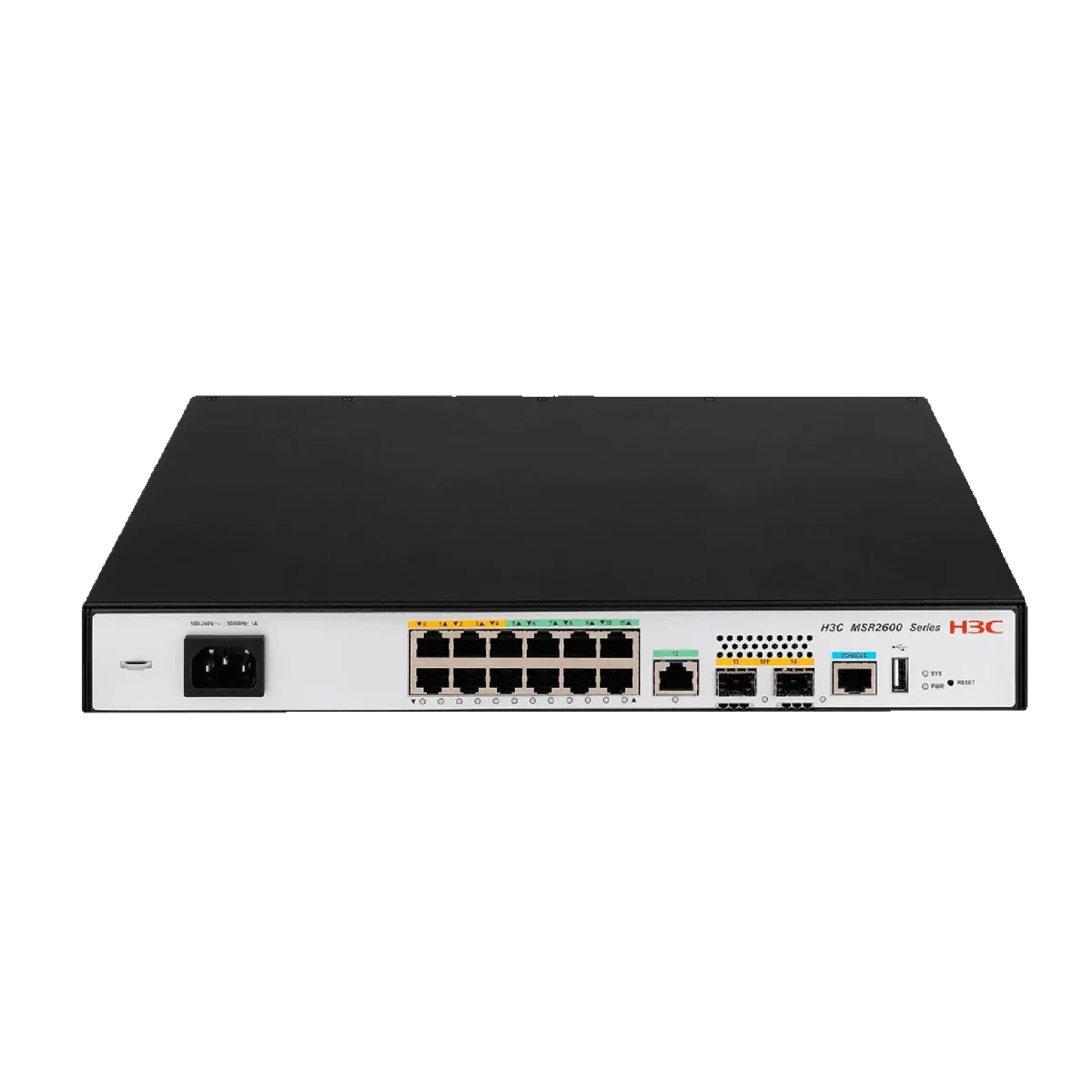

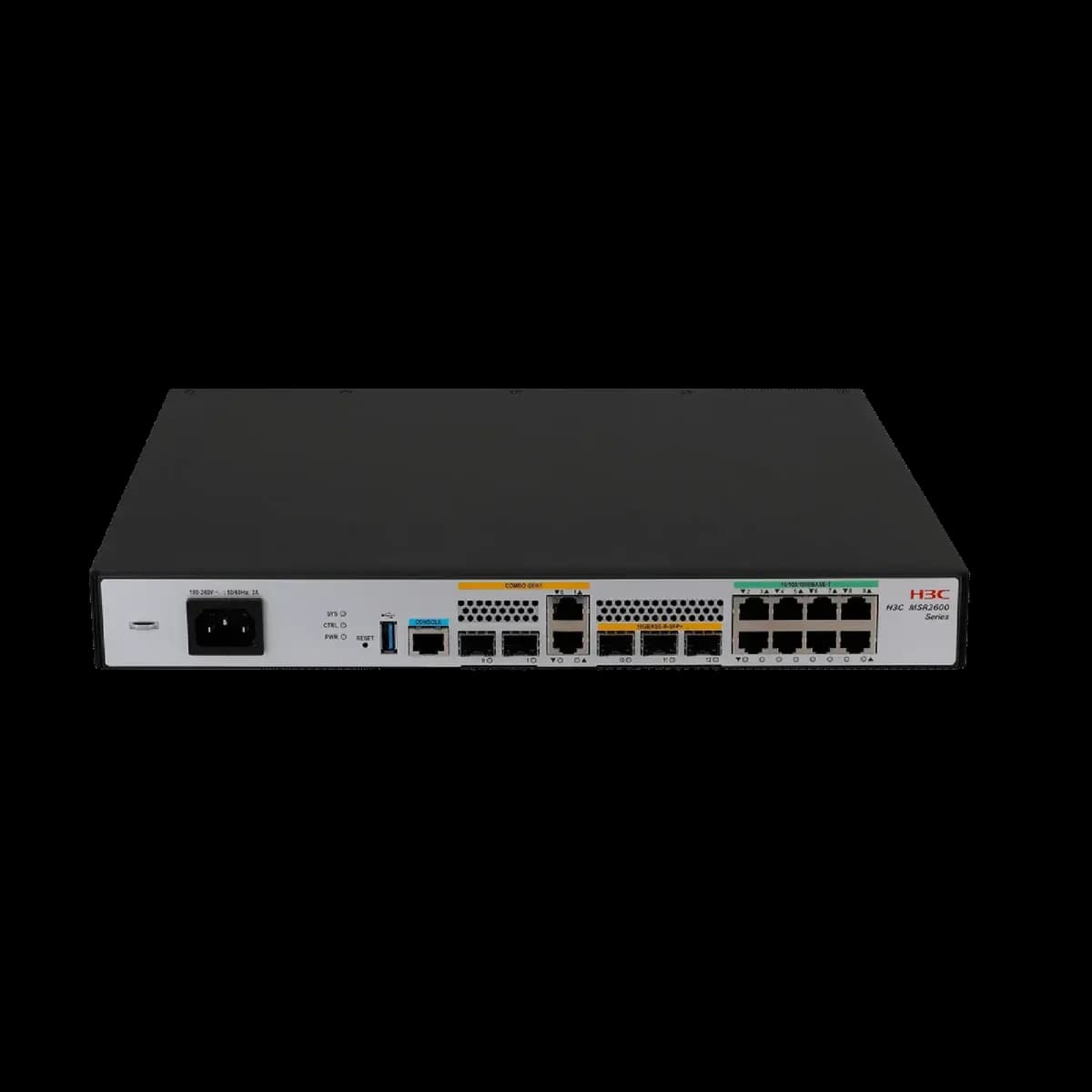

H3C MSR2600 Router Series

Model: MSR2600Series: MSR

Multi-service routers for small and mid-sized offices, combining routing, VPN, NAT and security with modular SIC interface slots.

Up to 10 Gbps forwarding and 5 Gbps IPsec (MSR2630E-X1)
Multi-core CPU with CUBE link engine for SIC cards
IPsec, L2TP, GRE and MPLS VPN
Role-based access control and SNMPv3/SSH/HTTPS management
Models: MSR2600-6-X1-GL, MSR2600-15-X1 and MSR2630E-X1

Price on Request

Request Price Call 076 018 7080 Download datasheet

Island-wide delivery to all 25 districts

Models	MSR2600-6-X1-GL, MSR2600-15-X1, MSR2630E-X1
IP forwarding performance (IMIX)	MSR2600-6-X1-GL: 900 Mbps; MSR2600-15-X1: 1 Gbps; MSR2630E-X1: 10 Gbps
Forwarding performance with ACL+NAT+QoS (IMIX)	MSR2600-6-X1-GL: 800 Mbps; MSR2600-15-X1: 1 Gbps; MSR2630E-X1: 5.5 Gbps
IPsec forwarding performance (1400byte)	MSR2600-6-X1-GL: 250 Mbps; MSR2600-15-X1: 250 Mbps; MSR2630E-X1: 5 Gbps
AD-WAN typical encryption performance (IMIX)	MSR2600-6-X1-GL: 200 Mbps; MSR2600-15-X1: 200 Mbps; MSR2630E-X1: 1 Gbps
CPU	MSR2600-6-X1-GL: 1.6GHz; MSR2600-15-X1: 1.6GHz; MSR2630E-X1: 2.2GHz
Memory	MSR2600-6-X1-GL: 1 G; MSR2600-15-X1: 1GB; MSR2630E-X1: 4GB
Flash	MSR2600-6-X1-GL: 256 MB; MSR2600-15-X1: 512MB(NAND FLASH); MSR2630E-X1: 4GB(eMMC Flash)
USB ports	1
CON ports	1
WAN ports	MSR2600-6-X1-GL: 1 × GE copper port 1 × SFP port; MSR2600-15-X1: 5 × GE copper port 2 × SFP port; MSR2630E-X1: 3 x 10GE(SFP+) 2 x GE(Combo)
LAN ports	MSR2600-6-X1-GL: 4 × GE (RJ45); MSR2600-15-X1: 8 x GE(RJ45); MSR2630E-X1: 8 x GE(RJ45)
SIC slots	2
Maximum power consumption	MSR2600-6-X1-GL: 30 W; MSR2600-15-X1: 36W; MSR2630E-X1: 54W
Power input	100 to 240 VAC @ 50 Hz/60 Hz
Rack height	1 RU
Dimensions (H × W × D)	44.2 × 360 × 300 mm (1.74 × 14.17 × 11.81 in)
Weight	MSR2600-6-X1-GL: 3.15 kg (6.94 lb); MSR2600-15-X1: 2.9 kg (6.39 lb); MSR2630E-X1: 3.15 kg (6.94 lb)
Operating temperature	0ºC to 45ºC (32°F to 113°F)
Operating humidity	5% RH to 95% RH, non-condensing
EMC standards compliance	FCC Part 15 Subpart B CLASS A ICES-003 CLASS A VCCI-CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254.1
Safety standards compliance	FDA 21 CFR Subchapter J UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1
Environment standards compliance	IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-78 IEC 60068-2-30 IEC 60068-2-14
Shock and vibration standards compliance	IEC 60068-2-64 IEC 60068-2-31
Layer 2 switching	Ethernet, Ethernet II, VLAN (port-based VLAN, guest VLAN), 802.3x, 802.1p, 802.1Q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server, HDLC, and DDR
IP services	Unicast/multicast, TCP, UDP, IP option, IP unnumbered, policy-based routing, NetStream, and sFlow
IP application	Ping, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, NTP, and SNTP
IPv4 routing	Static routing Dynamic routing: RIPv1/v2, OSPFv2, BGP, IS-IS Route iteration Policy routing Equal-cost multi-path routing (ECMP) Multicast routing: IGMPv1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP
