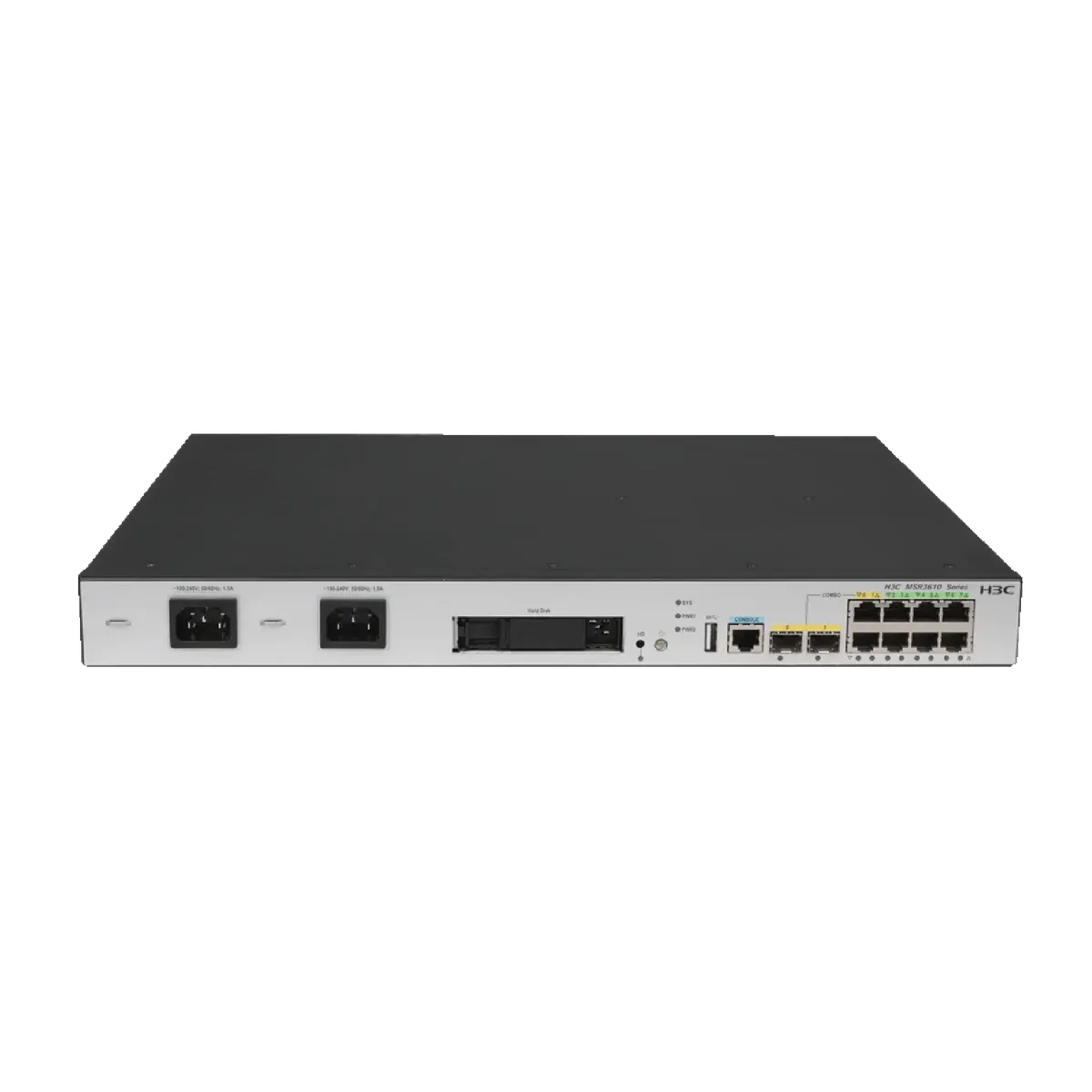

A branch router with built-in x86 compute and storage, letting remote sites run local applications alongside routing, VPN and security.
Island-wide delivery to all 25 districts
| Models | MSR3610-I-DP, MSR3610-IE-DP |
|---|---|
| IP forwarding performance (IMIX) | 3.8 Gbps |
| Forwarding performance with ACL+NAT+QoS (IMIX) | MSR3610-I-DP: 2.5 Gbps; MSR3610-IE-DP: 3.5 Gbps |
| IPsec forwarding performance (1400byte) | MSR3610-I-DP: 780 Mbps; MSR3610-IE-DP: 1.5 Gbps |
| CPU | MSR3610-I-DP: X86, Quad-core, 2.2 GHz; MSR3610-IE-DP: X86, eight-core, 2.2 GHz |
| Memory (default/maximum) | MSR3610-I-DP: 8 GB; MSR3610-IE-DP: 16/32 GB |
| Flash | MSR3610-I-DP: 4 GB (EMMC); MSR3610-IE-DP: 64 GB (EMMC) |
| HDD slot (2.5 inch) | 1 |
| USB port | 1(USB3.0) |
| Console port | 1 |
| WAN ports | 2 × GE combo ports |
| LAN ports | 6 x GE ports(can be configured as WAN interfaces) |
| SIC slot | 4 |
| Performance(1518B) | 3.9 Gbps |
| Operating system | Support for KVM Support for Windows, CentOS, Ubuntu, and RedHat |
| Max power consumption | 54 W |
| Power redundancy | Supported |
| Power voltage | AC: 100 VAC to 240 VAC @ 50 Hz/60 Hz |
| Height | 1 RU |
| Dimensions (H × W × D) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
| Operating temperature | Without a hard disk: 0°C to 45°C With hard disk: 5°C to 40°C |
| Operating altitude | < 5000m |
| Operating humidity | Without a hard disk: 5 to 95%, non-condensing With a hard disk: 10 to 80%, non-condensing |
| Storage temperature | –40°C to 70°C |
| EMC standards compliance | FCC Part 15 Subpart B CLASS A ICES-003 CLASS A VCCI-CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254.1 |
| Safety standards compliance | FDA 21 CFR Subchapter J UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1 |
| Environment standards compliance | IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-78 IEC 60068-2-30 IEC 60068-2-14 |
| Shock and vibration standards compliance | IEC 60068-2-64 IEC 60068-2-31 IEC 60068-2-27 |
