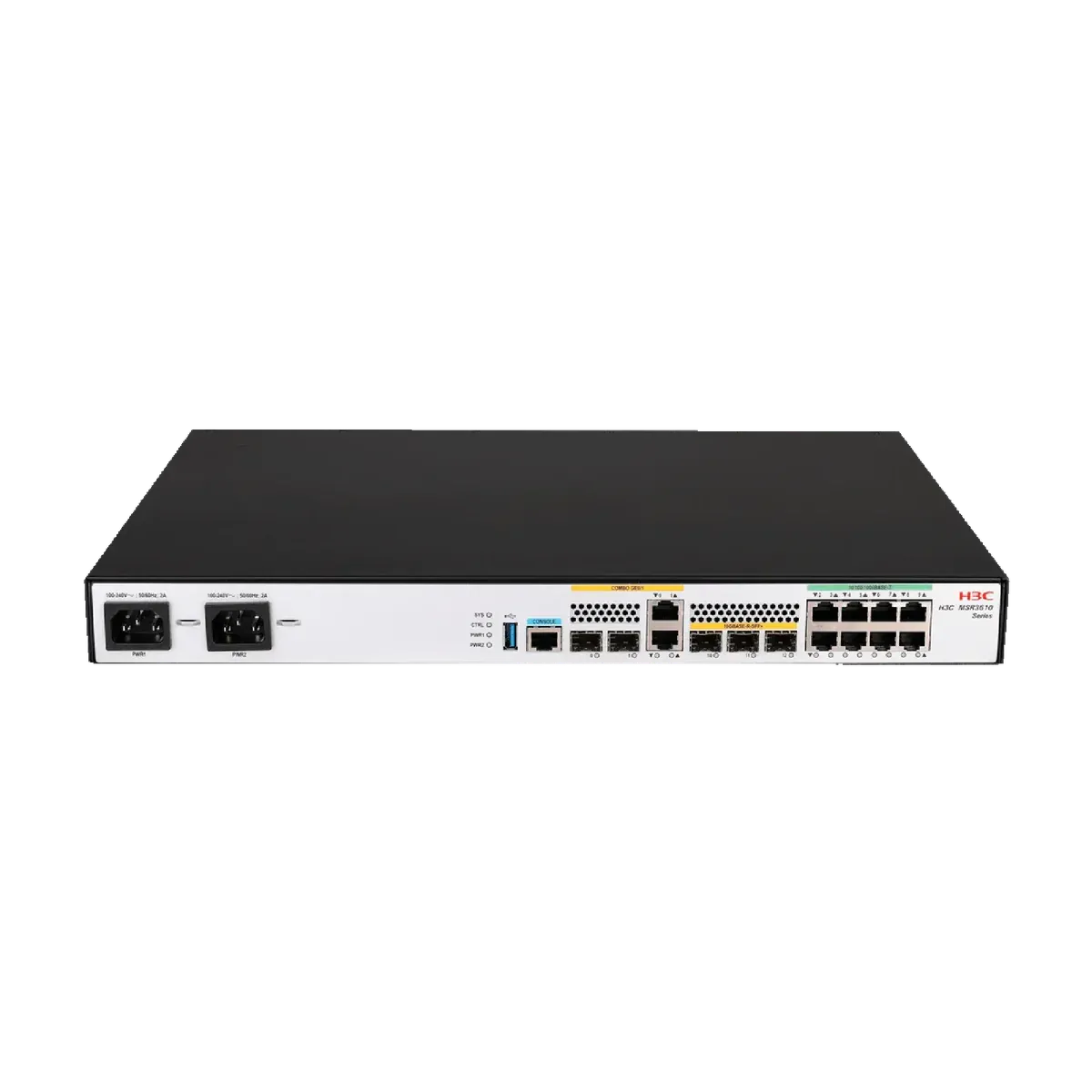

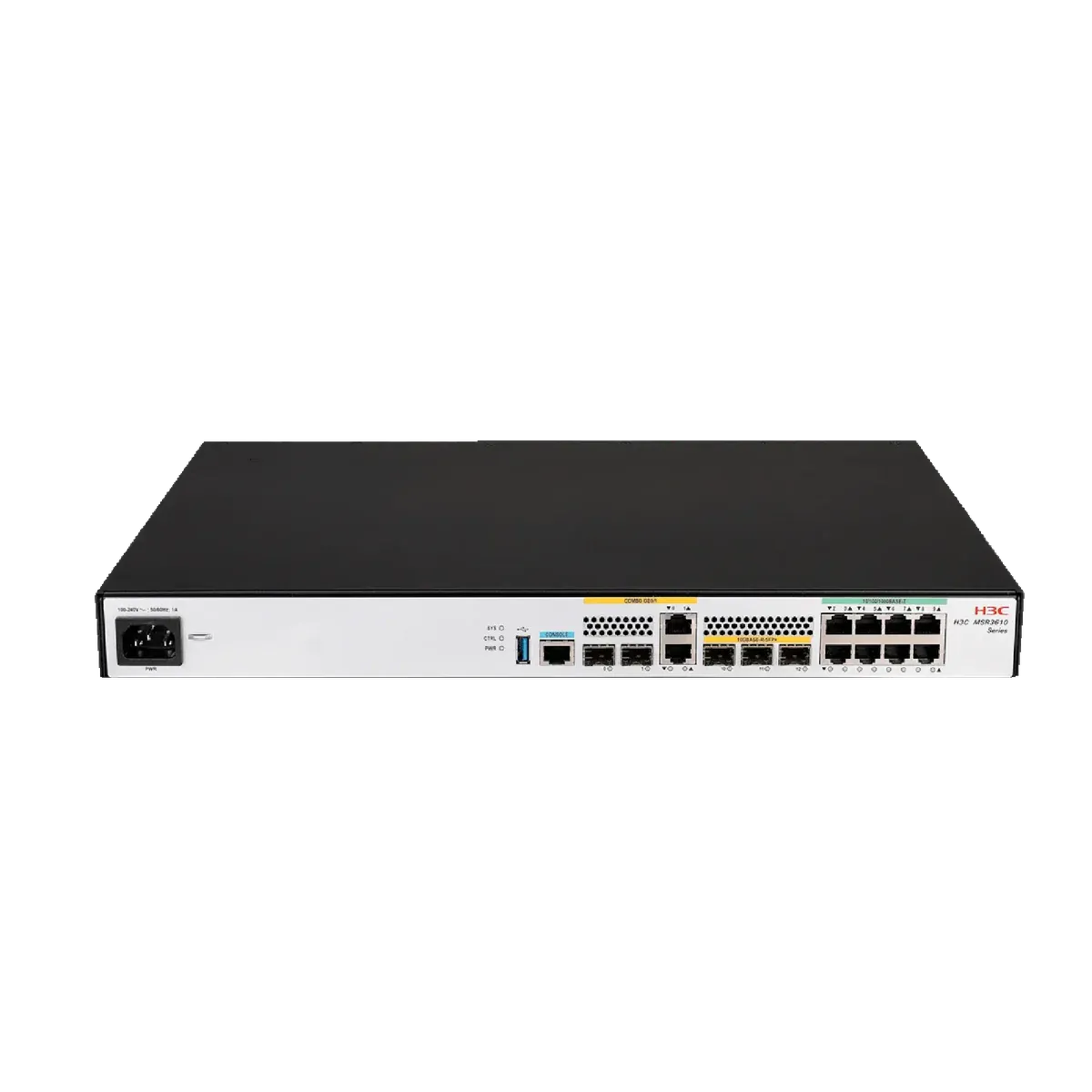

H3C MSR3600 Router Series

Model: MSR3600Series: MSR

High-performance enterprise branch and head-office routers with up to 38 Gbps forwarding and 14 Gbps IPsec, plus full SD-WAN support.

Up to 38 Gbps IP forwarding and 14 Gbps IPsec (MSR3640-X1-HI)
SRv6 and EVPN, controller-ready SD-WAN
Zero-touch deployment via URL, USB or DHCP
DDoS protection against SYN, ACK, RST and UDP floods
Routing matrix architecture separating routing and switching
Models: MSR3620-X1, MSR3640-X1 and MSR3640-X1-HI

Price on Request

Request Price Call 076 018 7080 Download datasheet

Island-wide delivery to all 25 districts

Models	MSR3620-X1, MSR3640-X1, MSR3640-X1-HI
IP forwarding performance (IMIX)	MSR3620-X1: 25 Gbps; MSR3640-X1: 25 Gbps; MSR3640-X1-HI: 38 Gbps
Forwarding performance with ACL+NAT+QoS (IMIX)	MSR3620-X1: 11 Gbps; MSR3640-X1: 12 Gbps; MSR3640-X1-HI: 17 Gbps
IPsec forwarding performance (1400byte)	MSR3620-X1: 10 Gbps; MSR3640-X1: 10 Gbps; MSR3640-X1-HI: 14 Gbps
AD-WAN typical encryption performance (IMIX)	MSR3620-X1: 3 Gbps; MSR3640-X1: 3 Gbps; MSR3640-X1-HI: 4 Gbps
CPU	1.8GHz
Memory (default/maximum)	MSR3620-X1: 4 GB/4 GB; MSR3640-X1: 4 GB/4 GB; MSR3640-X1-HI: 8 GB/8 GB
Flash	1 GB
USB 2.0 port	1
Console port	1
WAN port	MSR3620-X1: 610GE (SFP+) ports 8GE copper ports; MSR3640-X1: 510GE (SFP+) ports 1GE combo port 8GE copper ports; MSR3640-X1-HI: 425GE (SFP28) ports 1610GE (SFP+) ports 10GE copper ports
LAN port	MSR3620-X1: 8*GE copper ports; MSR3640-X1: N/A; MSR3640-X1-HI: N/A
SIC slot	4
HMIM slot	MSR3620-X1: 2; MSR3640-X1: 4; MSR3640-X1-HI: 4
Maximum power consumption	MSR3620-X1: 150 W; MSR3640-X1: 300 W; MSR3640-X1-HI: 300 W
Power redundancy	AC/DC
Power input	AC: 100 to 240 VAC @ 50/60 Hz DC: –48 to –60 VDC
Rack height	MSR3620-X1: 1 RU; MSR3640-X1: 2 RU; MSR3640-X1-HI: 2 RU
Dimensions (H × W × D)	MSR3620-X1: 44.2 × 440 × 470 mm (1.74 × 17.32 × 18.50 in); MSR3640-X1: 88.1 × 440 × 480 mm (3.47 × 17.32 × 18.90 in); MSR3640-X1-HI: 88.1 × 440 × 480 mm (3.47 × 17.32 × 18.90 in)
Operating temperature	0°C to 45°C
Operating altitude	< 5000m
Operating humidity	5 to 95%, non-condensing
EMC s tandards compliance	FCC Part 15 Subpart B CLASS A ICES-003 CLASS A VCCI-CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254.1
Safety standards compliance	FDA 21 CFR Subchapter J UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1
Environment standards compliance	IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-78 IEC 60068-2-30 IEC 60068-2-14
Shock and vibration standards compliance	IEC 60068-2-64 IEC 60068-2-31
Models	MSR3610-X1, MSR3610E-X1, MSR3610E-X1-DP
AD-WAN encryption performance (IMIX)	MSR3610-X1: 600 Mbps; MSR3610E-X1: 1 Gbps; MSR3610E-X1-DP: 1 Gbps
