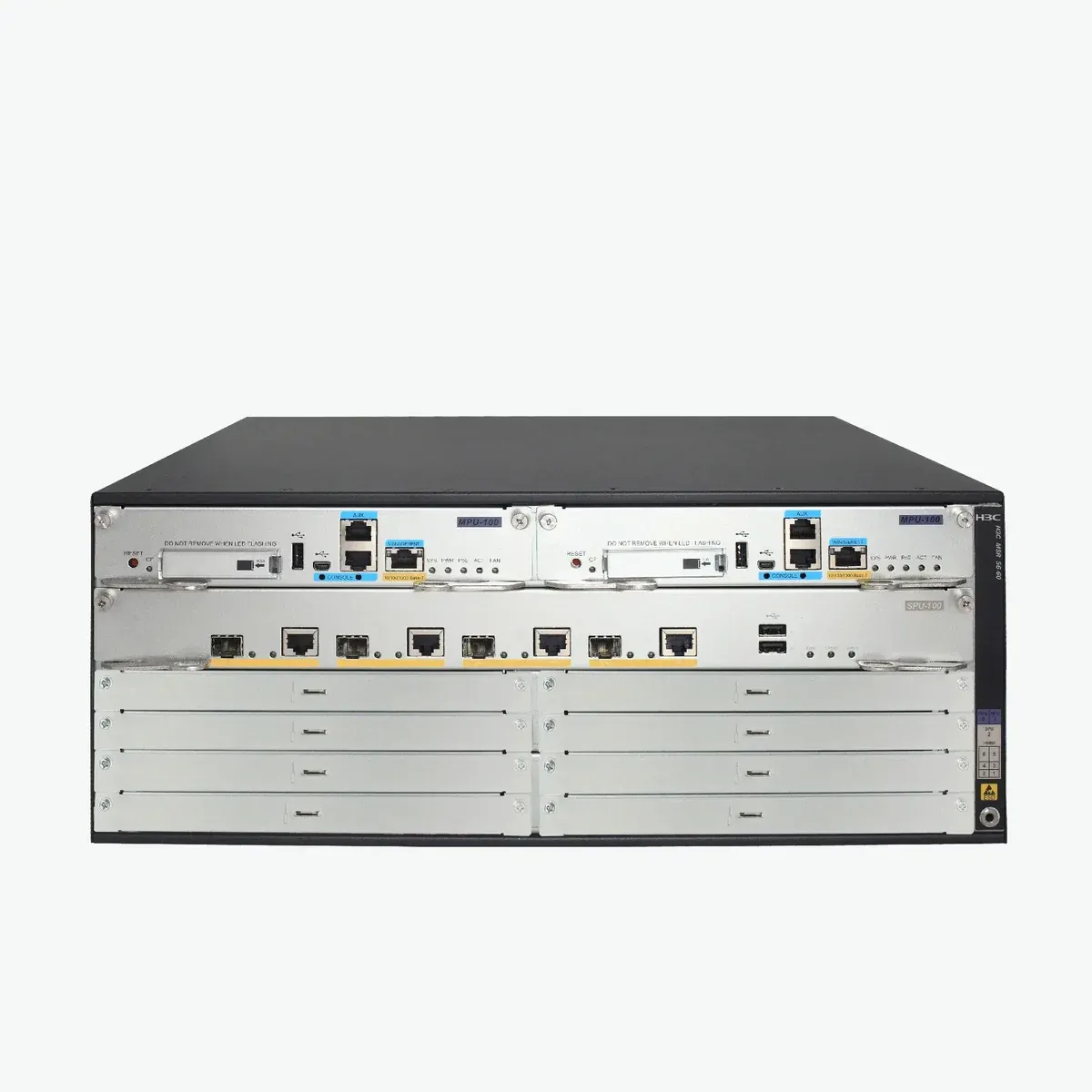

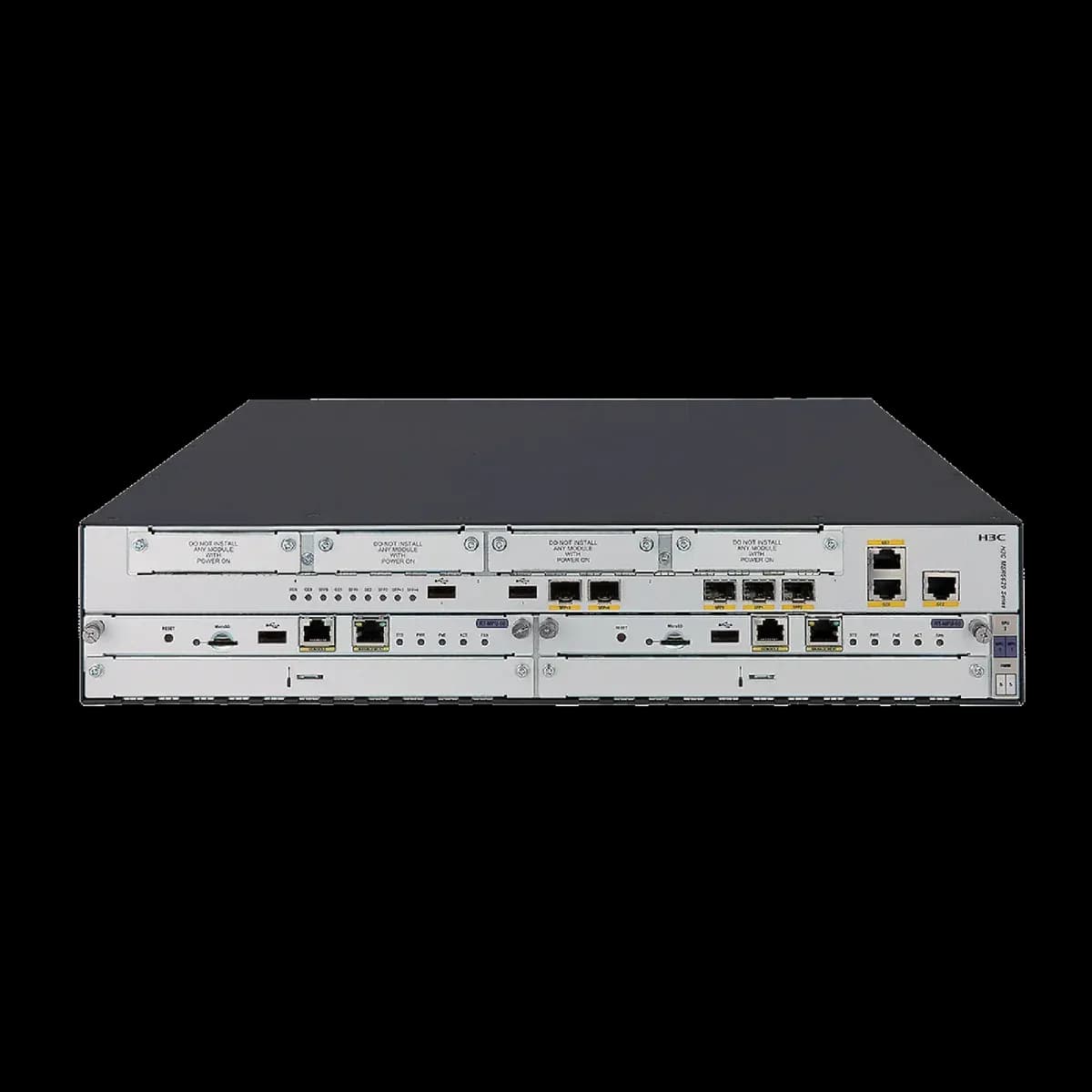

H3C MSR5600 Router Series

Model: MSR5600Series: MSR

Modular high-end enterprise routers with dual MPUs and up to 80 Gbps forwarding for headquarters and regional aggregation.

Up to 80 Gbps IP forwarding with SPE-S3 engines (MSR5660)
Dual MPUs with millisecond switchover and process-level backup
Hardware encryption engines for high IPsec throughput
Open application architecture for VMs, WAN optimisation and third-party apps
Models: MSR5620 and MSR5660

Price on Request

Request Price Call 076 018 7080 Download datasheet

Island-wide delivery to all 25 districts

Models	MSR5620, MSR5660
IP forwarding performance (IMIX)	MSR5620: 17 Gbps; MSR5660: SPU-400-X1: 20 Gbps SPU-600-X1+SPE-S1: 5 Gbps SPU-600-X1+SPE-S3: 80 Gbps SPU-600-X1+2SPE-S1: 10 Gbps SPU-600-X1+2SPE-S3: 160 Gbps
Forwarding performance with ACL+NAT+QoS (IMIX)	MSR5620: 9 Gbps; MSR5660: SPU-400-X1: 18 Gbps SPU-600-X1+SPE-S1: 5 Gbps SPU-600-X1+SPE-S3: 50 Gbps SPU-600-X1+2SPE-S1: 10 Gbps SPU-600-X1+2SPE-S3: 100 Gbps
IPsec forwarding performance (1400byte)	MSR5620: 4.5 Gbps; MSR5660: SPU-400-X1: 14 Gbps SPU-600-X1+SPE-S1: 4 Gbps SPU-600-X1+SPE-S3: 38 Gbps SPU-600-X1+2SPE-S1: 8 Gbps SPU-600-X1+2SPE-S3: 76 Gbps
AD-WAN typical encryption performance (IMIX)	MSR5620: 1.6 Gbps; MSR5660: SPU-400-X1: 2 Gbps SPU-600-X1+SPE-S3: 6 Gbps
CPU	MSR5620: 1.2GHz; MSR5660: 1.5GHz
DRAM	MSR5620: SPU: 2G/2G; MSR5660: SPU-400-X1: 4G/4G SPE-S1: 2G/2G SPE-S3: 8G/8G
Backplane bandwidth	MSR5620: 135Gbps; MSR5660: 670Gbps
USB 2.0 port	MSR5620: 1/2, support for USB 3G/4G modem; MSR5660: 1/1, support for USB 3G/4G modem
Fixed GE port	MSR5620: 3 × GE combo ports 2 × SFP+ ports; MSR5660: SPU-400-X1: 10 × GE combo ports+4 × SFP+ ports SPE-S1: 4 × GE combo ports+4 × SFP ports SPE-S3: 8 × SFP+ ports
Console/AUX port	1
Management Ethernet port	1
SIC slot	MSR5620: 4; MSR5660: N/A
HMIM slot	MSR5620: 2; MSR5660: 6
DHMIM slot	MSR5620: N/A; MSR5660: 1
Max power consumption	450 W
Power module redundancy	MSR5620: Two built-in power modules; MSR5660: Support for built-in AC/DC power modules and N+1 power module redundancy
Power voltage	AC: 100 VAC to 240 VAC @ 50 Hz/60 Hz DC: –48 to –60V
Rack height	MSR5620: 2 RU; MSR5660: 4 RU
Dimensions (H × W × D)	MSR5620: 88.1 × 440 × 480 mm (3.47 × 17.32 × 18.90 in); MSR5660: 175.1 × 440 × 480 mm (6.89 × 17.32 × 18.90 in)
Operating temperature	0ºC to 45ºC
Operating altitude	< 5000m
Operating humidity	5 to 95%, non-condensing
EMC standards compliance	FCC Part 15 Subpart B CLASS A ICES-003 CLASS A VCCI-CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254.1
Safety standards compliance	FDA 21 CFR Subchapter J UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1
Environment standards compliance	IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-78 IEC 60068-2-30 IEC 60068-2-14
Shock and vibration standards compliance	IEC 60068-2-64 IEC 60068-2-31
Layer 2 switching	Ethernet, Ethernet II, VLAN (port-based VLAN, guest VLAN), 802.3x, 802.1p, 802.1Q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server, HDLC, DDR, modem, and ISDN
