H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

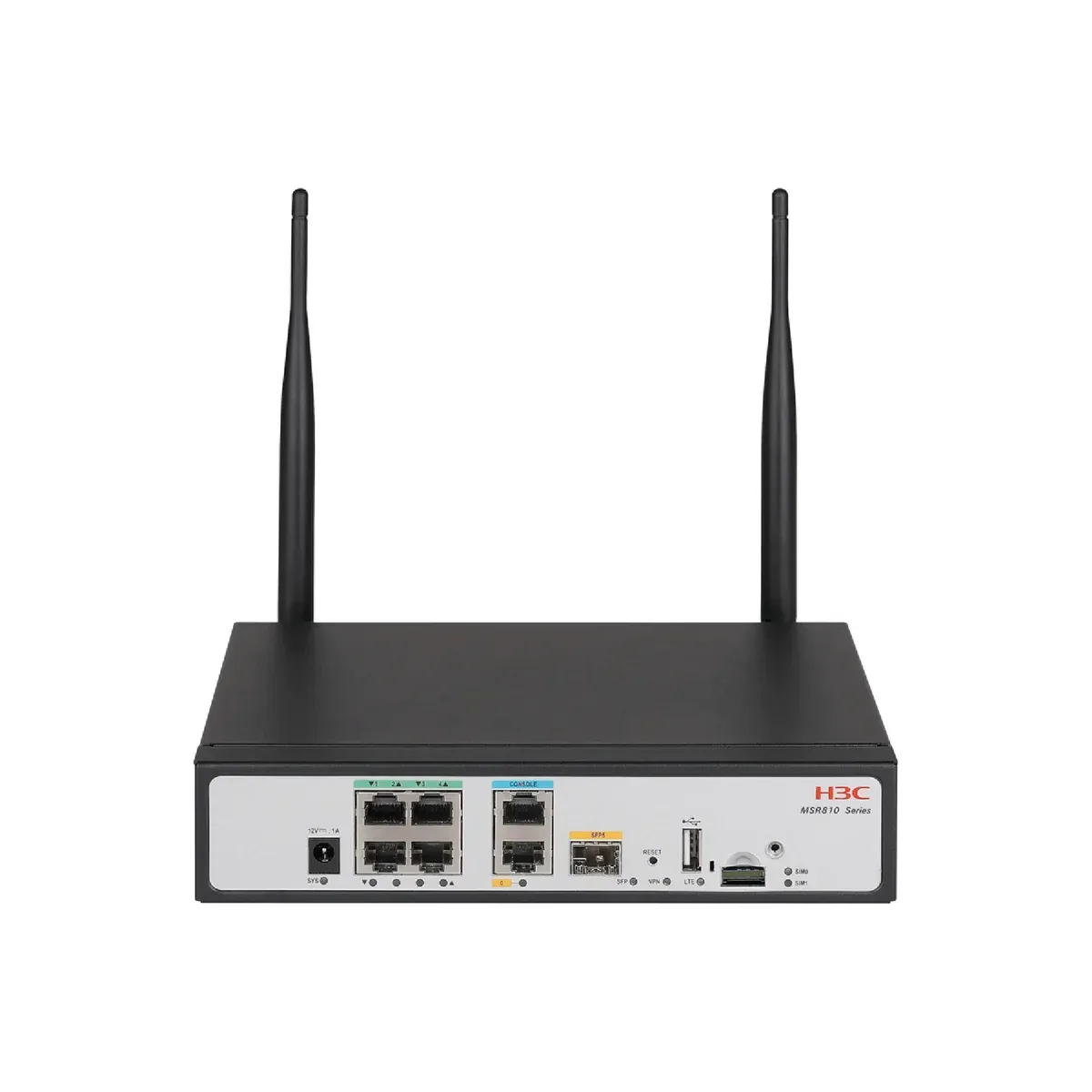

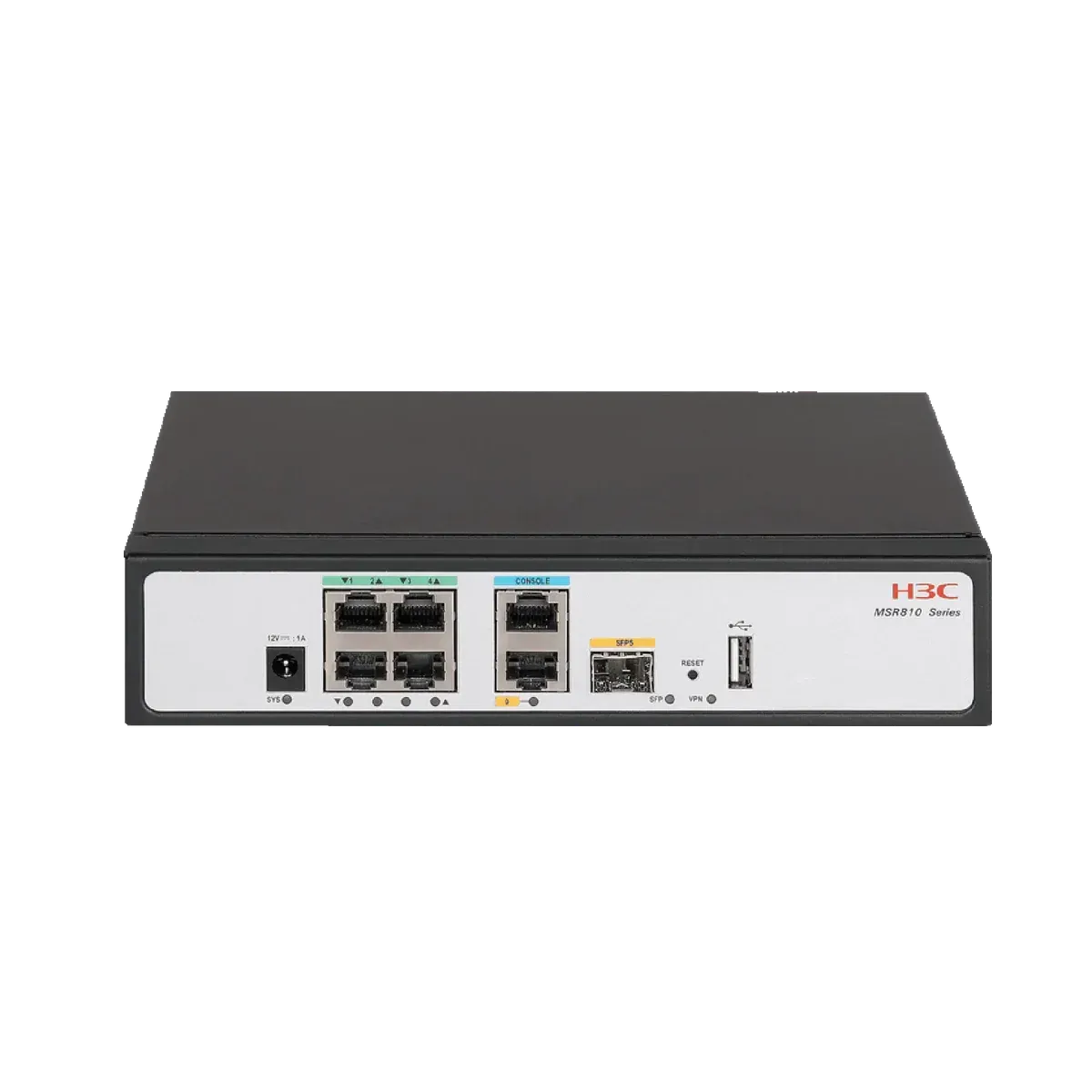

Entry-level enterprise routers for small branches, providing VPN, NAT, firewalling and optional LTE in a compact desktop unit.
Island-wide delivery to all 25 districts
| Models | MSR810-LM-EA, MSR810-EI |
|---|---|
| IP forwarding performance (IMIX) | 400 Mbps |
| Forwarding performance with ACL+NAT+QoS (IMIX) | 200 Mbps |
| IPsec forwarding performance (1400byte) | 70 Mbps |
| AD-WAN typical encryption performance (IMIX) | 40 Mbps |
| CPU | 800MHz |
| Memory | 1 GB |
| Flash (default/maximum) | 256 MB |
| External flash | N/A |
| USB ports | 1 |
| Console ports | 1 |
| WAN ports | 1 × GE copper port 1 × SFP port |
| LAN port | 4 × GE ports (can be configured as WAN interfaces) |
| WLAN | N/A |
| WLAN antenna | N/A |
| Built-in 3G/4G modem * | MSR810-LM-EA: TDD-LTE: · Band 38: 2570 to 2620 M · Band 40: 2300 to 2400 M · Band 41: 2496 to 2690 M FDD-LTE: · Band 1: UL: 1920 to 1980 M, DL: 2110 to 2170 M · Band 3: UL: 1710 to 1785 M, DL: 1805 to 1880 M · Band 5: UL: 824 to 849 M, DL: 869 to 894 M · Band 7: UL: 2500 to 2570 M, DL: 2620 to 2690 M · Band 8: UL: 880 to 915 M, DL: 925 to 960 M · Band 20: UL:832~862M, DL:791~821MHz · Band 28: UL: 703 to 748 M, DL: 758 to 803 M WCDMA/HSPA+: · Band 1: UL: 1920 to 1980 M, DL: 2110 to 2170 M · Band 5: UL: 824 to 849 M, DL: 869 to 894 M · Band 8: UL: 880 to 915 M, DL: 925 to 960 M GSM: · Band 3: UL |
| 3G/4G antenna | MSR810-LM-EA: Stick-like/Magnetic antenna; MSR810-EI: N/A |
| SIM card slot | MSR810-LM-EA: 2 (dual-card one-standby); MSR810-EI: N/A |
| Max power consumption | MSR810-LM-EA: 12W; MSR810-EI: 24W |
| Power voltage(adapter) | External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz |
| Power voltage(device) | DC 12V 2A |
| Dimensions (H × W × D) | MSR810-LM-EA: 44 x 210 x 140 mm; MSR810-EI: 44 × 210 × 130 mm |
| Operating temperature | 0°C to 45°C |
| Operating altitude | < 5000m |
| Operating humidity | 5 to 95%, non-condensing |
| EMC standards compliance | MSR810-LM-EA: FCC Part 15 Subpart B CLASS B ICES-003 CLASS B VCCI CLASS B CISPR 32 CLASS B EN 55032 CLASS B AS/NZS CISPR32 CLASS B CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 ETSI EN 301 489-1 ETSI EN 301 489-52 GB/T 9254.1; MSR810-EI: FCC Part 15 Subpart B CLASS B ICES-003 CLASS B VCCI CLASS B CISPR 32 CLASS B EN 55032 CLASS B AS/NZS CISPR32 CLASS B CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254.1 |
| Safety standards compliance | FDA 21 CFRSubchapter J GB 4943.1 UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1 |
| Radio & health standards compliance | MSR810-LM-EA: ETSI EN 301 908-1 ETSI EN 301 908-2 ETSI EN 301 908-13 EN 301 511 EN 50665 EN IEC 62311; MSR810-EI: N/A |
