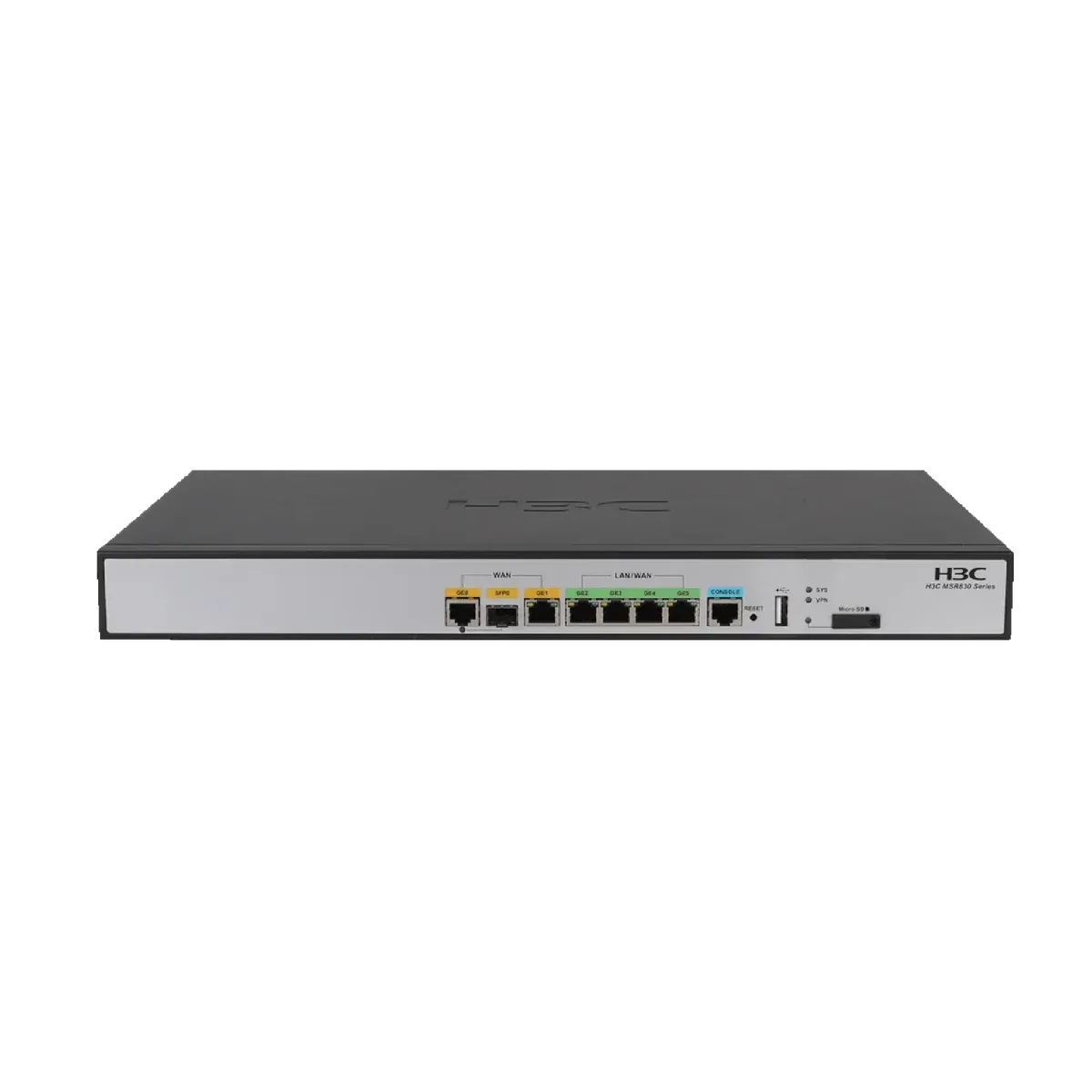

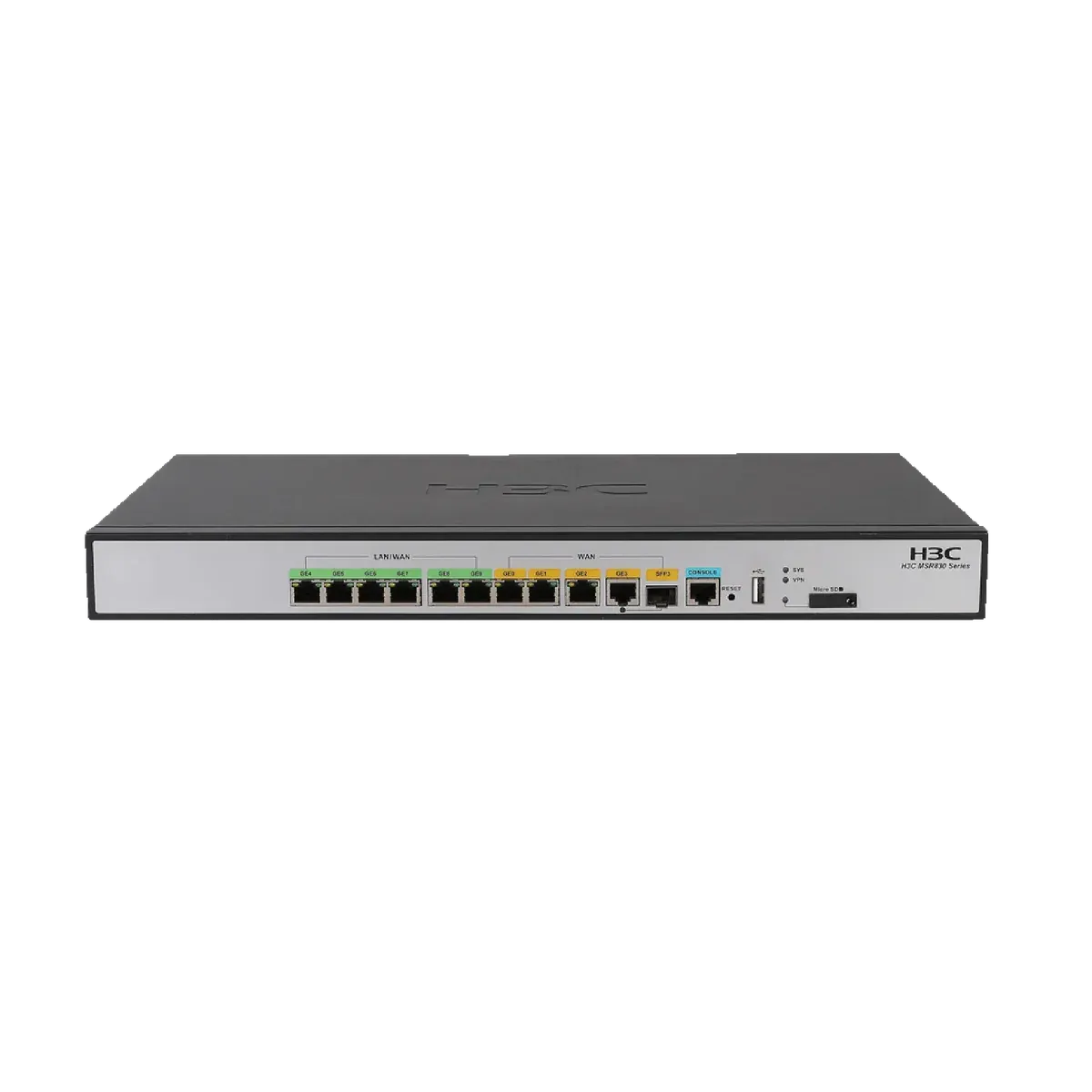

Small-office routers with 1.5 Gbps forwarding, rich VPN and built-in security, ideal as a branch or SME internet gateway.
Island-wide delivery to all 25 districts
| Models | MSR830-6HI-GL, MSR830-10HI-GL |
|---|---|
| IP forwarding performance (IMIX) | 1.5 Gbps |
| Forwarding performance with ACL+NAT+QoS (IMIX) | 1 Gbps |
| IPsec forwarding performance (1400byte) | 250 Mbps |
| AD-WAN typical encryption performance (IMIX) | 200 Mbps |
| CPU | 1.3GHz |
| Memory | 1 GB |
| Flash (default/maximum) | 256 MB/32GB |
| External flash | Micro SD card |
| USB ports | 1 |
| CON ports | 1 |
| WAN ports | MSR830-6HI-GL: 1 × GE copper ports 1 × GE combo port; MSR830-10HI-GL: 3 × GE copper ports 1 × GE combo port |
| LAN ports | MSR830-6HI-GL: 4 × GE ports(can be configured as WAN interfaces); MSR830-10HI-GL: 6 × GE ports (can be configured as WAN interfaces) |
| Console ports | 1 |
| Max power consumption | 22 W |
| Rated voltage | 100 VAC to 240 VAC @ 50 Hz/60 Hz |
| Dimensions (H × W × D) | 44 × 440 × 225 mm (1.73 × 17.32 × 8.86 in) |
| Weight | 2.45 kg (5.40 lb) |
| Operating temperature | 0°C to 45°C |
| Operating altitude | < 5000m |
| Operating humidity | 5 to 95%, non-condensing |
| EMC standards compliance | FCC Part 15 Subpart B CLASS A ICES-003 CLASS A CISPR 32 CLASS A EN 55022 CLASS A AS/NZS CISPR32 CLASS A CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254.1 |
| Safety standards compliance | FDA 21 CFR Subchapter J GB 4943.1 UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1 |
| Environment standards compliance | IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-78 IEC 60068-2-30 IEC 60068-2-14 |
| Shock and vibration standards compliance | IEC 60068-2-64 IEC 60068-2-31 |
| Layer 2 switching | Ethernet, Ethernet II, VLAN (port-based VLAN, guest VLAN), 802.3x, 802.1p, 802.1Q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server, and DDR |
| IP services | Unicast/multicast, TCP, UDP, IP option, IP unnumbered, policy-based routing, NetStream, and sFlow |
| IP application | Ping, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, NTP, and SNTP |
