H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

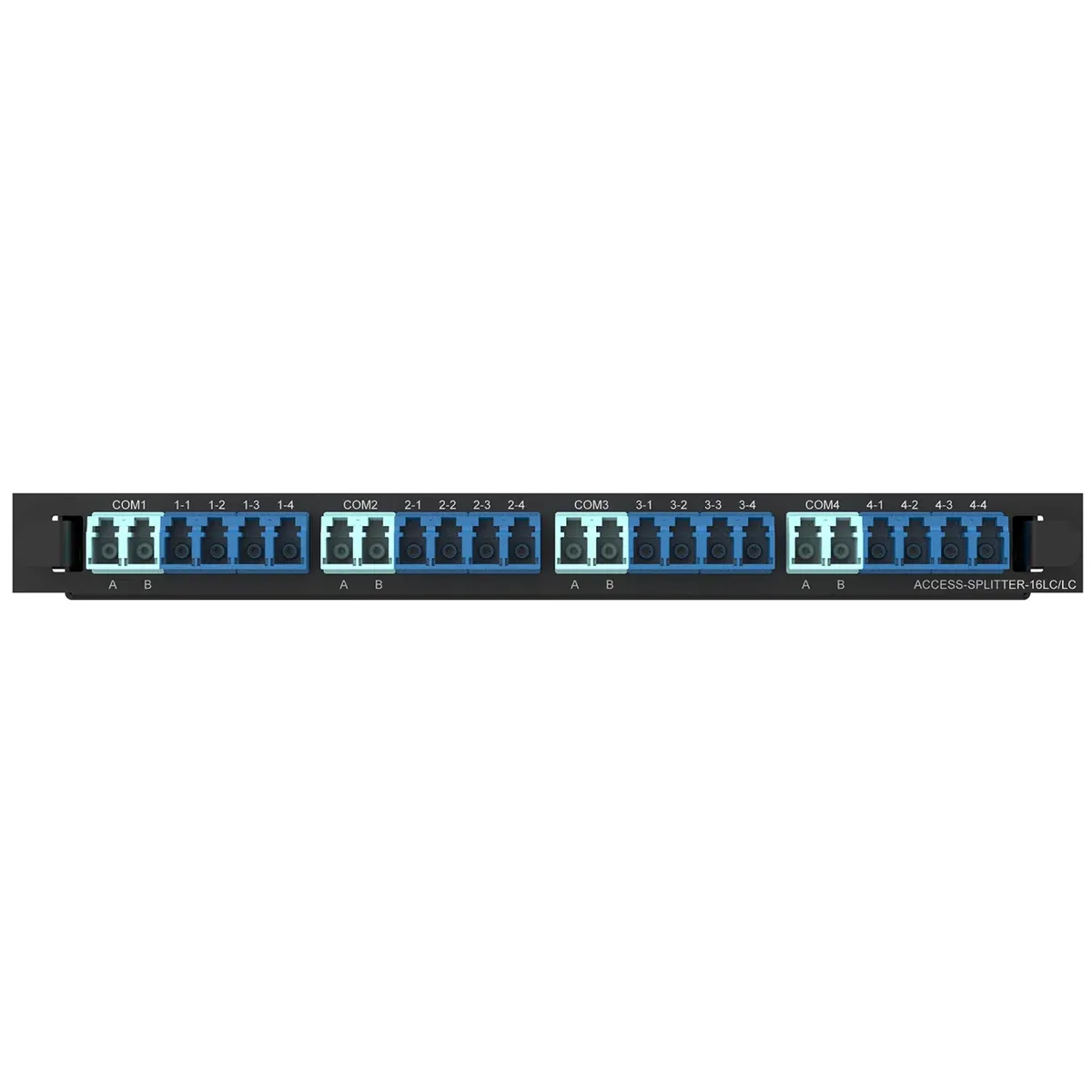

A passive 4-uplink to 16-port optical splitter that lets one 40G/100G port feed multiple 10G/25G access devices over single fibre.
Island-wide delivery to all 25 districts
| Product Description | 4-port uplink (supports dual links), 16-port optical splitter (integrated backup unit), passive, 10km transmission distance |
|---|---|
| Center Wavelength | 1260 – 1620 nm |
| Insertion Loss | <8.2 dB |
| Echo Loss | >45 dB |
| Polarization Dependent Loss | <0.35 dB |
| Channel Uniformity | <1.0 dB |
| Directionality | >50 dB |
| Connector Type | LC/UPC |
| Operating Ambient Temperature | -5°C to +45°C |
| Storage Ambient Temperature | -40°C to +85°C |
| Operating Ambient Humidity | 5% to 95% RH, non-condensing |
| Storage Ambient Humidity | 5% to 95% RH, non-condensing |
| Compliance Standards | GR-1221-Core and GR-1209-Core |
| Dimensions | 190*19*150 mm |

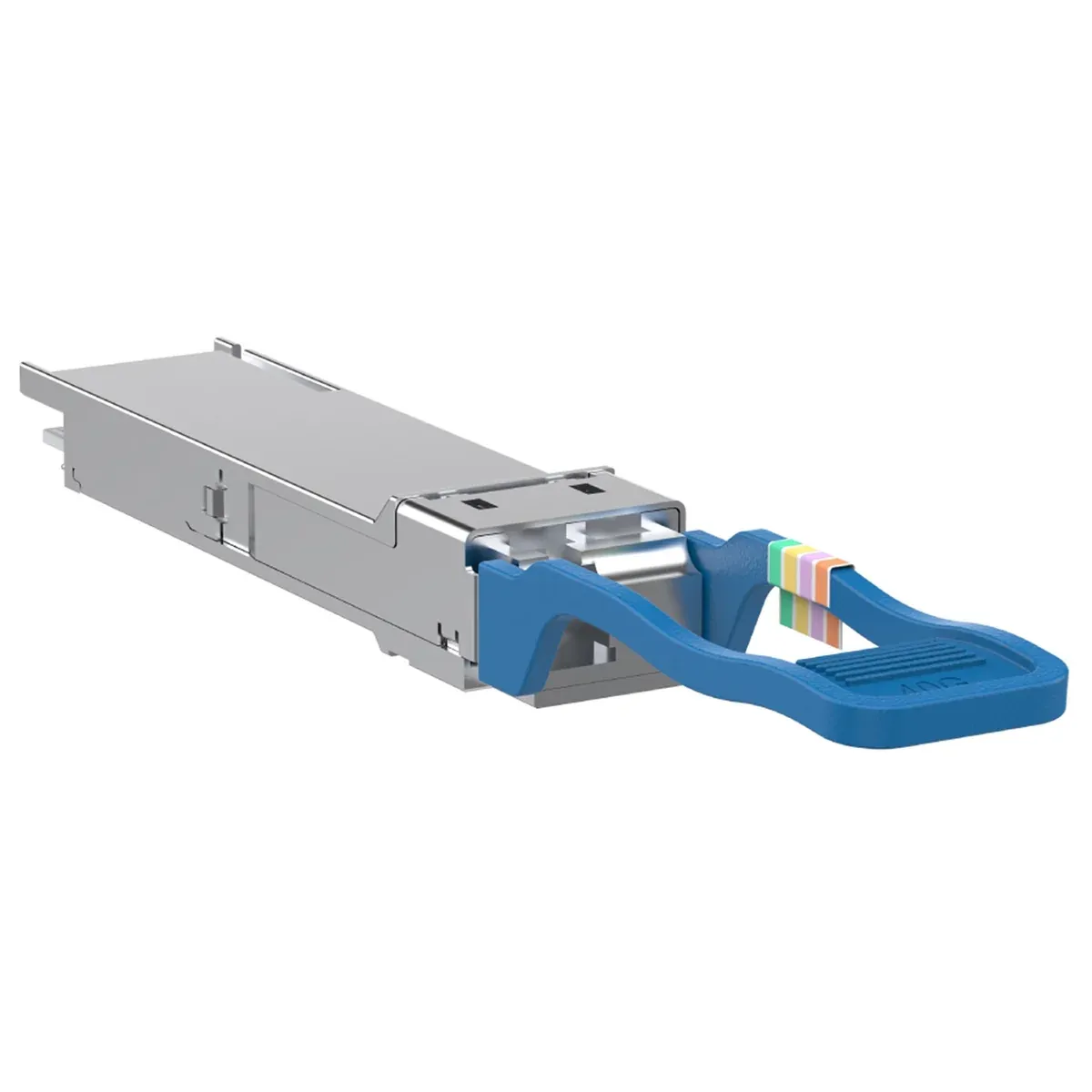

| Models | QSFP-40G-LR4-C, SFP-XG-LX-SM1271-A, SFP-XG-LX-SM1291-A, SFP-XG-LX-SM1311-A, SFP-XG-LX-SM1331-A |
| Center wavelength (nm) | QSFP-40G-LR4-C: Four channels: •Sender (TX):1511 Receiver (RX):1271 •Sender (TX):1531 Receiver (RX):1291 •Sender (TX):1551 Receiver (RX):1311 •Sender (TX):1571 Receiver (RX):1331; SFP-XG-LX-SM1271-A: Sender (TX):1271 Receiver (RX):1511; SFP-XG-LX-SM1291-A: Sender (TX):1291 Receiver (RX):1531; SFP-XG-LX-SM1311-A: Sender (TX):1311 Receiver (RX):1551; SFP-XG-LX-SM1331-A: Sender (TX):1331 Receiver (RX):1571 |
| Fiber Mode | SMF |
| Bit error rate | 1E-12 |
| Connector type | 1*LC |
| Fiber diameter (µm) | 9/125 |
| Transmission distance | 10km |
| Transmission rate | QSFP-40G-LR4-C: 40Gbps; SFP-XG-LX-SM1271-A: 10Gbps; SFP-XG-LX-SM1291-A: 10Gbps; SFP-XG-LX-SM1311-A: 10Gbps; SFP-XG-LX-SM1331-A: 10Gbps |
