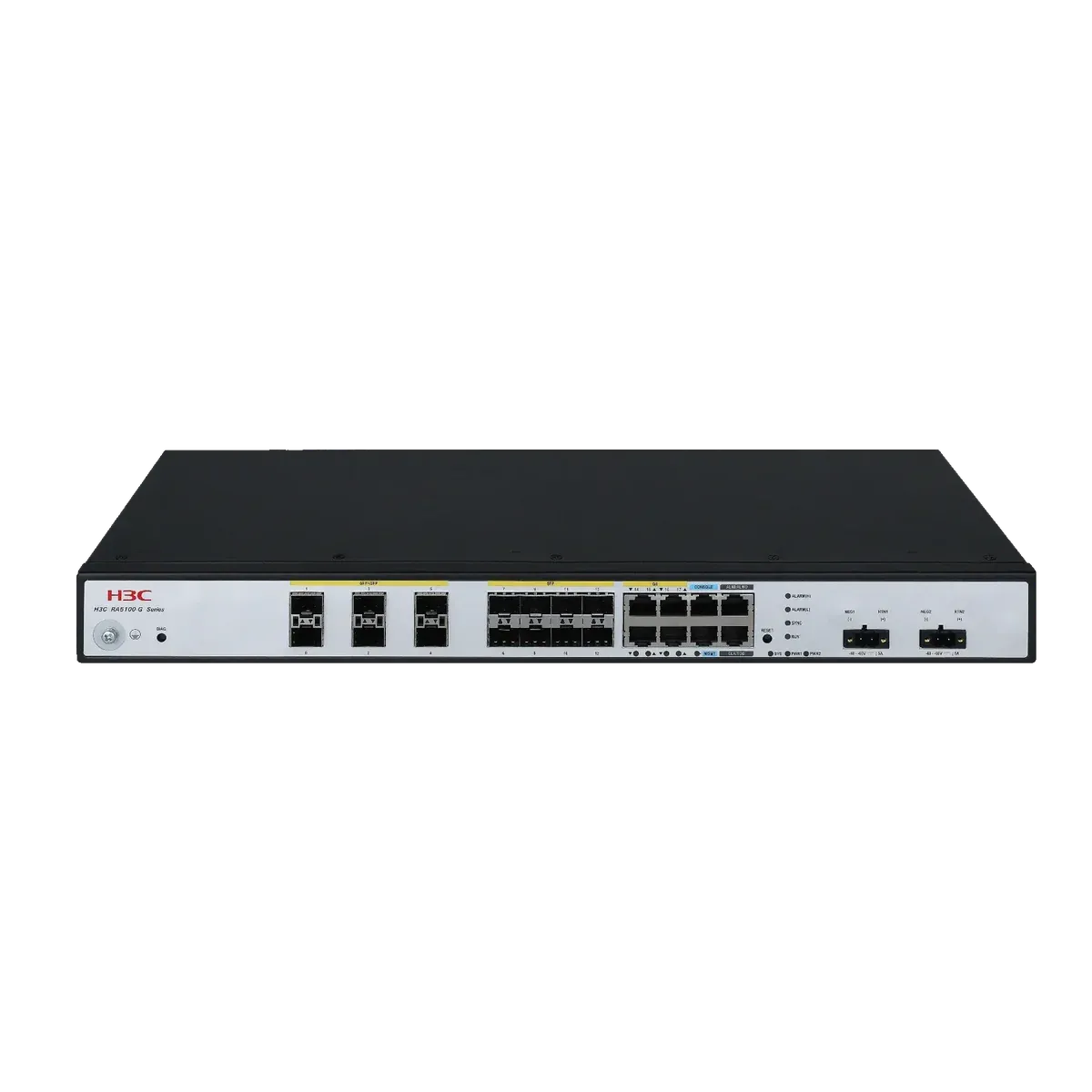

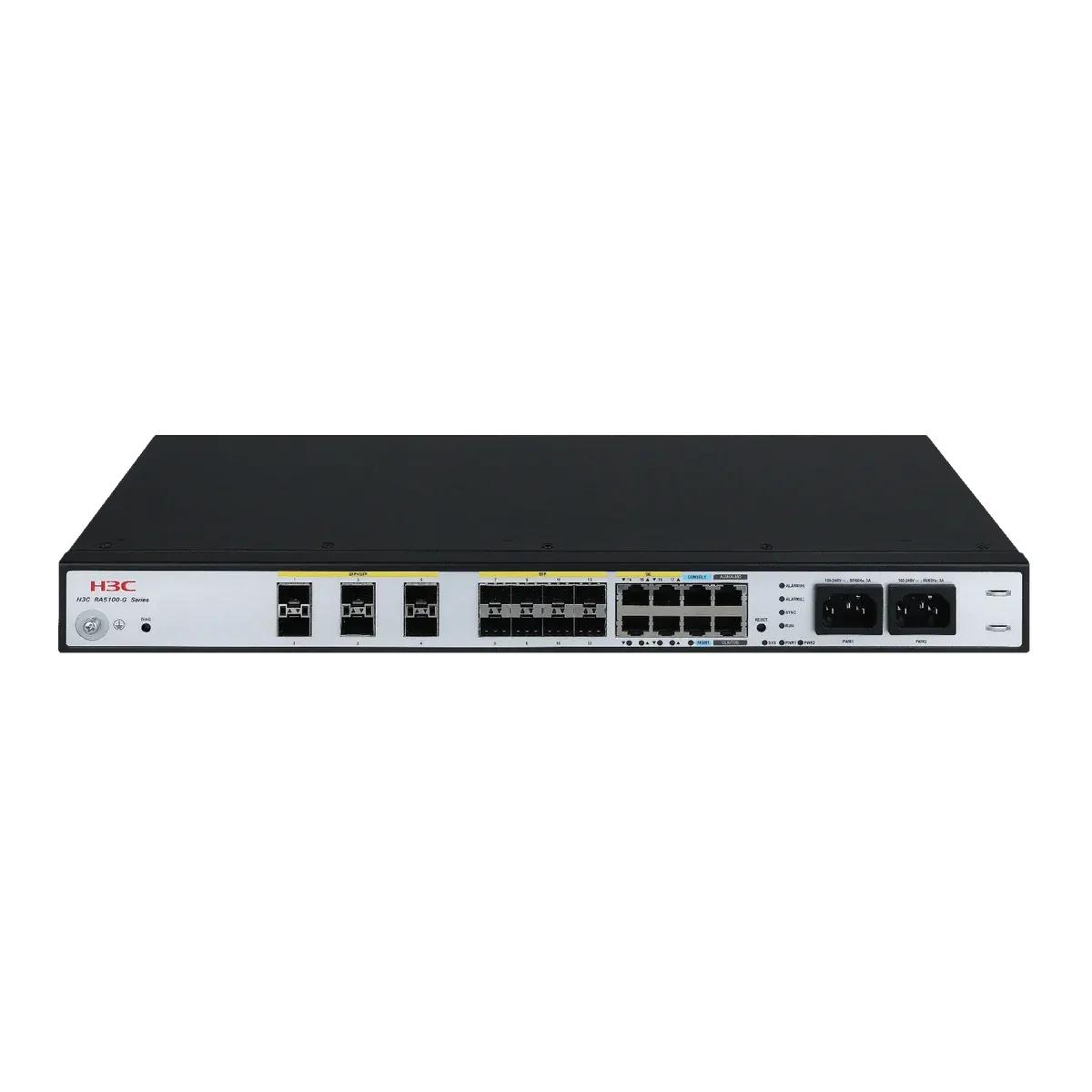

Access and aggregation routers for 5G transport and industrial networks, offering FlexE slicing, precise timing and carrier-grade OAM.
Island-wide delivery to all 25 districts
| Models | RA5100-G(DC/AC), RA5100-G-HI(DC/AC), RA5300(DC/AC) |
|---|---|
| Switching capacity | RA5100-G(DC/AC): 144Gbps; RA5100-G-HI(DC/AC): 1.24Tbps; RA5300(DC/AC): 1.6Tbps |
| Forwarding performance | RA5100-G(DC/AC): 214Mpps; RA5100-G-HI(DC/AC): 590Mpps; RA5300(DC/AC): 590Mpps |
| Master control | RA5100-G(DC/AC): Centralized; RA5100-G-HI(DC/AC): Centralized; RA5300(DC/AC): 1:1 redundancy |
| Fixed interface | RA5100-G(DC/AC): 6*10GE/GE+8*GEF/FEF+4*GE; RA5100-G-HI(DC/AC): 2*100GE/50GE/40GE+16*25GE/10GE/GE +8*GEF/FEF+4*GE+8*GEF(CSFP); RA5300(DC/AC): N/A |
| RIB v4/v6 | 1M/1M |
| FIB v4/v6 | 1M/1M |
| MAC | 96K |
| Reset key | 1 |
| HRIC slot | RA5100-G(DC/AC): N/A; RA5100-G-HI(DC/AC): N/A; RA5300(DC/AC): AC: 7/DC: 8 |
| Network management interface | 1GE/FE |
| ALMI/ALMO | 1(RJ45, 3 in 1 out) |
| TOD | 1(RJ45) |
| CLK | 1(RJ45) |
| Redundant power supply | RA5100-G(DC/AC): 1+1 redundancy; RA5100-G-HI(DC/AC): 1+1 redundancy; RA5300(DC/AC): 1+1 redundancy (pluggable) |
| DC power supply | -48 ~ -60V |
| AC power supply | RA5100-G(DC/AC): 100-240Vac, 50/60Hz, 3A or DC 240V/2A; RA5100-G-HI(DC/AC): 100-240Vac, 50/60Hz, 3A or DC 240V/2A; RA5300(DC/AC): 200~240V/100-127VAC dual live wire, 50/60Hz, 10-6A or DC 240V/5A |
| Fan frame | RA5100-G(DC/AC): 1(2*Fans); RA5100-G-HI(DC/AC): 1(3*Fans); RA5300(DC/AC): 1 (pluggable) |
| Frame height (U height) | RA5100-G(DC/AC): 1RU; RA5100-G-HI(DC/AC): 1RU; RA5300(DC/AC): 3.5RU |
| Outward size (W × D × H, mm) | RA5100-G(DC/AC): 440*205*44; RA5100-G-HI(DC/AC): 440*205*44; RA5300(DC/AC): 440*220*163.5 |
| Aseismic grade | level-8 |
| Operating temperature | -20-60ºC |
| Operational altitude | 5000m |
| Ambient relative humidity | 5~95%, non-condensing |
| EMC | CISPR 32 EN 55032 AS/NZS CISPR 32 CISPR 24 EN 55024 EN 300 386 FCC Part 15 Subpart B ICES-003 Issue 6 VCCI-CISPR 32 GB/T 9254 |
| Security | UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J |
| Layer 2 protocol | Support Ethernet, Ethernet II, VLAN, 802.1p, 802.1Q, LLDP, QinQ, 802.3d (STP), 802.3w (RSTP), 802.3s (MSTP), IEEE 802.3ad (link aggregation), Port mirroring, IEEE 802.3ah OAM, DHCP Snooping, IGMP/MLD Snooping |
| Application of IP | Support Eth-Trunk Support FlexE Network Slicing Support Ping, Trace Support DHCP Server, DHCP Relay, DHCP Client Support DNS client, DNS Proxy Support NTP, SNTP |
