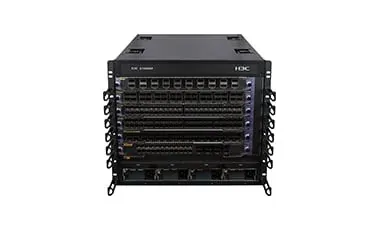

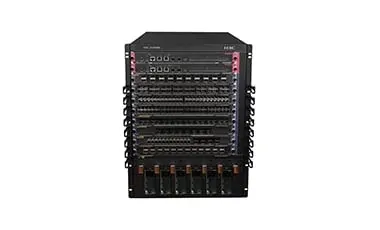

Proven modular core switches for enterprise cores, data centres and metro networks, with a CLOS fabric and IRF2/IRF3 virtualisation.
Island-wide delivery to all 25 districts
| Models | S10504, S10506, S10508, S10508-V, S10510, S10512 |
|---|---|
| Switching capacity | S10504: 17.28Tbps/ 76.8Tbps; S10506: 20.74Tbps/ 115.2Tbps; S10508: 27.65Tbps/ 153.6Tbps; S10508-V: 27.65Tbps/ 153.6Tbps; S10510: 34.56Tbps/ 204.8Tbps; S10512: 41.47Tbps/ 217.6Tbps |
| Forwarding capacity | S10504: 3360Mpps/ 24000Mpps; S10506: 5040Mpps/ 36000Mpps; S10508: 6720Mpps/ 48000Mpps; S10508-V: 6720Mpps/ 48000Mpps; S10510: 8400Mpps/ 60000Mpps; S10512: 10080Mpps/ 72000Mpps |
| MPU slots | 2 |
| LPU slots | S10504: 4; S10506: 6; S10508: 8; S10508-V: 8（Vertical）; S10510: 10; S10512: 12 |
| Switching fabric module slots | 4 |
| Redundancy | Redundant MPUs, switching fabric modules, power modules, and fan trays |
| Ethernet | IEEE 802.1Q DLDP LLDP Static MAC configuration Limited MAC learning Port mirroring and traffic mirroring Port aggregation, port isolation, and port mirroring IEEE 802.1D (STP)/802.1w (RSTP)/802.1s (MSTP) IEEE 802.3ad (dynamic link aggregation), static port aggregation, and multi-chassis link aggregation |
| Routing | Static routing, RIP, OSPF, IS-IS, and BGP4 IPv4/IPv6 ECMP VRRP IPv4/IPv6 Policy-based routing IPv4/IPv6 Routing policy IPv4/IPv6 dual stack IPv6 static routing, RIPng, OSPFv3, IS-ISv6, and BGP4+ VRRPv3 Pingv6, Tenetv6, FTPv6, TFTPv6, DNSv6, and ICMPv6 IPv4-to-IPv6 transition technologies, such as IPv6 manual tunnel, 6to4 tunnel, ISATAP tunnel, GRE tunnel, and auto IPv4-compatible IPv6 tunnel |
| Multicast | PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, and Any-RP IGMP V1/V2/V3 and IGMP V1/V2/V3 snooping PIM6-DM, PIM6-SM, and PIM6-SSM MLD V1/V2 and MLD V1/V2 snooping Multicast policies and Multicast QoS |
| ACL/QoS | Standard and extended ACLs Ingress and egress ACLs VLAN ACLs Global ACLs Diff-Serv QoS SP, WRR, SP+WRR Traffic shaping Congestion avoidance Priority marking and remarking 802.1p, TOS, DSCP, and EXP priority mapping H-QoS |
| SDN/ OPENFLOW | OpenFlow 1.3 Multiple controllers (EQUAL, master/slave) Multiple tables flow Group table Meter |
| VXLAN | VXLAN L2 switching VXLAN VTEP IS-IS+ENDP distributed control plane OpenFlow+Netconf centralized control plane |
| MPLS/VPLS | L3 MPLS VPN L2 VPN: VLL (Martini, Kompella) MCE MPLS OAM VPLS, VLL Hierarchy VPLS, QinQ+VPLS P/PE function LDP |
| Security | Hierarchical user management and password protection EAD Portal authentication MAC authentication IEEE 802.1x and IEEE 802.1x SERVER AAA/Radius HWTACACS SSHv1.5/SSHv2 Basic and advanced ACLs for packet filtering OSPF, RIPv2, BGPv4 pain text and MD5 authentication IP address, VLAN ID, MAC address multiple binding combination uRPF Active/standby data backup |
| System mgmt | Loading and upgrading through XModem/FTP/TFTP SNMP v1/v2/v3 sFlow, NetStream RMON and groups 1, 2, 3 and 9 NTP clocks Fault alarm and automatic fault recovery System logs Device status monitoring mechanism, including the CPU engine, backplane, chips and other key components |
| HA | Independent switching fabric modules 1+1 redundancy for key components such as MPUs and M+N redundancy for power modules N+1 redundancy for switching fabric modules Passive backplane Hot swapping for all components Real-time data backup on active/standby MPUs Hot patching NSR/GR for OSFP/BGP/IS-IS/RSVP Port aggregation and multi-card link aggregation BFD for VRRP/BGP/IS-IS/OSPF/RSVP/static routing, with a failover detection time less than 50 milliseconds Ethernet OAM (802.1ag and 802.3ah) RPR/RRPP DLDP VCT Smart-Link ISSU |
| Green | EEE(802.3az) |
| Operating environment | Temperature: 0°C to 45°C (32°F to 113°F) Humidity: 10% to 95% (non-condensing) |
| Input voltage | 100～240V AC; 50/60Hz; 16A |
| Dimension (H x W x D)/mm | S10504: 353x440x660 8RU; S10506: 353x440x660 8RU; S10508: 620x440x660 14RU; S10508-V: 886x440x660 20U; S10510: 620x440x660 14RU; S10512: 797x440x660 18RU |
