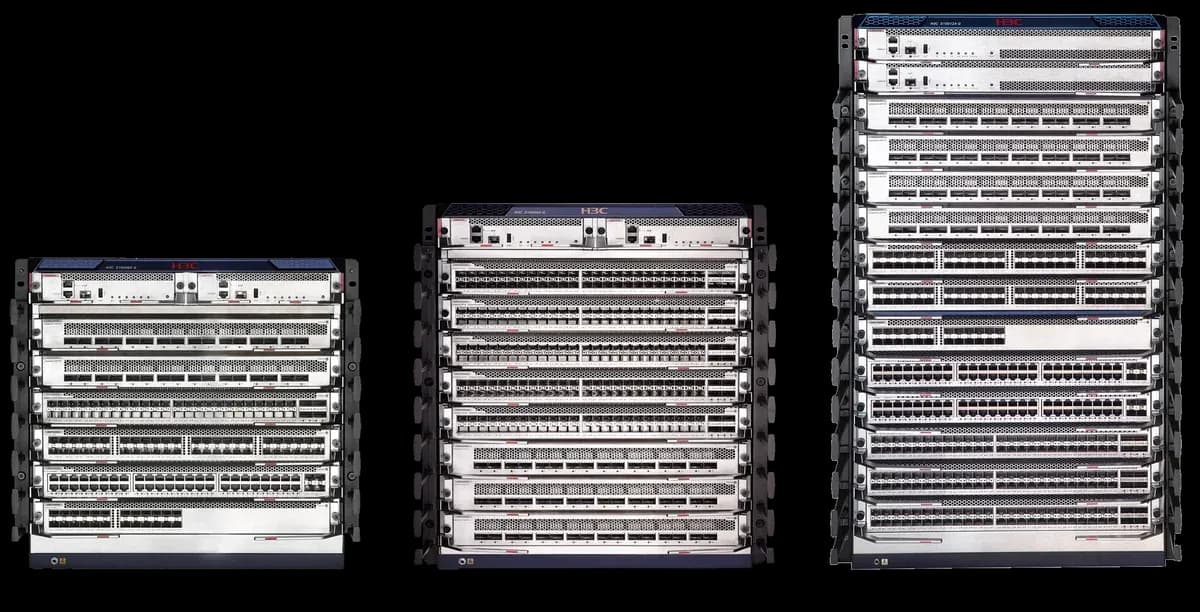

Modular core switches for large campuses and data centres, built on an orthogonal CLOS+ fabric with sub-microsecond latency and optional high-density PoE.
Island-wide delivery to all 25 districts
| Models | S10506X-G S10506X-G-PoE, S10508X-G, S10512X-G S10512X-G-PoE |
|---|---|
| Switching capacity | S10506X-G S10506X-G-PoE: 43.2Tbps/76.8Tbps*; S10508X-G: 57.6Tbps/153.6Tbps*; S10512X-G S10512X-G-PoE: 86.4Tbps/230.4Tbps* |
| Forwarding capacity | S10506X-G S10506X-G-PoE: 19200Mpps; S10508X-G: 25600Mpps; S10512X-G S10512X-G-PoE: 68400Mpps |
| MPU slots | 2 |
| MPU console ports | 1x RJ-45 |
| MPU MGMT ports | 1x 10/100/1000M RJ-45 1x 1000M SFP |
| MPU USB port | 1 |
| LPU slots | S10506X-G S10506X-G-PoE: 6; S10508X-G: 8; S10512X-G S10512X-G-PoE: 12 |
| Switching fabric module slots | S10506X-G S10506X-G-PoE: 4; S10508X-G: 6; S10512X-G S10512X-G-PoE: S10512X-G: 6 S10512X-G-PoE: 4 |
| Fan trays | S10506X-G S10506X-G-PoE: 2; S10508X-G: 3; S10512X-G S10512X-G-PoE: S10512X-G: 3 S10512X-G-PoE: 2 |
| Power modules | S10506X-G S10506X-G-PoE: 4 (non-PoE)+8 (PoE); S10508X-G: 6; S10512X-G S10512X-G-PoE: 8 (non-PoE)+16 (PoE) |
| Hardware architecture | Orthogonal CLOS+ |
| Redundancy | Redundant MPUs, switching fabric modules, power modules, and fan trays |
| Operating environment | Temperature: 0ºC to 45ºC (32°F to 113°F) Humidity: 5% to 95% (non-condensing) |
| Input voltage | AC:100V~240V DC:-48V~-60V |
| Maximum power consumption | S10506X-G S10506X-G-PoE: 3012W; S10508X-G: 4374W; S10512X-G S10512X-G-PoE: 6309W |
| MTBF(Year) | S10506X-G S10506X-G-PoE: 44.6; S10508X-G: 36.8; S10512X-G S10512X-G-PoE: 34.0 |
| MTTR(Hour) | 0.5 |
| Dimension (H x W x D)/mm | S10506X-G S10506X-G-PoE: 442×440×520 10U; S10508X-G: 531×440×640 12RU; S10512X-G S10512X-G-PoE: S10512X-G: 796×440×640; 18RU S10512X-G-PoE: 796×440×520; 18RU |
| Fully loaded weight | S10506X-G S10506X-G-PoE: S10506X-G: < 85 kg/187.4 lb S10506X-G-PoE: < 95 kg/209lb; S10508X-G: < 130 kg < 286.6 lb; S10512X-G S10512X-G-PoE: S10512X-G: < 180 kg / < 396.8 lb S10512X-G-PoE: < 160 kg / < 352.73 lb |
| Ethernet | IEEE 802.1Q VLAN DLDP LLDP Static MAC configuration MAC learning limit Port mirroring and traffic mirroring Mirroring, SPAN, RSPAN, ERSPAN with Max. 128 mirror groups Port aggregation,LACP, port isolation, and port mirroring 802.1d(STP)/802.1w(RSTP)/802.1s(MSTP)/PVST/PVST+ STP Root Guard BPDU Guard, BPDU filter IEEE 802.3ad (dynamic link aggregation), static port aggregation, and multi-chassis link aggregation IEEE 802.1P (CoS priority) IEEE 802.1ad (QinQ), selective QinQ and Vlan mapping GVRP RRPP (Rapid Ring Protection Protocol) Jumbo frame SuperVLAN PVLAN Guest VLAN Voice VLAN MVRP(IEEE802. |
| Routing | Static routing, RIPv1/v2, OSPF, IS-IS, and BGP4 ARP proxy ARP snooping DHCP client, DHCP server, DHCP relay, DHCP snooping, DHCP option82 DHCPv6 client, DHCPv6 server, DHCPv6 relay, DHCPv6 snooping, DHCPv6 option82 IPv4/IPv6 ECMP IPv4/IPv6 Policy-based routing IPv4/IPv6 Routing policy IPv4/IPv6 dual stack IPv6 static routing, RIPng, OSPFv3, IS-ISv6, and BGP4+ Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6 IPv4-to-IPv6 transition technologies, such as IPv6 manual tunnel, 6to4 tunnel, ISATAP tunnel, GRE tunnel\IPv4-compatible IPv6 tunnel |
| Multicast | PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, and Any-RP IGMP V1/V2/V3\IGMP V1/V2/V3 Snooping IGMP Filter and IGMP Fast leave PIM snooping, IPv6 Pim-snooping Multicast VLAN PIM6-DM\PIM6-SM\PIM6-SSM MLD V1/V2, MLD V1/V2 Snooping Multicast policy and Multicast QoS |
| ACL/QoS | Standard and extended ACLs Ingress and Egress ACL VLAN ACL Global ACL Ingress/Egress CAR Diff-Serv QoS 802.1P/DSCP Priority marking and remarking 802.1p, TOS, DSCP, and EXP priority mapping Flexible queue scheduling algorithms including SP, WRR, SP+WRR, WFQ Traffic shaping Congestion avoidance, Tail-Drop and WRED Ingress/Egress counting COPP |
| SDN/OpenFlow | Support SDN solution (AD-Campus) OpenFlow 1.3 Multiple controllers (EQUAL, master/slave) Multiple tables flow Group table Meter |
| VXLAN | VXLAN L2 switching VXLAN L3 routing VXLAN VTEP L2 VxLAN gateway, L3 VxLAN gateway Distributed VxLAN gateway, Centralized VxLAN gateway IPv4/IPv6 VxLAN tunnel VXLAN OAM ping/tracert IS-IS+ENDP distributed control plane MP-BGP+EVPN distributed control plane, EVPN-DCI* EVPN ESI* OpenFlow+Netconf centralized control plane |
| Programmability and automation | Ansible Auto DevOps by using Python, NETCONF, TCL, and Restful APIs for automated network programming |
| Lossless Ethernet | PFC* ECN* RoCEv2* |
