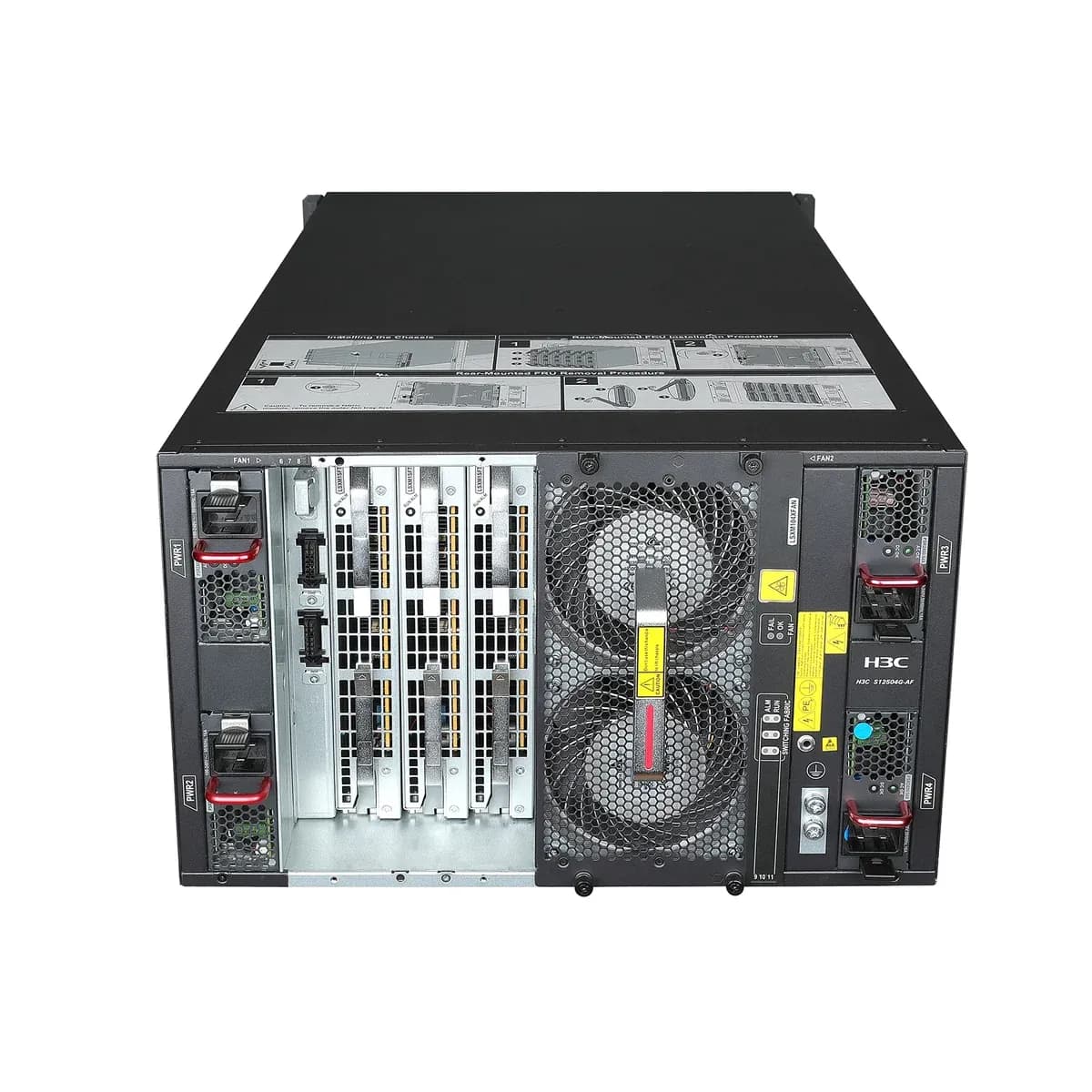

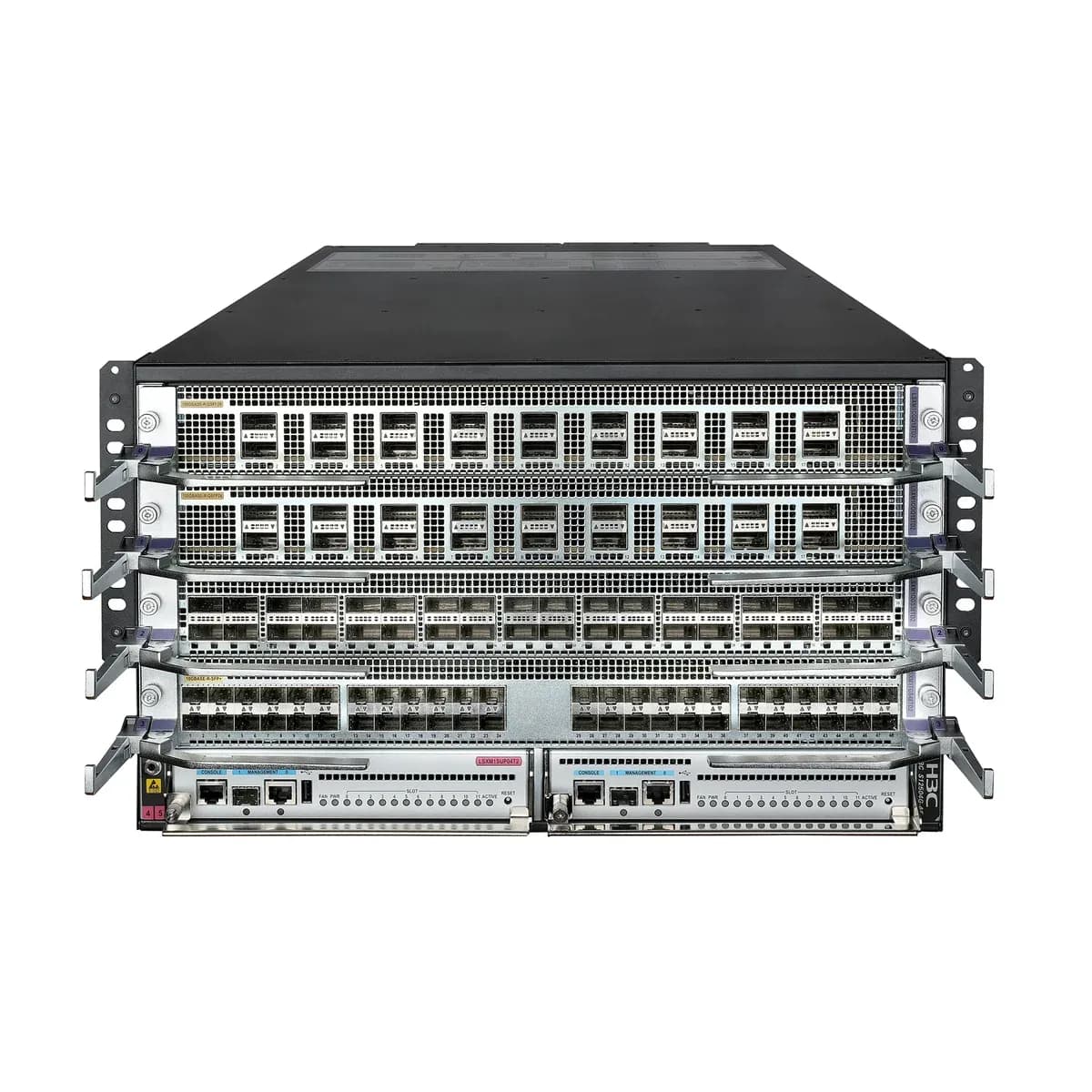

AI-enabled data-centre core switches with a CLOS+ multi-plane fabric, on-board GPU analytics and lossless RoCE for compute and storage networks.
Island-wide delivery to all 25 districts
| Models | S12504G-AF, S12508G-AF, S12516G-AF |
|---|---|
| Buffer | 32M(T series LPU) 36M(S series LPU) |
| Switching capacity | S12504G-AF: 57.6T/387Tbps; S12508G-AF: 115.2T/516Tbps; S12516G-AF: 230.4T/1032Tbps |
| Throughput | S12504G-AF: 21600Mpps; S12508G-AF: 43200Mpps; S12516G-AF: 86400Mpps |
| MPU slots | 2 |
| LPU slots | S12504G-AF: 4; S12508G-AF: 8; S12516G-AF: 16 |
| Maximum power consumption | S12504G-AF: 5800 W; S12508G-AF: 12000 W; S12516G-AF: 22400W |
| Weight (full configuration) | S12504G-AF: ≤ 110 kg ≤ 242.5 lb; S12508G-AF: ≤ 190 kg ≤ 418.9 lb; S12516G-AF: ≤ 352 kg ≤ 776 lb |
| Dimensions (H x W x D) | S12504G-AF: 264 x 440 x 857 mm (6U) 10.4 x 17.3 x 33.7 in; S12508G-AF: 531 x 440 x 857 mm (12U) 20.9 x 17.3 x 33.7 in; S12516G-AF: 931 x 440 x 857 mm (21U) 36.7 x 17.3 x 33.7 in |
| Switching fabric module slots | 6 |
| MPU name | LSXM1SUP04T2 / LSXM2SUPT2 |
| MPU processor | Quad Core 2.2GHz |
| MPU SDRAM | 16 GB |
| MPU flash | T series： 8 GB LSXM1SUPS2 used in the S12508G-AF: 1G LSXM3SUPS2 used in the S12508G-AF/S12516G-AF:2G LSXM3SUP04S2 used in the S12504G-AF:2G |
| MPU console port | 1 |
| MPU MGMT ports | 2 |
| MPU USB port | 1 |
| Redundancy | Redundant MPUs, switching fabric modules, power modules, and fan trays |
| Temperature | Operating temperature: 0°C to 40°C (32°F to 104°F) Storage temperature: -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 95% (non-condensing) |
| Green | Support 802.3az energy efficient Ethernet |
| Safety | UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1 AS/NZS 60950-1 FDA 21 CFR Subchapter J GB 4943.1 |
| Device virtualization | IRF2.0 M-LAG(DRNI) S-MLAG |
| Network virtualization | BGP-EVPN VxLAN |
| VXLAN | L2 VxLAN gateway L3 VxLAN gateway Distributed VxLAN gateway Centralized VxLAN gateway EVPN VxLAN manual configured VxLAN IPv4 VxLAN tunnel IPv6 VxLAN tunnel QinQ VxLAN access VxLAN DCI, vxlan mapping and route regeneration to interconnect DCs by L2 and L3 VxLAN multicast EVPN-VxLAN multicast |
| MPLS/VPLS | Support L3 MPLS VPN Support L2 VPN: VLL (Martini, Kompella) Support MCE Support MPLS OAM Support VPLS, VLL Support hierarchical VPLS and QinQ+VPLS access Support P/PE function Support LDP protocol |
| SDN | H3C SeerEngine-DC |
| Lossless network | PFC and ECN DCBX RDMA and ROCE PFC deadlock watchdog ECN overlay |
