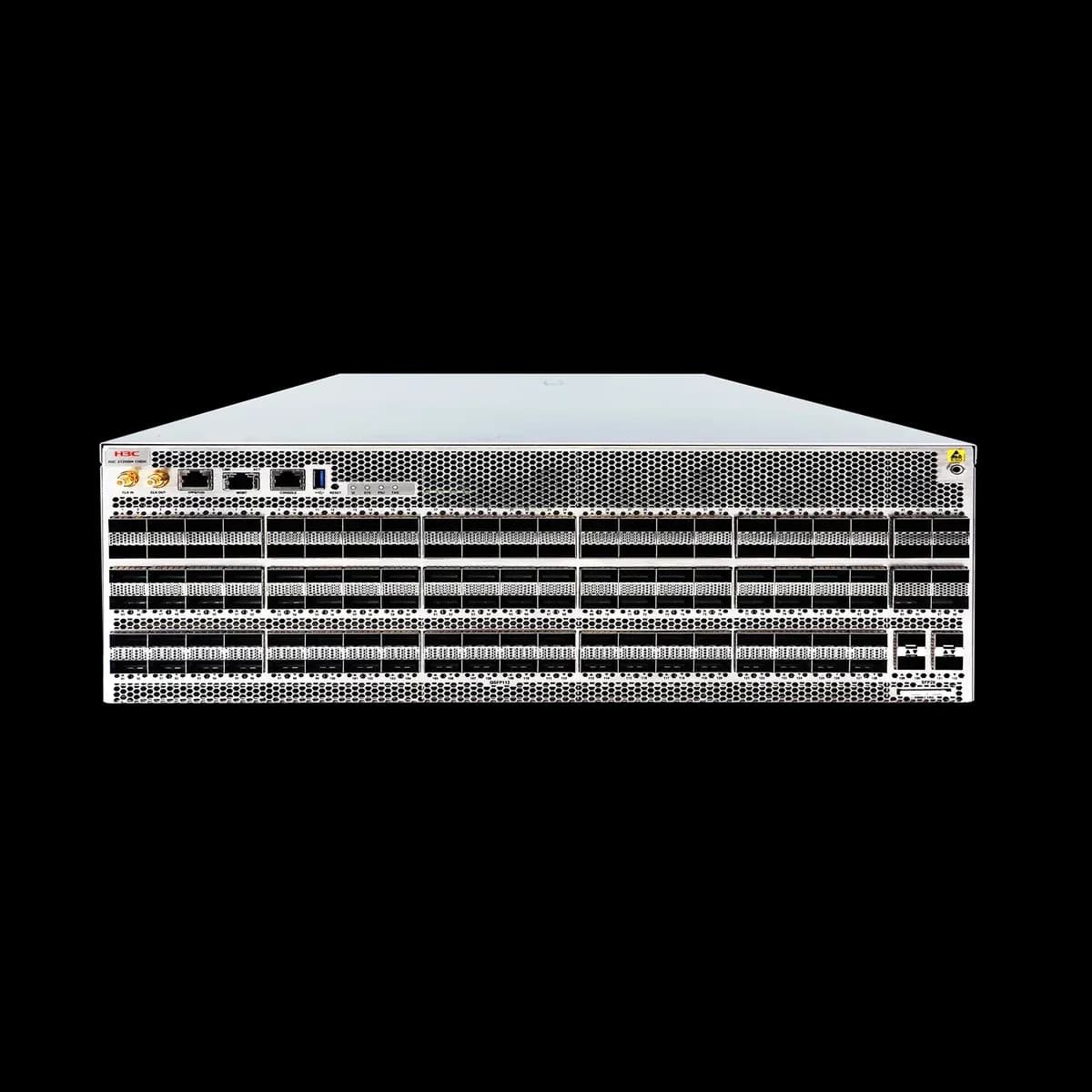

High-capacity switch-routers for WAN, 5G transport and data-centre interconnect, with SRv6, deep buffers and Comware V9.
Island-wide delivery to all 25 districts
| Models | S12500R-48Y8C, S12500R-48C6D, S12500R-128DH, S12504R, S12508R, S12516R, S12500R-2L, S12508CR, S12516CR |
|---|---|
| Switching capacity | S12500R-48Y8C: 4T; S12500R-48C6D: 14.4T; S12500R-128DH: 102.4T; S12504R: 387T/1161T; S12508R: 645T/1935T; S12516R: 1290T/3870T; S12500R-2L: 172T/516T; S12508CR: 967T/2903T; S12516CR: 1935T/5806T |
| Throughput | S12500R-48Y8C: 900Mpps; S12500R-48C6D: 2700Mpps; S12500R-128DH: 12Bpps; S12504R: 115,200Mpps; S12508R: 230,400Mpps; S12516R: 460,800Mpps; S12500R-2L: 57,600Mpps; S12508CR: 460,800Mpps; S12516CR: 921,600Mpps |
| Flash | S12500R-48Y8C: 4GB; S12500R-48C6D: 4GB; S12500R-128DH: 64G; S12504R: 4GB; S12508R: 4GB; S12516R: 4GB; S12500R-2L: 4GB; S12508CR: 4GB; S12516CR: 4GB |
| SDRAM | S12500R-48Y8C: 32G; S12500R-48C6D: 32G; S12500R-128DH: 64G; S12504R: 32G; S12508R: 32G; S12516R: 32G; S12500R-2L: 32G; S12508CR: 32G; S12516CR: 32G |
| CPU | S12500R-48Y8C: 2.2GHz@4Core; S12500R-48C6D: 2.2GHz@4Core; S12500R-128DH: 2GHz@8Core; S12504R: 2.2GHz@4Core; S12508R: 2.2GHz@4Core; S12516R: 2.2GHz@4Core; S12500R-2L: 2.2GHz@4Core; S12508CR: 2.2GHz@4Core; S12516CR: 2.2GHz@4Core |
| 400G port | S12500R-48Y8C: /; S12500R-48C6D: 6; S12500R-128DH: 128; S12504R: S12504R: Supports up to 4 LPU;; S12508R: S12508R: Supports up to 8 LPU;; S12516R: S12516R: Supports up to 16 LPU;; S12500R-2L: S12500R-2L: Supports up to 2 LPU;; S12508CR: S12508CR: Supports up to 8 LPU;; S12516CR: S12516CR: Supports up to 16 LPU |
| 100G port | 8 / 48 / / |
| 25G port | 48 / / |
| MPU slots | S12500R-48Y8C: /; S12500R-48C6D: /; S12500R-128DH: 1; S12504R: 2; S12508R: 2; S12516R: 2; S12500R-2L: 2; S12508CR: 2; S12516CR: 2 |
| LPU slots | S12500R-48Y8C: /; S12500R-48C6D: /; S12500R-128DH: /; S12504R: 4; S12508R: 8; S12516R: 16; S12500R-2L: 2; S12508CR: 8; S12516CR: 16 |
| Switching fabric module slots | S12500R-48Y8C: /; S12500R-48C6D: /; S12500R-128DH: /; S12504R: 6; S12508R: 6; S12516R: 6; S12500R-2L: /; S12508CR: 9; S12516CR: 9 |
| Weight (full configuration) | S12500R-48Y8C: ≤9.2kg; S12500R-48C6D: ≤14.7kg; S12500R-128DH: ≤100kg; S12504R: ≤100kg; S12508R: ≤190kg; S12516R: ≤350 kg; S12500R-2L: ≤70 kg; S12508CR: ≤400kg; S12516CR: ≤620kg |
| Dimensions (H x W x D) mm | S12500R-48Y8C: 44 x 440 x 460（1U）; S12500R-48C6D: 65.5 x 440 x 660 （1.5U）; S12500R-128DH: 175 x462 x760(4U); S12504R: 264 x 440 x 845 （6U）; S12508R: 531 x 440 x 845 （12U）; S12516R: 931x440x845 （21U）; S12500R-2L: 133 x 440 x 895（3U）; S12508CR: 842 x442 x920（19U）; S12516CR: 1331 x442 x920（30U） |
| Redundancy | Redundant MPUs, power modules, and fan trays for S12500R-2L Redundant power modules, and fan trays for S12500R-48Y8C/S12500R-48C6D/S12500R-128DH Redundant MPUs, switching fabric modules, power modules, and fan trays for other |
| Temperature | Operating temperature: 0°C to 40°C (32°F to 104°F) Storage temperature: -40°C to 70°C (-40°F to 158°F) |
| Humidity | Operating Humidity: 5% to 95% (non-condensing) Storage Humidity: 5% to 95% (non-condensing) |
| Green | WEEE,RoHS |
| Safety | CE, UL/cUL, FCC-PART15, VCCI,etc. |
| Device virtualization | M-LAG(DRNI) |
| Network virtualization | BGP-EVPN VxLAN |
| VXLAN | L2 VxLAN gateway L3 VxLAN gateway Distributed VxLAN gateway Centralized VxLAN gateway EVPN VxLAN manual configured VxLAN IPv4 VxLAN tunnel IPv6 VxLAN tunnel QinQ VxLAN access VxLAN DCI, vxlan mapping and route regeneration to interconnect DCs by L2 and L3 VxLAN multicast EVPN-VxLAN multicast |
| SR/SRv6 | MPLS SR TI-LFA FRR BGP-EPE MPLS TE policy SRv6 EVPN VPLS over SRv6 EVPN VPWS over SRv6 MPLS L3VPN over SRv6 EVPN L3VPN over SRv6 SRv6 BE SRv6 TE |
| MPLS/VPLS | Support L3 MPLS VPN Support L2 VPN: VLL (Martini, Kompella) Support MCE Support MPLS OAM Support VPLS, VLL Support hierarchical VPLS and QinQ+VPLS access Support P/PE function Support LDP protocol |
| SDN | H3C SeerEngine-DC H3C SeerEngine-WAN |
| Lossless network | PFC and ECN DCBX RDMA and ROCE PFC deadlock watchdog ECN overlay ROCE stream analysis |
| Programmability | Openflow1.3 Netconf Ansible Python//TCL/Restful API to realize DevOps automated operation and maintenance |
| Traffic analysis | Sflow Netstream |
