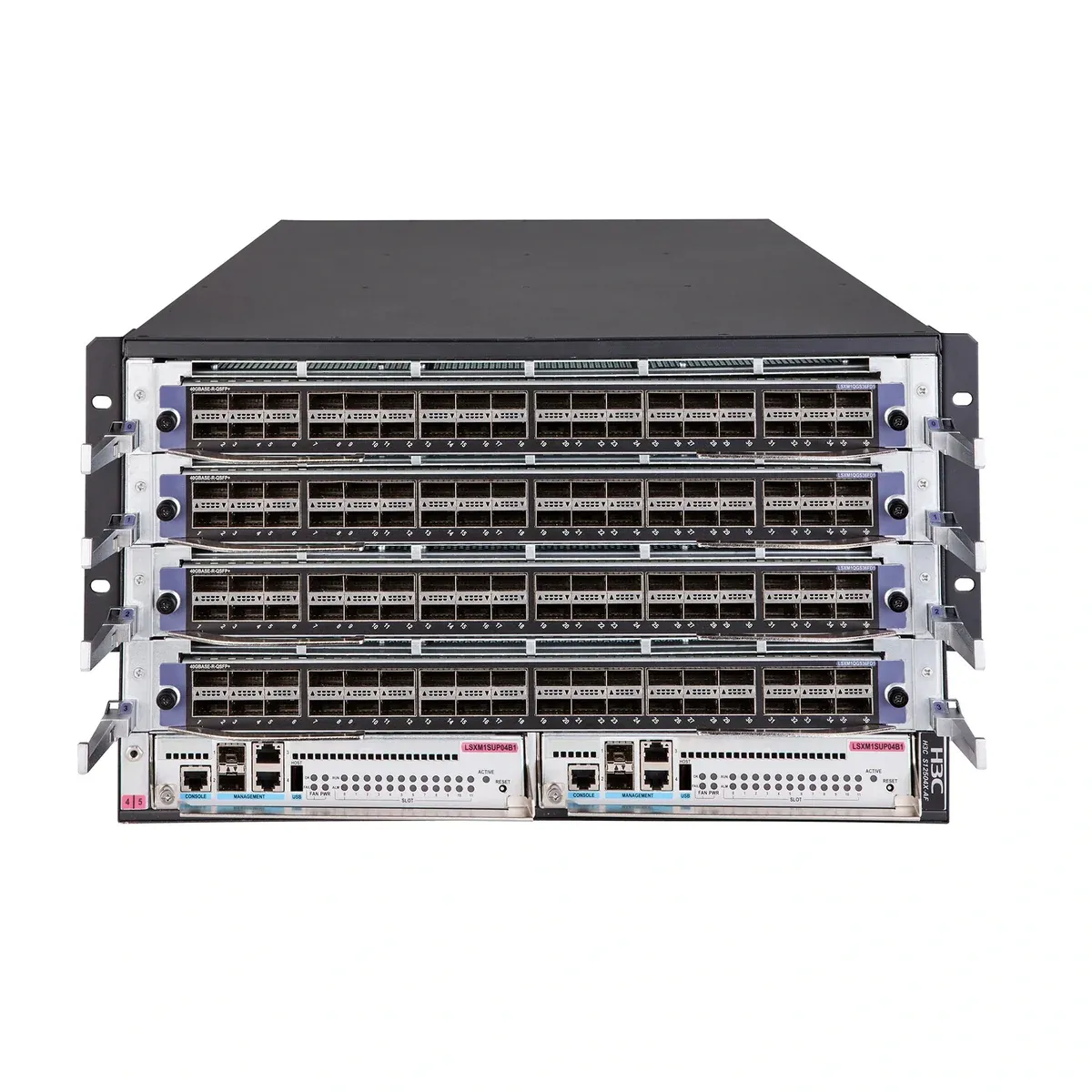

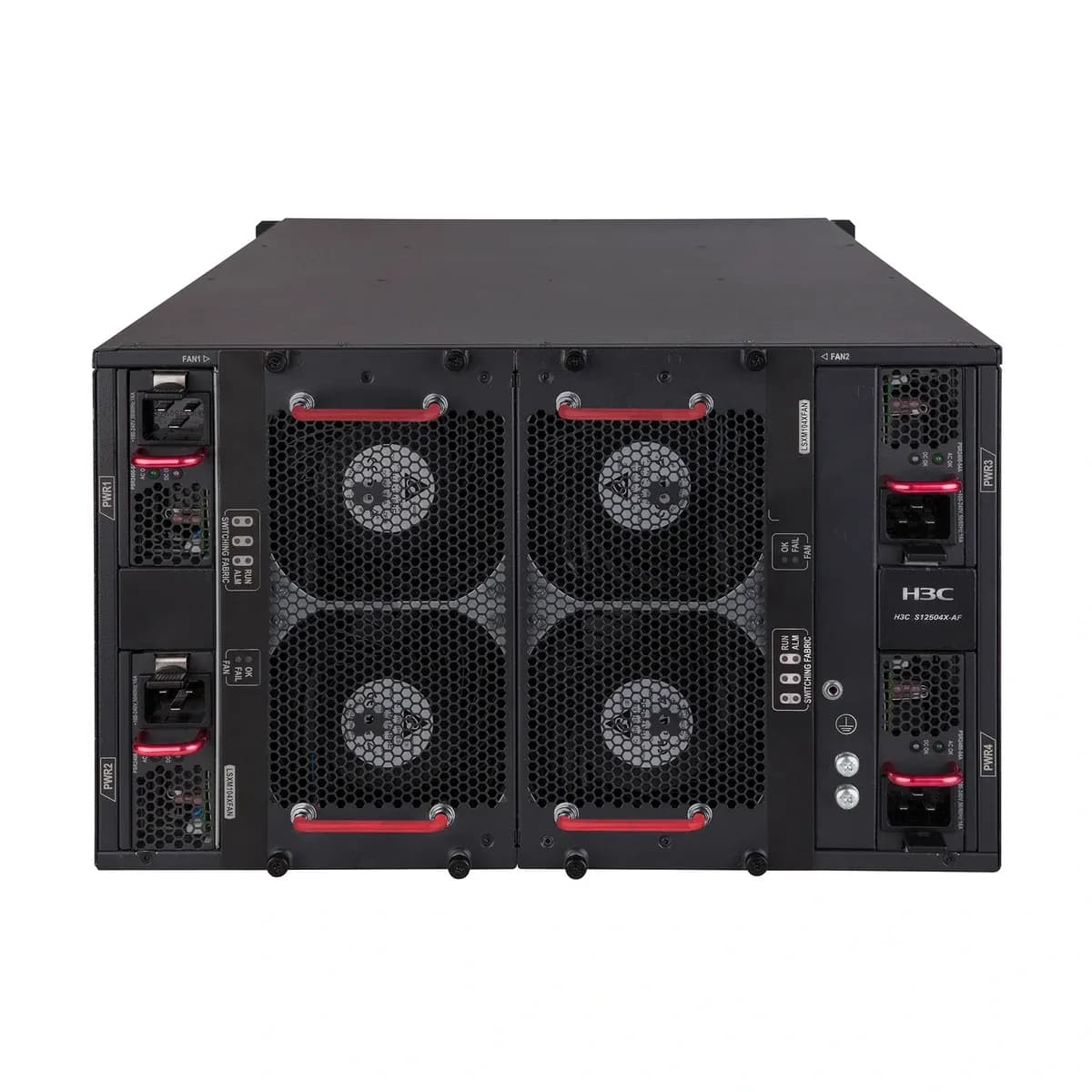

H3C S12500X-AF Data Center Cloud Core Switch Series

Model: S12500X-AFSeries: S12500

Modular cloud-core switches for large data centres, scaling to hundreds of line-rate 40G/100G ports per chassis with fully separated control and switching planes.

CLOS+ multi-plane architecture with a midplane-free chassis
Up to 48 40GE/100GE ports per line card
IRF2 stacking and MDC to partition one chassis into multiple logical switches
Deep distributed ingress buffers to absorb data-centre traffic bursts
Redundant MPUs, fabric modules, power and fans; BFD and NSR/GR for fast failover
Available in 4-, 8- and 16-slot chassis (S12504X-AF / S12508X-AF / S12516X-AF)

Price on Request

Request Price Call 076 018 7080 Download datasheet

Island-wide delivery to all 25 districts

Models	S12504X-AF, S12508X-AF, S12516X-AF
Switching capacity	S12504X-AF: 57.6T/387Tbps; S12508X-AF: 115.2T/516Tbps; S12516X-AF: 230.4T/1032Tbps
Throughput	S12504X-AF: 28800Mpps; S12508X-AF: 57600Mpps; S12516X-AF: 115200Mpps
MPU slots	2
LPU slots	S12504X-AF: 4; S12508X-AF: 8; S12516X-AF: 16
Maximum power consumption	S12504X-AF: 4800 W; S12508X-AF: 9600 W; S12516X-AF: 19200W
Weight (full configuration)	S12504X-AF: ≤ 100 kg ≤ 220.5 lb; S12508X-AF: ≤ 190 kg ≤ 418.9 lb; S12516X-AF: ≤ 350 kg ≤ 771.6 lb
Dimensions (H x W x D)	S12504X-AF: 264 x 440 x 857 mm (6U) 10.4 x 17.3 x 33.7 in; S12508X-AF: 531 x 440 x 857 mm (12U) 20.9 x 17.3 x 33.7 in; S12516X-AF: 931 x 440 x 857 mm (21U) 36.7 x 17.3 x 33.7 in
Switching fabric module slots	6
MPU name	LSXM1SUP04B1 / LSXM1SUP04H1 / LSXM1SUPB1 / LSXM1SUPH1
MPU processor	Quad Core 1.2 GHz
MPU SDRAM	8 GB / 16 GB
MPU flash	1 GB
MPU console port	1
MPU MGMT ports	2x 10/100/1000M Base-T 2x 1000M SFP / 1x 10/100/1000M Base-T 1x 1000M SFP
MPU USB port	1
Redundancy	Redundant MPUs, switching fabric modules, power modules, and fan trays
Device virtualization	IRF
Network virtualization	BGP-EVPN VxLAN
VXLAN	L2 VxLAN gateway L3 VxLAN gateway Distributed VxLAN gateway Centralized VxLAN gateway EVPN VxLAN manual configured VxLAN IPv4 VxLAN tunnel
Programmability	Openflow1.3 Netconf Ansible Python//TCL/Restful API to realize DevOps automated operation and maintenance
Traffic analysis	Sflow
VLAN	Port-based VLANs VLAN mapping L2PT MVRP(Multiple VLAN Registration Protocol)
MAC address	Dynamic learning and aging of mac address entries Dynamic,static and blackhole entries
IPv4 routing (Hardware-based unicast routing)	RIP(Routing Information Protocol) v1/2 OSPF (Open Shortest Path First) v1/v2 ISIS(Intermediate System to Intermediate system) BGP (Border Gateway Protocol) Routing policy VRRP PBR ICMP
IPv6 routing (Hardware-based unicast routing)	RIPng OSPFv3 IPv6 ISIS BGP4+ Routing policy VRRP PBR IPv6 ICMP
IP Service	DHCP Server, DHCP Relay, DHCP Snooping DHCP server of 3K operations/second
MPLS/VPLS	Support L3 MPLS VPN Support MCE VPLS Support MPLS OAM Support P/PE function Support LDP protocol
