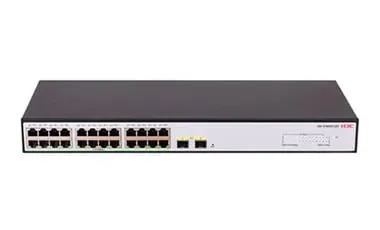

Compact gigabit web-managed switches with SFP uplinks and high-power PoE for SMB, retail and CCTV.
Island-wide delivery to all 25 districts
| Models | S1600V2-6P, S1600V2-10P, S1600V2-6P-HPWR, S1600V2-10P-HPWR, S1600V2-18P |
|---|---|
| Switching capacity | S1600V2-6P: 12Gbps; S1600V2-10P: 20Gbps; S1600V2-6P-HPWR: 12Gbps; S1600V2-10P-HPWR: 20Gbps; S1600V2-18P: 36Gbps |
| Forwarding capacity | S1600V2-6P: 8.93Mpps; S1600V2-10P: 14.88Mpps; S1600V2-6P-HPWR: 8.93Mpps; S1600V2-10P-HPWR: 24Mpps; S1600V2-18P: 26.784Mpps |
| Dimensions (W × D × H) | S1600V2-6P: 130×124×27 mm; S1600V2-10P: 185×125×27 mm; S1600V2-6P-HPWR: 130×124×27 mm; S1600V2-10P-HPWR: 185×125×27 mm; S1600V2-18P: 440×160×44 mm |
| Weight | S1600V2-6P: ≤ 0.6 kg; S1600V2-10P: ≤ 0.6 kg; S1600V2-6P-HPWR: ≤0.5 kg; S1600V2-10P-HPWR: ≤ 0.6 kg; S1600V2-18P: ≤ 2.1 kg |
| Networking interface | S1600V2-6P: 5GE+1 * SFP; S1600V2-10P: 9GE+1*SFP; S1600V2-6P-HPWR: 4*GE(poe+)+1GE+1*SFP; S1600V2-10P-HPWR: 8*GE(poe+) +1GE+1*SFP; S1600V2-18P: 16GE+2*SFP |
| Port Surge | 6KV |
| Input voltage | AC: The rated voltage range is 100V to 240V, 50/60Hz. |
| Total power consumption | S1600V2-6P: MIN: AC: 2W MAX: AC: 4W; S1600V2-10P: MIN: AC: 3W MAX: AC: 6W; S1600V2-6P-HPWR: MIN: AC: 3W MAX: AC single 86W (PoE 73W); S1600V2-10P-HPWR: MIN: AC: 4W MAX: AC: 132W (PoE 125W); S1600V2-18P: MIN: AC: 3.5W MAX: AC: 11.2W |
| Fan number | Fan-less |
| MTBF(Year) | S1600V2-6P: 114.00; S1600V2-10P: 100.76; S1600V2-6P-HPWR: 88.60; S1600V2-10P-HPWR: 78.48; S1600V2-18P: 84.36 |
| MTTR(Hour) | 1 |
| Operating temperature | -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) |
| Storage temperature | -40℃ ~ 70℃ |
| Relative humidity (non-condensing) | 5% RH to 95% RH, non-condensing |
| Models | S1600V2-26P, S1600V2-18P-HPWR, S1600V2-26P-HPWR, S1600V2-26S, S1600V2-26S-HPWR |
| Broadcast/Multicast/Unicast storm suppression | Black hole MAC support Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression |
| Traffic control | 802.3x traffic control and half-duplex backpressure |
| MAC address table | Static MAC address Blackhole MAC address |
| VLAN | Port-based VLAN |
| DHCP | DHCP Client DHCP snooping |
| Forwarding | Wire-speed/Line-rate architecture |
| Mirroring | Port mirroring |
| Management and maintenance | Loopback-detection Web management |
| EMC | FCC Part 15 Subpart B CLASS A ICES-003 CLASS A VCCI CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 GB/T 9254.1 |
| Safety | UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1 AS/NZS 62368-1 FDA 21 CFR Subchapter J GB 4943.1 |
| Entries | S1600V2-26S S1600V2-26S-HPWR / S1600V2-18P S1600V2-26P S1600V2-18P-HPWR S1600V2-26P-HPWR / 1600V2-6P S1600V2-6P-HPWR / S1600V2-10P S1600V2-10P-HPWR |
| MAC address entries | 16K / 8K / 2K / 4K |
