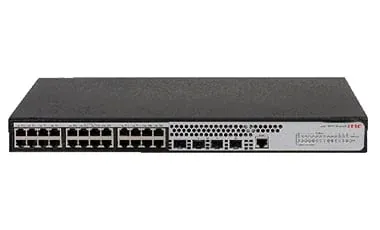

Layer 2 gigabit access switches with GE uplinks and PoE options, managed through a simple web UI.
Island-wide delivery to all 25 districts
| Models | S1850V2-10P-EI, S1850V2-28P-EI, S1850V2-52P-EI, S1850V2-28P-HPWR-EI, S1850V2-10P-HPWR-EI |
|---|---|
| Switching capacity | S1850V2-10P-EI: 20 Gbps; S1850V2-28P-EI: 56 Gbps; S1850V2-52P-EI: 104 Gbps; S1850V2-28P-HPWR-EI: 56 Gbps; S1850V2-10P-HPWR-EI: 20 Gbps |
| Forwarding capacity | S1850V2-10P-EI: 15Mpps; S1850V2-28P-EI: 42 Mpps; S1850V2-52P-EI: 78 Mpps; S1850V2-28P-HPWR-EI: 42 Mpps; S1850V2-10P-HPWR-EI: 15Mpps |
| CPU | 1 Core, 800MHz |
| Flash/SDRAM | 256MB/512MB |
| Dimensions (W × D × H) | S1850V2-10P-EI: 266×161×43.6mm; S1850V2-28P-EI: 440×160×43.6mm; S1850V2-52P-EI: 440×230×43.6mm; S1850V2-28P-HPWR-EI: 440×260×43.6mm; S1850V2-10P-HPWR-EI: 330×230×43.6mm |
| Weight | S1850V2-10P-EI: ≤ 1.5 kg; S1850V2-28P-EI: ≤ 2.5 kg; S1850V2-52P-EI: ≤ 3.5 kg; S1850V2-28P-HPWR-EI: ≤ 6 kg; S1850V2-10P-HPWR-EI: ≤ 3 kg |
| Management port | 1 console port |
| Networking interface | S1850V2-10P-EI: 8 10/100/1000Base-T electrical ports 2 1000Base-X SFP optical port; S1850V2-28P-EI: 24 10/100/1000Base-T electrical ports 4 1000Base-X SFP optical port; S1850V2-52P-EI: 48 10/100/1000Base-T electrical ports 4 1000Base-X SFP optical port; S1850V2-28P-HPWR-EI: 24 10/100/1000Base-T electrical ports 4 1000Base-X SFP optical port; S1850V2-10P-HPWR-EI: 8 10/100/1000Base-T electrical ports 2 1000Base-X SFP optical port |
| Port Surge | 6KV |
| Input voltage | AC: The rated voltage range is 100V to 240V, 50/60Hz. |
| Total power consumption | S1850V2-10P-EI: MIN: AC: 8W MAX: AC: 15W; S1850V2-28P-EI: MIN: AC: 9W MAX: AC: 23W; S1850V2-52P-EI: MIN: AC: 18W MAX: AC: 41W; S1850V2-28P-HPWR-EI: MIN: AC: 19W MAX: AC: 448W (PoE 370W); S1850V2-10P-HPWR-EI: MIN: AC: 14W MAX: AC: 156W (PoE 125W) |
| Fan number | S1850V2-10P-EI: Fan-less; S1850V2-28P-EI: Fan-less; S1850V2-52P-EI: 1; S1850V2-28P-HPWR-EI: 1; S1850V2-10P-HPWR-EI: Fan-less |
| MTBF(Year) | S1850V2-10P-EI: 140.82; S1850V2-28P-EI: 150.86; S1850V2-52P-EI: 115.68; S1850V2-28P-HPWR-EI: 52.81; S1850V2-10P-HPWR-EI: 117.08 |
| MTTR(Hour) | 1 |
| Operating temperature | -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage temperature | -40℃ ~ 70℃ |
| Relative humidity (non-condensing) | 5% RH to 95% RH, non-condensing |
| Port aggregation | GE port aggregation Dynamic aggregation Static aggregation |
| Broadcast/Multicast/Unicast storm suppression | Storm suppression based on port bandwidth percentage Storm suppression based on PPS Storm suppression based on BPS Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression |
| Ethernet features | 802.3x traffic control and half-duplex backpressure Green Ethernet (EEE) Automatic port energy-saving |
| MAC address table | Static MAC address Blackhole MAC address Setting the maximum number of port MAC addresses to be learned |
| VLAN | Port-based VLAN MAC-based VLAN VLAN mapping MVRP Voice VLAN* |
| DHCP | DHCP Client DHCP Snooping DHCP Snooping option82 DHCP Relay DHCP auto-config |
| VLAN interface | Both IPv4 and IPv6 supported |
| ARP | ARP Detection ARP speed limit |
| IP routing | Static routing |
| Multicast | IGMP Snooping V2/V3 PIM Snooping MLD Snooping Multicast VLAN |
