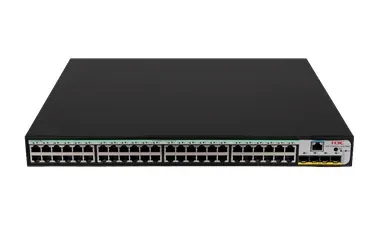

Layer 2 gigabit access switches with 10G uplinks, PoE options and simple web management.
Island-wide delivery to all 25 districts
| Models | S1850V2-28X, S1850V2-52X, S1850V2-28X-HPWR, S1850V2-52X-PWR |
|---|---|
| Switching capacity | S1850V2-28X: 128Gbps; S1850V2-52X: 176Gbps; S1850V2-28X-HPWR: 128Gbps; S1850V2-52X-PWR: 176Gbps |
| Forwarding capacity | S1850V2-28X: 95.232Mpps; S1850V2-52X: 130.952Mpps; S1850V2-28X-HPWR: 95.232Mpps; S1850V2-52X-PWR: 130.952Mpps |
| CPU | 1 Core, 800MHz |
| Flash/SDRAM | 256MB/512MB |
| Dimensions (W × D × H) | S1850V2-28X: 440×160×43.6mm; S1850V2-52X: 440×230×43.6mm; S1850V2-28X-HPWR: 440×260×43.6mm; S1850V2-52X-PWR: 440×400×43.6mm |
| Weight | S1850V2-28X: ≤ 2.5 kg; S1850V2-52X: ≤ 3.5 kg; S1850V2-28X-HPWR: ≤ 6 kg; S1850V2-52X-PWR: ≤ 6 kg |
| Management port | 1 console port |
| Networking interface | S1850V2-28X: 24 10/100/1000Base-T electrical ports 4 1G/10G Base-X SFP Plus optical port; S1850V2-52X: 48 10/100/1000Base-T electrical ports 4 1G/10G Base-X SFP Plus optical port; S1850V2-28X-HPWR: 24 10/100/1000Base-T electrical ports 4 1G/10G Base-X SFP Plus optical port; S1850V2-52X-PWR: 48 10/100/1000Base-T electrical ports 4 1G/10G Base-X SFP Plus optical port |
| Port Surge | 6KV |
| Input voltage | AC: The rated voltage range is 100V to 240V, 50/60Hz. |
| Total power consumption | S1850V2-28X: MIN: AC: 10W MAX: AC: 24W; S1850V2-52X: MIN: AC: 19W MAX: AC: 44W; S1850V2-28X-HPWR: MIN: AC: 19W MAX: AC: 448W (PoE 370W); S1850V2-52X-PWR: MIN: AC: 36W MAX: AC: 467W (PoE 370W) |
| Fan number | S1850V2-28X: Fan-less; S1850V2-52X: 1; S1850V2-28X-HPWR: 3; S1850V2-52X-PWR: 3 |
| MTBF(Year) | S1850V2-28X: 150.86; S1850V2-52X: 115.68; S1850V2-28X-HPWR: 52.81; S1850V2-52X-PWR: 50.19 |
| MTTR(Hour) | 1 |
| Operating temperature | -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage temperature | -40℃ ~ 70℃ |
| Relative humidity (non-condensing) | 5% RH to 95% RH, non-condensing |
| Port aggregation | GE/10GE port aggregation Dynamic aggregation Static aggregation |
| Broadcast/Multicast/Unicast storm suppression | Storm suppression based on port bandwidth percentage Storm suppression based on PPS Storm suppression based on BPS Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression |
| Ethernet features | 802.3x traffic control and half-duplex backpressure Green Ethernet (EEE) Automatic port energy-saving |
| MAC address table | Static MAC address Blackhole MAC address Setting the maximum number of port MAC addresses to be learned |
| VLAN | Port-based VLAN MAC-based VLAN VLAN mapping MVRP Voice VLAN* |
| DHCP | DHCP Client DHCP Snooping DHCP Snooping option82 DHCP Relay DHCP auto-config |
| VLAN interface | Both IPv4 and IPv6 supported |
| ARP | ARP Detection ARP speed limit |
| IP routing | Static routing |
| Multicast | IGMP Snooping V2/V3 PIM Snooping MLD Snooping Multicast VLAN |
