Layer 2 managed gigabit switches with 2.5G SFP uplinks and PoE options for SMB and education networks.
Island-wide delivery to all 25 districts

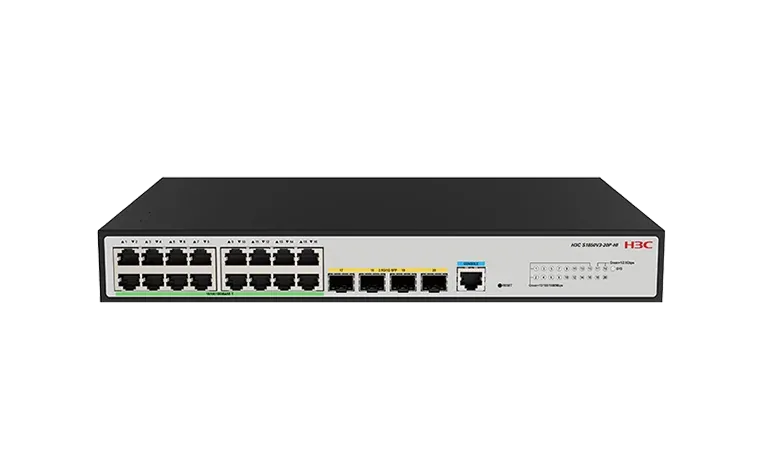

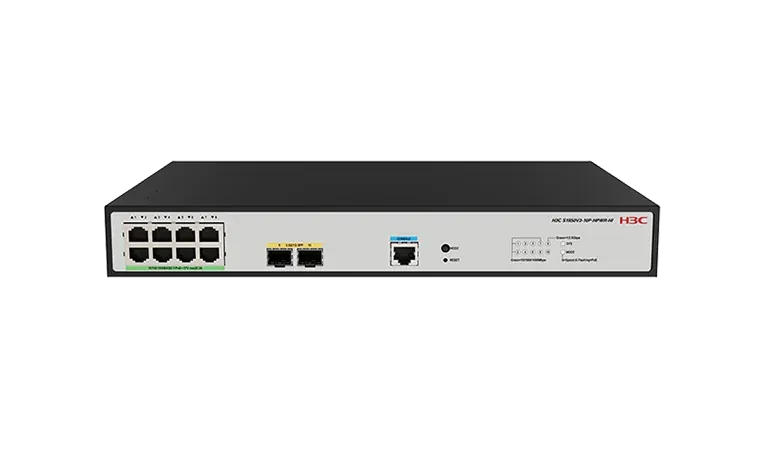

| Models | S1850V3-10P-HI, S1850V3-10P-HPWR-HI, S1850V3-20P-HI, S1850V3-20P-HPWR-HI, S1850V3-28P-HI, S1850V3-28P-HPWR-HI |
|---|---|
| Switching capacity | S1850V3-10P-HI: 56G; S1850V3-10P-HPWR-HI: 56G; S1850V3-20P-HI: 56G; S1850V3-20P-HPWR-HI: 56G; S1850V3-28P-HI: 68G; S1850V3-28P-HPWR-HI: 68G |
| Packet Forwarding Rate | 41.7Mpps |
| Management Port | 1 Console Port |
| Fixed Ports | S1850V3-10P-HI: 8 10/100/1000BASE-T copper ports + 2 1G/2.5G BASE-X SFP ports; S1850V3-10P-HPWR-HI: 8 10/100/1000BASE-T PoE+ copper ports + 2 1G/2.5G BASE-X SFP ports; S1850V3-20P-HI: 16 10/100/1000BASE-T copper ports + 4 1G/2.5G BASE-X SFP ports; S1850V3-20P-HPWR-HI: 16 10/100/1000BASE-T PoE+ copper ports + 4 1G/2.5G BASE-X SFP ports; S1850V3-28P-HI: 24 10/100/1000Base-T copper ports+ 4 1G/2.5G BASE-X SFP ports; S1850V3-28P-HPWR-HI: 24 10/100/1000Base-T PoE+ copper ports+ 4 1G/2.5G BASE-X SFP ports |
| Power Consumption | S1850V3-10P-HI: ≤10W; S1850V3-10P-HPWR-HI: Max: 156W (PoE Power 130W); S1850V3-20P-HI: ≤15W; S1850V3-20P-HPWR-HI: MAX: 299W (PoE Power 255W); S1850V3-28P-HI: ≤ 15W; S1850V3-28P-HPWR-HI: MAX: 474W (PoE Power 410W) |
| Rated input voltage | S1850V3-10P-HI: AC：100V~240V ,50-60Hz; S1850V3-10P-HPWR-HI: AC：100V~240V ,50-60Hz; S1850V3-20P-HI: AC：100V~240V ,50-60Hz; S1850V3-20P-HPWR-HI: AC：100V~240V ,50-60Hz; S1850V3-28P-HI: AC:100-240V,50/60Hz; S1850V3-28P-HPWR-HI: AC:100-240V,50/60Hz |
| Maximum input voltage | S1850V3-10P-HI: AC：90V~264V,47-63Hz; S1850V3-10P-HPWR-HI: AC：90V~264V,47-63Hz; S1850V3-20P-HI: AC：90V~264V,47-63Hz; S1850V3-20P-HPWR-HI: AC：90V~290V,47-63Hz; S1850V3-28P-HI: AC:90-264V,47-63Hz; S1850V3-28P-HPWR-HI: AC:90-290V,47-63Hz |
| Dimensions (L × W × H) (Unit: mm) | S1850V3-10P-HI: 266*160*43.6mm; S1850V3-10P-HPWR-HI: 330*230*43.6mm; S1850V3-20P-HI: 330*230*43.6mm; S1850V3-20P-HPWR-HI: 440*260*43.6mm; S1850V3-28P-HI: 440*160*43.6mm; S1850V3-28P-HPWR-HI: 440*260*43.6mm |
| Copper Port attribute | Copper Port attribute Supports half duplex, full duplex, and auto-negotiation modes |
| Ethernet Features | Supports LLDP Static MAC Configuration Supports port mirroring function Supports port aggregation (max. 8 ports per aggregation group, max. 8 aggregation groups) Supports port isolation Supports IEEE 802.3ad (Dynamic Link Aggregation LACP), Static Port Aggregation |
| User access | Supports 802.1X Authentication Supports MAC Authentication Supports Portal Authentication |
| QoS | Supports SP/WRR/SP+WRR queue scheduling Supports 802.1p Supports Port Rate Limiting |
| Security | Supports user hierarchical management and password protection Supports SSH, providing a secure encrypted channel for user login Supports broadcast packet suppression Supports black hole MAC Supports limiting the number of MAC addresses per port Supports SSL Supports ERPS Supports Dying Gasp(Only S1850V3-20P-HPWR-HI & S1850V3-28P-HPWR-HI supported.) |
| Management and Monitoring | WEB Page Configuration Supports CLI (command line) FTP, TFTP, Xmodem file upload/download management |
| System management | Supports FTP, SFTP file upload/download management Supports SNMP V1/V2/V3 Supports NTP Clock Supports System Operation Log |
| Temperature | Operating temperature: -5～50℃ |
