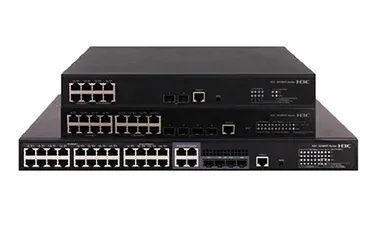

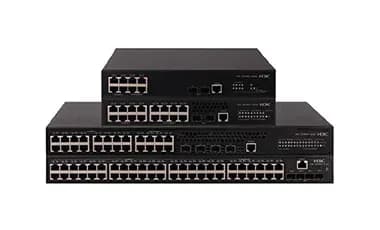

Cost-effective Layer 2 access switches with Fast Ethernet and gigabit ports, PoE options and SFP uplinks for SME desktops.
Island-wide delivery to all 25 districts
| Models | S3100V3-10TP-EI, S3100V3-18TP-EI, S3100V3-28TP-EI, S3100V3-52TP-EI, S3100V3-10TP-PWR-EI |
|---|---|
| Port Switching capacity | S3100V3-10TP-EI: 12.8Gbps; S3100V3-18TP-EI: 21.6Gbps; S3100V3-28TP-EI: 27.2Gbps; S3100V3-52TP-EI: 46.4Gbps; S3100V3-10TP-PWR-EI: 12.8Gbps |
| Box Switching capacity | 128Gbps |
| Packet forwarding rate | S3100V3-10TP-EI: 9.6 Mpps; S3100V3-18TP-EI: 16.2 Mpps; S3100V3-28TP-EI: 20.4 Mpps; S3100V3-52TP-EI: 34.8 Mpps; S3100V3-10TP-PWR-EI: 9.6Mpps |
| Dimensions (H × W × D) | S3100V3-10TP-EI: 43.6 × 266 × 161 mm; S3100V3-18TP-EI: 43.6 × 266 × 161 mm; S3100V3-28TP-EI: 43.6 × 440 × 160 mm; S3100V3-52TP-EI: 43.6 × 440 × 230 mm; S3100V3-10TP-PWR-EI: 43.6 × 330 × 230 mm |
| Weight | S3100V3-10TP-EI: ≤ 1.5 kg; S3100V3-18TP-EI: ≤ 1.5 kg; S3100V3-28TP-EI: ≤ 2.5 kg; S3100V3-52TP-EI: ≤ 3.5 kg; S3100V3-10TP-PWR-EI: ≤3 kg |
| 10/100Base-TX port | S3100V3-10TP-EI: 4; S3100V3-18TP-EI: 8; S3100V3-28TP-EI: 16; S3100V3-52TP-EI: 32; S3100V3-10TP-PWR-EI: 4 |
| 10/100/1000Base-T port | S3100V3-10TP-EI: 4; S3100V3-18TP-EI: 8; S3100V3-28TP-EI: 8; S3100V3-52TP-EI: 16; S3100V3-10TP-PWR-EI: 4 |
| SFP port | S3100V3-10TP-EI: 2; S3100V3-18TP-EI: 2; S3100V3-28TP-EI: 4; S3100V3-52TP-EI: 4; S3100V3-10TP-PWR-EI: 2 |
| Input voltage range | AC input (not supported by the S3100V3-18TP-EI-DC switch/ S3100V3-28TP-EI-DC switch/ S3100V3-20TP-PWR-EI-DC switch) - Rated voltage: 100 VAC to 240 VAC @ 50 or 60 Hz - Max voltage: 90 VAC to 264 VAC @ 47 to 63 Hz DC input from a –48 VDC power source in the equipment room or an H3C RPS1600-A (supported only by the S3100V3-18TP-EI-DC switch/ S3100V3-28TP-EI-DC switch/ S3100V3-20TP-PWR-EI-DC switch) - Rated voltage: –48 VDC to –60 VDC - Max voltage: –36 VDC to –72 VDC |
| Flash/SDRAM | 256MB/512MB |
| Power consumption (Idle) | S3100V3-10TP-EI: 7 W; S3100V3-18TP-EI: 9 W; S3100V3-28TP-EI: 11 W; S3100V3-52TP-EI: 20 W; S3100V3-10TP-PWR-EI: 13 W |
| Power consumption (full configuration) | S3100V3-10TP-EI: 11 W; S3100V3-18TP-EI: 16 W; S3100V3-28TP-EI: 19 W; S3100V3-52TP-EI: 33 W; S3100V3-10TP-PWR-EI: 150W (including 125w PoE) |
| Heat dissipation | S3100V3-10TP-EI: No fan, natural cooling; S3100V3-18TP-EI: No fan, natural cooling; S3100V3-28TP-EI: No fan, natural cooling; S3100V3-52TP-EI: Fixed fan; S3100V3-10TP-PWR-EI: No fan, natural cooling |
| Operating temperature | 0ºC to 45ºC (32°F to 113°F) |
| Operating humidity | 10% RH to 90% RH, non-condensing |
| Models | S3100V3-18TP-EI-DC, S3100V3-20TP-PWR-EI-DC, S3100V3-28TP-EI-DC, S3100V3-20TP-PWR-EI, S3100V3-28TP-PWR-EI |
| Port aggregation | GE port aggregation Dynamic aggregation Static aggregation Cross-device aggregation |
| Broadcast/Multicast/Unicast storm suppression | Storm suppression based on port bandwidth percentage Storm suppression based on PPS Storm suppression based on BPS Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression |
| IRF2 | Distributed device management, distributed link aggregation, and distributed resilient routing Stacking through standard Ethernet interfaces Local device stacking and remote device stacking |
| Jumbo frame | 10000bytes |
| MAC address table | 16K MAC address entries Static MAC address Blackhole MAC address |
| VLAN | Port-based VLAN (up to 4094 VLANs) MAC-based VLAN Protocol-based VLAN QinQ and selective QinQ VLAN mapping Voice VLAN MVRP |
| DHCP | DHCP Client DHCP Snooping DHCP Snooping option82 DHCP Relay DHCP Server DHCP auto-config |
| IP routing | 1K IPV4 routing entries Static routing RIPv1/v2 and RIPng OSPFv1/v2 and OSPFv3 |
| Multicast | IGMP Snooping v1/v2/v3 MLD Snooping v1/v2 Multicast VLAN |
| Layer 2 ring network protocol | STP/RSTP/MSTP/PVST Smart Link RRPP G.8032 ERPS (Ethernet Ring Protection Switching) |
| ACL | Packet filtering at Layer 2 through layer 4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses Time range-based ACL VLAN-based ACL Bidirectional ACL |
