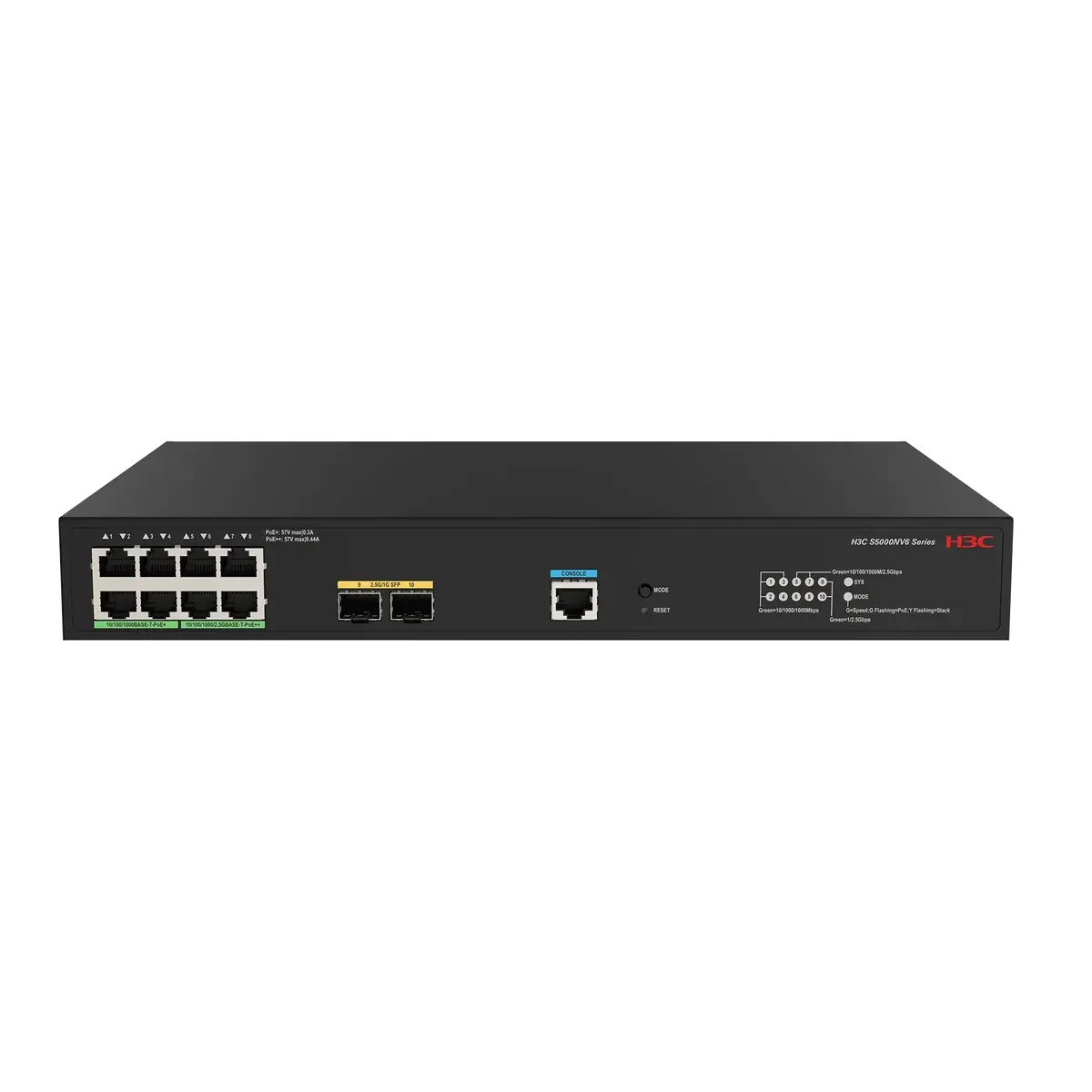

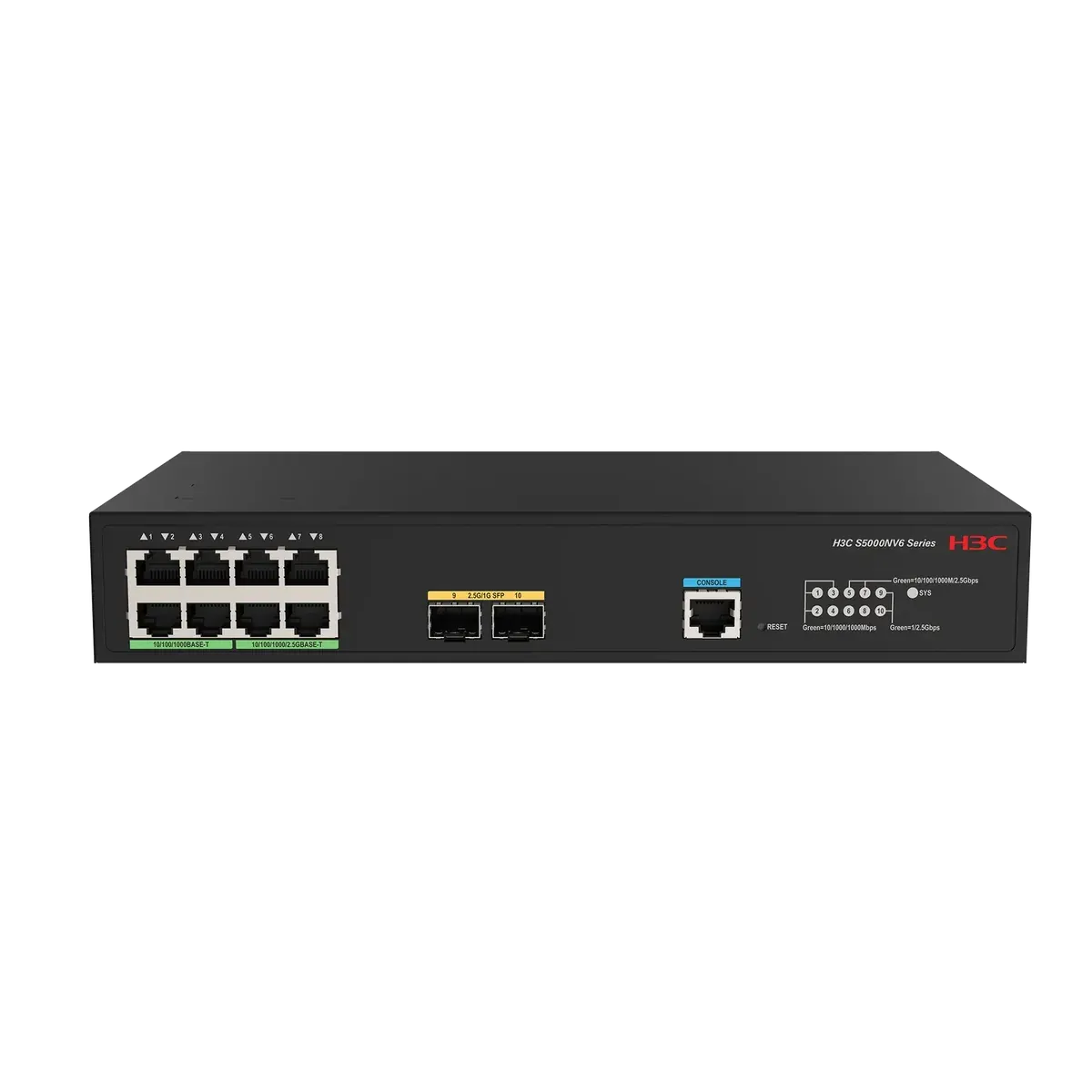

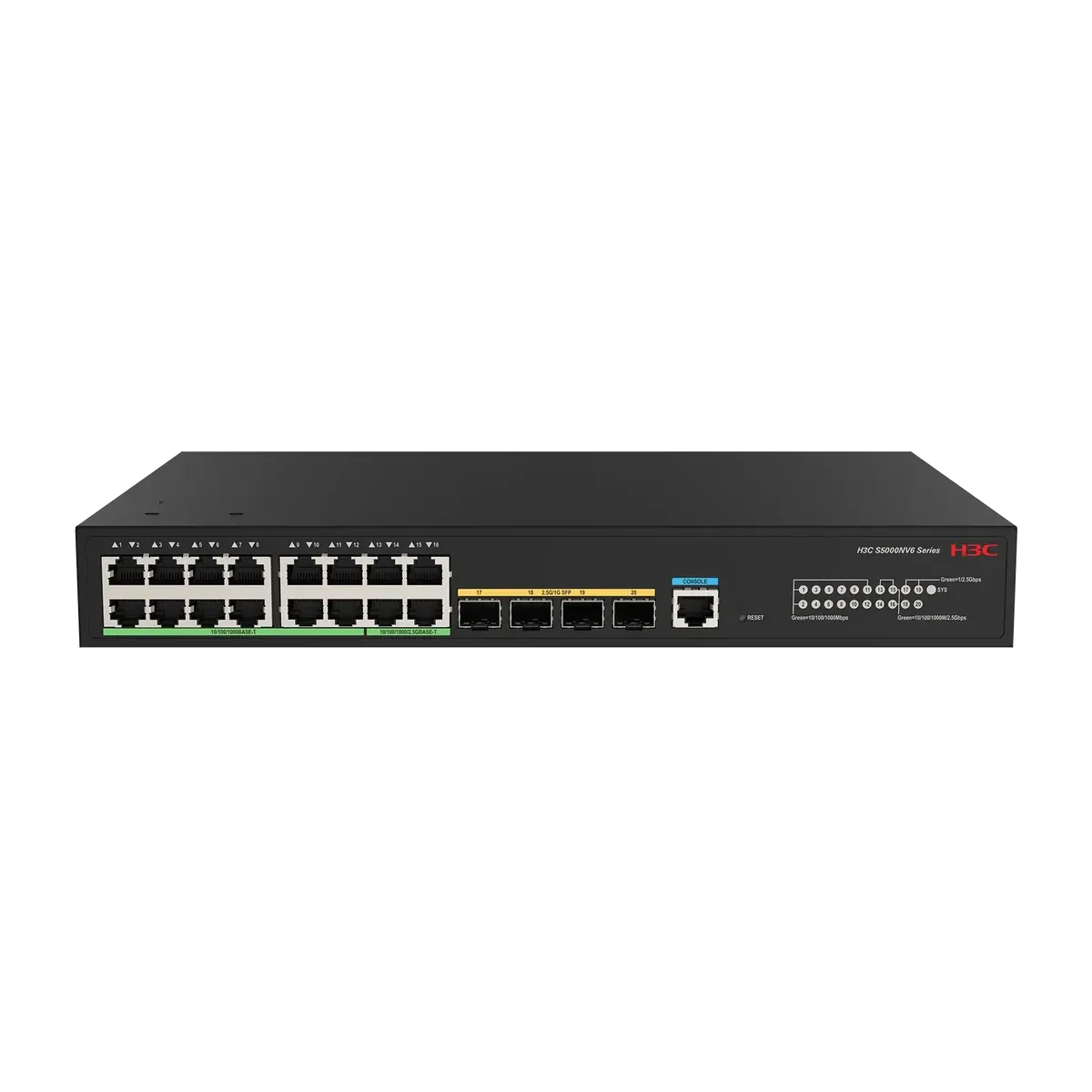

H3C S5000NV6-EI Series Gigabit Managed Access Switches

Model: S5000NV6-EISeries: S5000

Managed gigabit access switches for SMBs, with 2.5G uplinks, 2.5G PoE++ ports and 6 kV surge protection.

8 to 48 gigabit ports with 2.5G uplinks, all at line rate
PoE models include four 2.5G PoE++ ports
ARP detection, IP Source Guard, DHCP Snooping and port security
802.1X and MAC authentication with iMC
6 kV surge protection on service ports

Price on Request

Request Price Call 076 018 7080 Download datasheet

Island-wide delivery to all 25 districts

Models	S5000NV6-4T4N2NS-EI, S5000NV6-12T4N4NS-EI, S5000NV6-20T4N4NS-EI, S5000NV6-48T4NS-EI
Port switching capacity	S5000NV6-4T4N2NS-EI: 38Gbps; S5000NV6-12T4N4NS-EI: 64Gbps; S5000NV6-20T4N4NS-EI: 80Gbps; S5000NV6-48T4NS-EI: 116Gbps
Forwarding capacity	S5000NV6-4T4N2NS-EI: 29Mpps; S5000NV6-12T4N4NS-EI: 48Mpps; S5000NV6-20T4N4NS-EI: 60Mpps; S5000NV6-48T4NS-EI: 87Mpps
System switching capacity	232Gbps
CPU	1.2GHz
SDRAM	1G
Flash	256MB
Buffer	S5000NV6-4T4N2NS-EI: 0.5MB; S5000NV6-12T4N4NS-EI: 0.5MB; S5000NV6-20T4N4NS-EI: 0.5MB; S5000NV6-48T4NS-EI: 1MB
Dimensions(H x W x D)	S5000NV6-4T4N2NS-EI: 43.6 × 266 × 160 mm; S5000NV6-12T4N4NS-EI: 43.6 × 330 × 230 mm; S5000NV6-20T4N4NS-EI: 43.6 × 440 × 160 mm; S5000NV6-48T4NS-EI: 43.6 × 440 × 260 mm
Weight	S5000NV6-4T4N2NS-EI: ≤ 1.1 kg; S5000NV6-12T4N4NS-EI: ≤ 1.9 kg; S5000NV6-20T4N4NS-EI: ≤ 2.0 kg; S5000NV6-48T4NS-EI: ≤ 3.4 kg
10/100/1000 Base-T port	S5000NV6-4T4N2NS-EI: 4; S5000NV6-12T4N4NS-EI: 12; S5000NV6-20T4N4NS-EI: 20; S5000NV6-48T4NS-EI: 48
10/100/1000/2.5GBase-T port	S5000NV6-4T4N2NS-EI: 4; S5000NV6-12T4N4NS-EI: 4; S5000NV6-20T4N4NS-EI: 4; S5000NV6-48T4NS-EI: -
SFP port(GE/2.5G)	S5000NV6-4T4N2NS-EI: 2; S5000NV6-12T4N4NS-EI: 4; S5000NV6-20T4N4NS-EI: 4; S5000NV6-48T4NS-EI: 4
Console port	1
Input voltage	Rated voltage range: 100 VAC to 240 VAC @ 50 Hz or 60 Hz Max voltage range: 90 VAC to 264 VAC @ 47 Hz to 63 Hz
Power consumption (static) Data collection standard: no load	S5000NV6-4T4N2NS-EI: 7 W; S5000NV6-12T4N4NS-EI: 8 W; S5000NV6-20T4N4NS-EI: 8 W; S5000NV6-48T4NS-EI: 12 W
Power consumption (with typical configuration) Data collection standard: fully c	S5000NV6-4T4N2NS-EI: 10 W; S5000NV6-12T4N4NS-EI: 14 W; S5000NV6-20T4N4NS-EI: 16 W; S5000NV6-48T4NS-EI: 24 W
Power consumption (fully configured) Data collection standard: fully configured	S5000NV6-4T4N2NS-EI: 12 W; S5000NV6-12T4N4NS-EI: 16 W; S5000NV6-20T4N4NS-EI: 19 W; S5000NV6-48T4NS-EI: 27 W
Latency(64byte LIFO)	≤5μs
Sound pressure level at 27°C (80.6°F)	NA
Fan NUM	S5000NV6-4T4N2NS-EI: Fanless, passive cooling; S5000NV6-12T4N4NS-EI: Fanless, passive cooling; S5000NV6-20T4N4NS-EI: Fanless, passive cooling; S5000NV6-48T4NS-EI: 1
MTBF(Year)	S5000NV6-4T4N2NS-EI: 111; S5000NV6-12T4N4NS-EI: 95; S5000NV6-20T4N4NS-EI: 100; S5000NV6-48T4NS-EI: 103
MTTR(Hour)	1
Operating temperature	–5°C to +45°C (23°F to 113°F) Note: The maximum acceptable temperature decreases by 0.33°C (0.59°F) for every 100 m (328.08 ft) increase in altitude from 0 m (0 ft).
Storage temperature	-40ºC ~ +70ºC
Operating & storage humidity	5% RH to 95% RH, non-condensing
Models	S5000NV6-4P4UN2NS-EI, S5000NV6-12P4UN4NS-EI, S5000NV6-20P4UN4NS-EI, S5000NV6-48P4NS-EI
Dimensions (H x W x D)	S5000NV6-4P4UN2NS-EI: 43.6 × 330 × 230 mm; S5000NV6-12P4UN4NS-EI: 43.6 × 440 × 260 mm; S5000NV6-20P4UN4NS-EI: 43.6 × 440 × 260 mm; S5000NV6-48P4NS-EI: 43.6 × 440 × 260 mm
