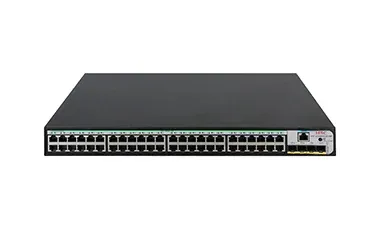

H3C S5000V5-EI Series Gigabit Managed Switches

Model: S5000V5-EISeries: S5000

Gigabit managed switches for small businesses, hotels and schools, with IRF2 stacking of up to nine units.

8, 16, 24 and 48-port gigabit models with SFP uplinks
IRF2 stacking of up to nine switches as one
ARP detection, IP Source Guard and DHCP Snooping
LLDP and flexible QoS scheduling
Latency under 5 µs on GE

Price on Request

Request Price Call 076 018 7080 Download datasheet

Island-wide delivery to all 25 districts

Models	S5008PV5-EI-S, S5016PV5-EI-S, S5024PV5-EI-S, S5024PV5-EI, S5048PV5-EI
Switching capacity	S5008PV5-EI-S: 20Gbps; S5016PV5-EI-S: 40Gbps; S5024PV5-EI-S: 52Gbps; S5024PV5-EI: 56Gbps; S5048PV5-EI: 104Gbps
Packet forwarding rate	S5008PV5-EI-S: 15Mpps; S5016PV5-EI-S: 30Mpps; S5024PV5-EI-S: 39Mpps; S5024PV5-EI: 42Mpps; S5048PV5-EI: 78Mpps
Management port	1 console port
Latency (64byte/µs)	GE: < 5µs 10GE < 3µs
10/100/1000 Base-T port	S5008PV5-EI-S: 8; S5016PV5-EI-S: 16; S5024PV5-EI-S: 24; S5024PV5-EI: 24; S5048PV5-EI: 48
SFP port	S5008PV5-EI-S: 2; S5016PV5-EI-S: 4; S5024PV5-EI-S: 2; S5024PV5-EI: 4; S5048PV5-EI: 4
Copper port features	Half-duplex, full-duplex, auto-negotiation
Ethernet functions	LLDP
VLAN	802.1Q ( up to 4K VLAN)
IP routing	Static routing
DHCP	DHCP Relay
Broadcast	IGMP V1/V2/V3 Snooping
QoS	Diff-Serv QoS
ACL	ACL on layer 2, layer 3 and layer 4
IPv6	IPv6 static routing, dual-stack
Reliability	Hot patch, in-service patch upgrade
Security	Hierarchical user management and password protection
System Management	Console/AUX Modem/Telnet/SSH2.0/CLI
Environment temperature	Operating temperature：-5℃~50℃
Environment humidity	Operating humidity：5%~95% , non-condensing
Environment protection	China RoHs, EEE
Power consumption	S5008PV5-EI-S: MIN: 6W MAX: 11W; S5016PV5-EI-S: MIN: 7W MAX: 16W; S5024PV5-EI-S: MIN: 11W MAX: 20W; S5024PV5-EI: MIN: 9W MAX: 23W; S5048PV5-EI: MIN: 18W MAX: 41W
Fan NUM	S5008PV5-EI-S: Fanless; S5016PV5-EI-S: Fanless; S5024PV5-EI-S: Fanless; S5024PV5-EI: Fanless; S5048PV5-EI: 1
PoE+	-
MTBF(Year)	S5008PV5-EI-S: 140.82; S5016PV5-EI-S: 136.24; S5024PV5-EI-S: 150.86; S5024PV5-EI: 150.86; S5048PV5-EI: 115.68
MTTR(Hour)	1
Weight	S5008PV5-EI-S: ≤1.5kg; S5016PV5-EI-S: ≤2kg; S5024PV5-EI-S: ≤2.5kg; S5024PV5-EI: ≤2.5kg; S5048PV5-EI: ≤3.5kg
