H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

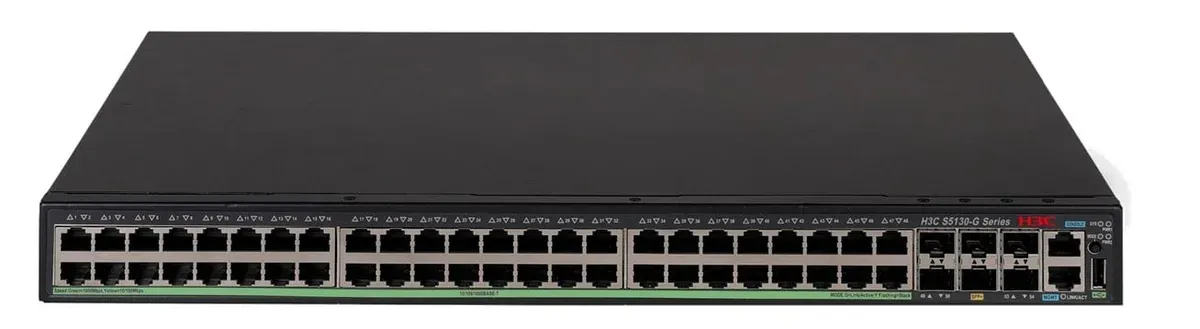

A 48-port gigabit access switch with six 10G SFP+ uplinks, Layer 3 routing, IRF2 and surge protection for high-density campus access.
Island-wide delivery to all 25 districts
| Port Switching Capacity | 216Gbps |
|---|---|
| Forwarding Capacity | 161Mpps |
| Box Switching Capacity | 336Gbps |
| FLASH/RAM | 3.5GB / 1GB |
| Memory Capacity of Packet Buffer(bytes) | 3MB |
| Latency (64byte/µs) | GE: < 5µs 10GE < 3µs |
| Dimensions(W× D×H) | 440×260×43.6 mm |
| Weight | 3.9kg(with APD 70W) |
| 10/100/1000 Base-T Port | 48 |
| SFP+ Port | 6 |
| Maximum Stacking Bandwidth | 80Gbps |
| Maximum Stacking Num | 9 |
| Input Voltage | AC: Rated voltage range: 100V~240V AC, 50/60Hz |
| Power Consumption(full configuration) | MIN: SINGLE AC：26.3W Dual AC：27.0W MAX: SINGLE AC：59.7W Dual AC：60.1W |
| Fan NUM(fiexd) | 2 |
| MTBF(Year) | 151.15 |
| MTTR(Hour) | 1 |
| NOISE(ISO7779) | 36.7dB/45.2dB |
| Operating Temperature | -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating & Storage Relative Humidity(noncondensing) | 5% ~ 95% |
| Port Aggregation | GE/10GE port aggregation Dynamic aggregation Static aggregation Cross-device aggregation |
| Ethernet Interface | MDI/MDIX (medium-dependent interface/MDI crossover) |
| Broadcast/Multicast/Unicast storm suppression | Storm suppression based on port bandwidth percentage Storm suppression based on PPS Storm suppression based on BPS Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression |
| IRF2 | Distributed device management, distributed link aggregation, and distributed resilient routing Stacking through standard Ethernet interfaces Local device stacking and remote device stacking |
| MAC Address Table | Static MAC address Blackhole MAC address Mac address authentication |
| VLAN | Port-based VLAN MAC-based VLAN Protocol-based VLAN QinQ and selective QinQ VLAN mapping Voice VLAN GVRP LLDP/ LLDP-MED Dynamic VLAN assignment Guest VLAN |
| DHCP | DHCP Client DHCP Snooping DHCP Snooping option82 DHCP Relay DHCP Server DHCP auto-config |
| Part numbers | LS-S5130S-54S-EI-G, SOHO-SWITCH-FL-01, SOHO-SWITCH-FL-02, SFP-XG-D-AOC-10M, SFP-XG-D-AOC-20M, SFP-XG-D-AOC-7M, SFP-XG-LX-SM1270-BIDI, SFP-XG-LH40-SM1270-BIDI, SFP-XG-LX-SM1330-BIDI, SFP-XG-LH80-SM1490-BIDI, SFP-XG-LH80-SM1550-BIDI, SFP-XG-LX-SM1310 |
