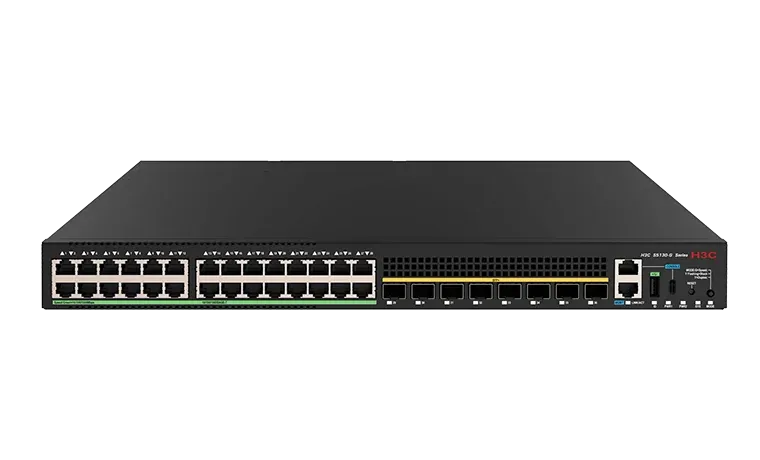

Next-generation gigabit and multigigabit access switches with 10G uplinks, SmartMC and Cloudnet cloud management.
Island-wide delivery to all 25 districts
| Models | S5130S-28T8X-EI-G-V2, S5130S-48T6X-EI-G-V2, S5130S-24UN8X-EI-G-V2, S5130S-48UN6X-EI-G-V2 |
|---|---|
| Port switching capacity | S5130S-28T8X-EI-G-V2: 216Gbps; S5130S-48T6X-EI-G-V2: 216Gbps; S5130S-24UN8X-EI-G-V2: 280Gbps; S5130S-48UN6X-EI-G-V2: 360Gbps |
| Forwarding capacity | S5130S-28T8X-EI-G-V2: 161Mpps; S5130S-48T6X-EI-G-V2: 161Mpps; S5130S-24UN8X-EI-G-V2: 208Mpps; S5130S-48UN6X-EI-G-V2: 268Mpps |
| Box switching capacity | 672Gbps |
| CPU | DualCore,1.2GHz |
| SDRAM | 2G |
| FLASH | 8G |
| Buffer | 3MB |
| Dimensions (W× D×H) | S5130S-28T8X-EI-G-V2: 440×360×44 mm; S5130S-48T6X-EI-G-V2: 440×360×44 mm; S5130S-24UN8X-EI-G-V2: 440×400×44 mm; S5130S-48UN6X-EI-G-V2: 440×400×44 mm |
| Weight | S5130S-28T8X-EI-G-V2: ≤6kg; S5130S-48T6X-EI-G-V2: ≤5.9kg; S5130S-24UN8X-EI-G-V2: ≤6.5kg; S5130S-48UN6X-EI-G-V2: ≤6.7kg |
| 10/100/1000 Base-T port | S5130S-28T8X-EI-G-V2: 28; S5130S-48T6X-EI-G-V2: 48; S5130S-24UN8X-EI-G-V2: -; S5130S-48UN6X-EI-G-V2: - |
| 10/100/1000/2.5GBase-T port | S5130S-28T8X-EI-G-V2: -; S5130S-48T6X-EI-G-V2: -; S5130S-24UN8X-EI-G-V2: 24; S5130S-48UN6X-EI-G-V2: 48 |
| PoE++(100W single port) | S5130S-28T8X-EI-G-V2: -; S5130S-48T6X-EI-G-V2: -; S5130S-24UN8X-EI-G-V2: Y; S5130S-48UN6X-EI-G-V2: Y |
| SFP+ port | S5130S-28T8X-EI-G-V2: 8; S5130S-48T6X-EI-G-V2: 6; S5130S-24UN8X-EI-G-V2: 8; S5130S-48UN6X-EI-G-V2: 6 |
| Latency (64byte LIFO) | ≤3.0μs |
| Console port | 1 |
| Type-C console port | 1 |
| Management Ethernet port | 1 |
| USB port | 1 |
| Maximum stacking bandwidth | 80Gbps |
| Maximum stacking number | 9 |
| Input voltage | Rated voltage range: 100 VAC to 240 VAC @ 50 Hz or 60 Hz Max voltage range: 90 VAC to 264 VAC @ 47 Hz to 63 Hz |
| Power consumption | S5130S-28T8X-EI-G-V2: MIN Single AC:22W Dual AC:23W MAX Single AC: 53 W Dual AC: 53 W; S5130S-48T6X-EI-G-V2: MIN Single AC:30W Dual AC:30W MAX Single AC: 66 W Dual AC: 65 W; S5130S-24UN8X-EI-G-V2: MIN Single AC:37W Dual AC:47W MAX Single AC:1035W (PoE 830W) Dual AC: 2568W (PoE 2400W); S5130S-48UN6X-EI-G-V2: MIN Single AC:51W Dual AC: 59W MAX Single AC:1739W (PoE 1500W) Dual AC: 3222W (PoE 2900W) |
| Fan number (fixed) | 2 |
| Sound pressure level at 27°C (80.6°F) | S5130S-28T8X-EI-G-V2: 39.7 dB; S5130S-48T6X-EI-G-V2: 31.8 dB; S5130S-24UN8X-EI-G-V2: 56.4 dB; S5130S-48UN6X-EI-G-V2: 56.1 dB |
| MTBF(Year) | S5130S-28T8X-EI-G-V2: 142.89; S5130S-48T6X-EI-G-V2: 108.1; S5130S-24UN8X-EI-G-V2: 113.5; S5130S-48UN6X-EI-G-V2: 86.5 |
| MTTR(Hour) | 1 |
| Operating temperature | -5ºC ~ 50ºC(normal operating temperature) -5ºC ~ 45ºC(When using transceiver modules with maximum transmission distance < 80km) -5ºC ~ 40ºC(When using transceiver modules with maximum transmission distance ≥ 80km) |
