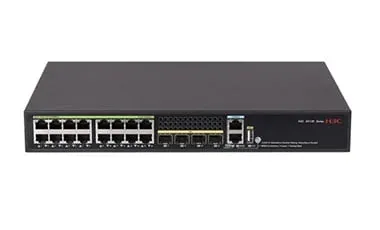

Compact 8 and 16-port gigabit access switches with fibre uplinks and fast, perpetual PoE for small offices and desktops.
Island-wide delivery to all 25 districts
| Models | S5135S-8T4S-EI-Q, S5135S-8T4XS-EI-Q, S5135S-8FP4S-EI-Q, S5135S-16T4S-EI-Q, S5135S-16T4X-EI-Q |
|---|---|
| Port Switching Capacity | S5135S-8T4S-EI-Q: 24Gbps; S5135S-8T4XS-EI-Q: 60Gbps; S5135S-8FP4S-EI-Q: 24Gbps; S5135S-16T4S-EI-Q: 40Gbps; S5135S-16T4X-EI-Q: 112Gbps |
| Forwarding Capacity | S5135S-8T4S-EI-Q: 18Mpps; S5135S-8T4XS-EI-Q: 45Mpps; S5135S-8FP4S-EI-Q: 18Mpps; S5135S-16T4S-EI-Q: 30Mpps; S5135S-16T4X-EI-Q: 83Mpps |
| System Switching Capacity | 336Gbps |
| CPU | Dual Core, 1.2GHz |
| Flash | 512MB |
| SDRAM | 1G |
| Dimensions(W x D x H) | S5135S-8T4S-EI-Q: 266 × 161 × 44mm; S5135S-8T4XS-EI-Q: 266 × 161 × 44mm; S5135S-8FP4S-EI-Q: 266 × 161 × 44mm; S5135S-16T4S-EI-Q: 330 × 230 × 44mm; S5135S-16T4X-EI-Q: 440×160×44mm |
| Weight | S5135S-8T4S-EI-Q: ≤ 1.1KG; S5135S-8T4XS-EI-Q: ≤ 1.1KG; S5135S-8FP4S-EI-Q: ≤1.5kg; S5135S-16T4S-EI-Q: ≤2.0kg; S5135S-16T4X-EI-Q: ≤1.8kg |
| 10/100/1000 Base-T port | S5135S-8T4S-EI-Q: 8; S5135S-8T4XS-EI-Q: 8; S5135S-8FP4S-EI-Q: 8; S5135S-16T4S-EI-Q: 10; S5135S-16T4X-EI-Q: 16 |
| SFP port | S5135S-8T4S-EI-Q: 4; S5135S-8T4XS-EI-Q: 2; S5135S-8FP4S-EI-Q: 4; S5135S-16T4S-EI-Q: -; S5135S-16T4X-EI-Q: - |
| SFP Plus port | S5135S-8T4S-EI-Q: -; S5135S-8T4XS-EI-Q: 2; S5135S-8FP4S-EI-Q: -; S5135S-16T4S-EI-Q: 4; S5135S-16T4X-EI-Q: 4 |
| Console Ports | 1 |
| Management Ethernet Ports | 1 |
| Maximum Stacking Bandwidth | S5135S-8T4S-EI-Q: 8Gbps; S5135S-8T4XS-EI-Q: 20Gbps; S5135S-8FP4S-EI-Q: 8Gbps; S5135S-16T4S-EI-Q: 8Gbps; S5135S-16T4X-EI-Q: 40Gbps |
| Maximum Stacking Num | 9 |
| Input Voltage | AC:90V~264V |
| Idle power consumption (30% of traffic load, tested according to ATIS standard) | S5135S-8T4S-EI-Q: Single AC: 5W; S5135S-8T4XS-EI-Q: Single AC: 5W; S5135S-8FP4S-EI-Q: Single AC: 8W; S5135S-16T4S-EI-Q: Single AC: 7W; S5135S-16T4X-EI-Q: Single AC: 6W |
| Max. power Consumption (100% throughput, full speed of fans) | S5135S-8T4S-EI-Q: Single AC: 11W; S5135S-8T4XS-EI-Q: Single AC: 16W; S5135S-8FP4S-EI-Q: Single AC: 150W (PoE: 125W); S5135S-16T4S-EI-Q: Single AC: 19W; S5135S-16T4X-EI-Q: Single AC: 17W |
| Fan NUM | Fanless |
| MTBF(Year) | S5135S-8T4S-EI-Q: 141; S5135S-8T4XS-EI-Q: 141; S5135S-8FP4S-EI-Q: 92; S5135S-16T4S-EI-Q: 141; S5135S-16T4X-EI-Q: 145 |
| MTTR(Hour) | 1 |
| Operating Temperature | -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating & Storage Relative Humidity(Noncondensing) | 5% ~ 95% |
| Models | S5135S-16FP4S-EI, S5135S-16FP4X-EI, S5135S-24P4S-EI, S5135S-24T4S-EI-Q, S5135S-24T4X-EI-Q |
| Models | S5135S-24FP4S4X-EI, S5135S-48T4S-EI-Q, S5135S-48T4X-EI-Q, S5135S-48P4X-EI, S5135S-48FP4X-EI |
| Port aggregation | GE port aggregation Dynamic aggregation Static aggregation Cross-device aggregation |
