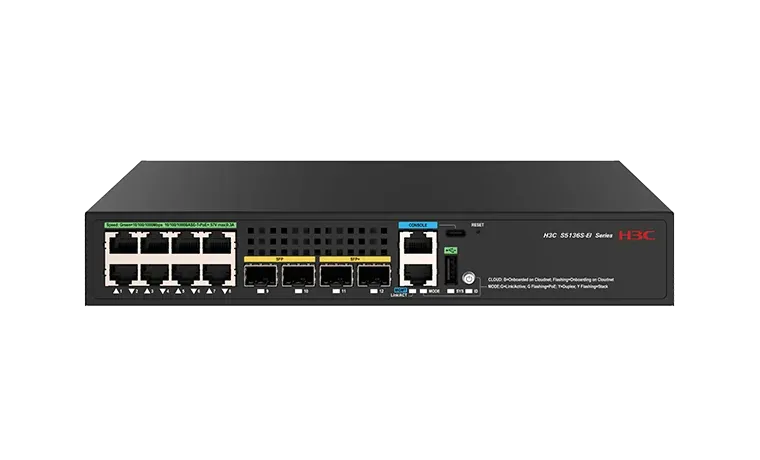

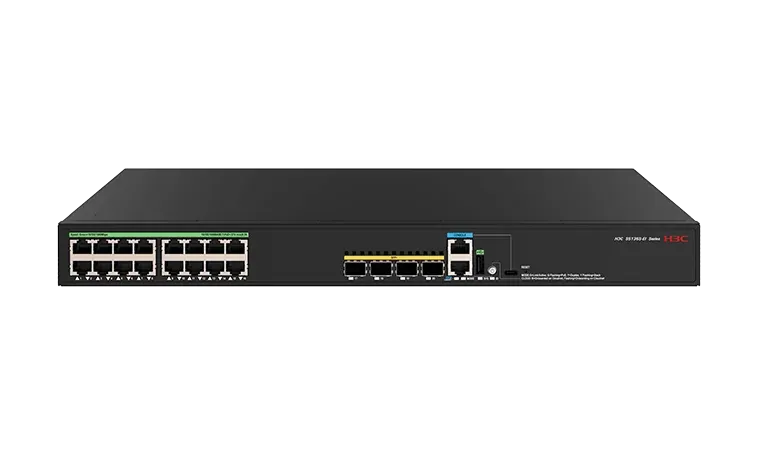

Compact gigabit and 2.5G access switches with 10G uplinks, Cloudnet cloud management and AD-Campus SDN support.
Island-wide delivery to all 25 districts
| Models | S5136S-8T4XS-EI-Q, S5136S-8N2X-EI, S5136S-10T4X-EI-Q, S5136S-16T4X-EI-Q |
|---|---|
| Port switching capacity | S5136S-8T4XS-EI-Q: 60Gbps; S5136S-8N2X-EI: 80Gbps; S5136S-10T4X-EI-Q: 100Gbps; S5136S-16T4X-EI-Q: 112Gbps |
| Forwarding capacity | S5136S-8T4XS-EI-Q: 45Mpps; S5136S-8N2X-EI: 60Mpps; S5136S-10T4X-EI-Q: 75Mpps; S5136S-16T4X-EI-Q: 84Mpps |
| System switching capacity | 336Gbps |
| CPU | Dual Core, 1.2GHz |
| SDRAM | 2G |
| Flash | 1G |
| Dimensions (H x W x D) | S5136S-8T4XS-EI-Q: 44 × 266 × 161 mm; S5136S-8N2X-EI: 44 × 266 × 161 mm; S5136S-10T4X-EI-Q: 44 × 266 × 161 mm; S5136S-16T4X-EI-Q: 44 × 440 × 160 mm |
| Weight | S5136S-8T4XS-EI-Q: ≤ 1.1kg; S5136S-8N2X-EI: ≤ 1.2 kg; S5136S-10T4X-EI-Q: ≤ 1.2 kg; S5136S-16T4X-EI-Q: ≤ 1.8 kg |
| 10/100/1000/2500 Base-T port | S5136S-8T4XS-EI-Q: -; S5136S-8N2X-EI: 8; S5136S-10T4X-EI-Q: -; S5136S-16T4X-EI-Q: - |
| 10/100/1000 Base-T port | S5136S-8T4XS-EI-Q: 8; S5136S-8N2X-EI: -; S5136S-10T4X-EI-Q: 10; S5136S-16T4X-EI-Q: 16 |
| SFP port | S5136S-8T4XS-EI-Q: 2; S5136S-8N2X-EI: -; S5136S-10T4X-EI-Q: -; S5136S-16T4X-EI-Q: - |
| SFP+ port | S5136S-8T4XS-EI-Q: 2; S5136S-8N2X-EI: 2; S5136S-10T4X-EI-Q: 4; S5136S-16T4X-EI-Q: 4 |
| Latency (64byte LIFO) | ≤2.1μs |
| Console port | 1 |
| Type-C console port | 1 |
| Management Ethernet port | 1 |
| USB port | 1 |
| Maximum stacking bandwidth | S5136S-8T4XS-EI-Q: 40Gbps; S5136S-8N2X-EI: 40Gbps; S5136S-10T4X-EI-Q: 80Gbps; S5136S-16T4X-EI-Q: 80Gbps |
| Input voltage | Rated voltage range: 100 VAC to 240 VAC @ 50 Hz or 60 Hz Max voltage range: 90 VAC to 264 VAC @ 47 Hz to 63 Hz |
| Power consumption (static) Data collection standard: no load | S5136S-8T4XS-EI-Q: 5 W; S5136S-8N2X-EI: 8 W; S5136S-10T4X-EI-Q: 5 W; S5136S-16T4X-EI-Q: 6 W |
| Power consumption (with typical configuration) Data collection standard: fully c | S5136S-8T4XS-EI-Q: 8 W; S5136S-8N2X-EI: 12 W; S5136S-10T4X-EI-Q: 16 W; S5136S-16T4X-EI-Q: 13 W |
| Power consumption (fully configured) Data collection standard: fully configured | S5136S-8T4XS-EI-Q: 16 W; S5136S-8N2X-EI: 13 W; S5136S-10T4X-EI-Q: 16 W; S5136S-16T4X-EI-Q: 17 W |
| Fan NUM | Fanless |
| Sound pressure level at 27°C (80.6°F) | NA |
| MTBF(Year) | S5136S-8T4XS-EI-Q: 209; S5136S-8N2X-EI: 163; S5136S-10T4X-EI-Q: 182; S5136S-16T4X-EI-Q: 142 |
| MTTR(Hour) | 1 |
| Operating temperature | -5ºC ~ 50ºC (Normal operating temperature) -5ºC ~ 45ºC (When using transceiver modules with maximum transmission distance < 80km) -5ºC ~ 40ºC (When using transceiver modules with maximum transmission distance ≥ 80km) From -60m to 5000m altitude: From 0m, the maximum operating temperature reduce by 0.33ºC for every time 100 the altitude increases by 100m. |
