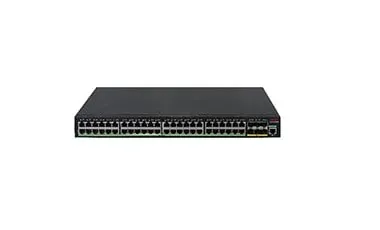

High-density gigabit access and aggregation switches with 10G uplinks, PoE options, IRF2 and SmartMC.
Island-wide delivery to all 25 districts
| Models | S5170-28S-EI, S5170-54S-EI, S5170-28S-HPWR-EI, S5170-54S-PWR-EI |
|---|---|
| Port Switching capacity(bps) | S5170-28S-EI: 128Gbps; S5170-54S-EI: 216Gbps; S5170-28S-HPWR-EI: 128Gbps; S5170-54S-PWR-EI: 216Gbps |
| System Switching Capacity(bps) | 598Gbps |
| Forwarding capacity | S5170-28S-EI: 96Mpps; S5170-54S-EI: 161Mpps; S5170-28S-HPWR-EI: 96Mpps; S5170-54S-PWR-EI: 161Mpps |
| Flash | 512M |
| SDRAM | 1G |
| Buffer(byte) | 2M |
| CPU | 1GHz, 2Cores |
| Dimensions (W × D × H) | S5170-28S-EI: 440mm×160mm ×43.6mm; S5170-54S-EI: 440mm×260mm ×43.6mm; S5170-28S-HPWR-EI: 440mm×320mm×43.6mm; S5170-54S-PWR-EI: 440mm×320mm×43.6mm |
| Weight | S5170-28S-EI: ≤2.2kg; S5170-54S-EI: ≤4.0kg; S5170-28S-HPWR-EI: ≤5kg; S5170-54S-PWR-EI: ≤5.5kg |
| 10/100/1000Base-T port | S5170-28S-EI: 24; S5170-54S-EI: 48; S5170-28S-HPWR-EI: 24; S5170-54S-PWR-EI: 48 |
| SFP+ port | S5170-28S-EI: 4; S5170-54S-EI: 6; S5170-28S-HPWR-EI: 4; S5170-54S-PWR-EI: 6 |
| Input voltage | AC: Rated voltage range: 100V~240V AC, 50/60Hz Max voltage range: 90V~ 264V AC, 47~63HZ |
| Power consumption (Full configuration) | S5170-28S-EI: 37W; S5170-54S-EI: 53W; S5170-28S-HPWR-EI: 460W (including 370w PoE); S5170-54S-PWR-EI: 470W (including 370w PoE) |
| Number of Fan | S5170-28S-EI: 1; S5170-54S-EI: 1; S5170-28S-HPWR-EI: 2; S5170-54S-PWR-EI: 2 |
| MTBF(Year) | S5170-28S-EI: 105.515; S5170-54S-EI: 34.74; S5170-28S-HPWR-EI: 44.59; S5170-54S-PWR-EI: 38.25 |
| MTTR(Hour) | 1 |
| Operating temperature | -5℃ ~ 50℃(Normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with transmission distance between 20km and 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage temperature | -40～+70℃ |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
| Port aggregation | GE/10GE port aggregation Dynamic aggregation Static aggregation Cross-device aggregation |
| Broadcast/Multicast/Unicast storm suppression | Storm suppression based on port bandwidth percentage Storm suppression based on PPS Storm suppression based on BPS Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression |
| IRF2 | Distributed device management, distributed link aggregation, and distributed resilient routing Stacking through standard Ethernet interfaces Local device stacking and remote device stacking |
| MAC address table | Static MAC address Blackhole MAC address |
| VLAN | Port-based VLAN MAC-based VLAN Protocol-based VLAN QinQ and selective QinQ VLAN mapping Voice VLAN/Private VLAN/Super VLAN GVRP |
| DHCP | DHCP Client DHCP Snooping DHCP Snooping option82 DHCP Relay DHCP Server DHCP auto-config |
| IP routing | Static routing RIPv1/v2 and RIPng OSPFv1/v2 and OSPFv3 IS-IS |
| Multicast | IGMPv1/IGMPv2/IGMPv3 IGMP Snooping V2/V3 MLD Snooping Multicast VLAN PIM-SM/PIM-SSM/PIM-DM MSDP |
