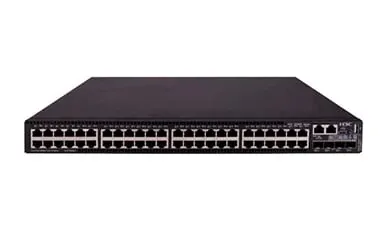

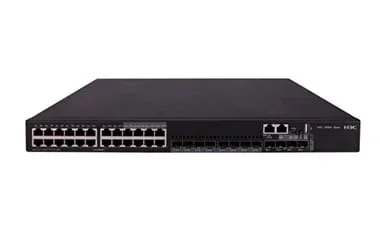

Scalable Layer 3 gigabit switches with fixed 10GE ports and an expansion slot, an embedded wireless controller and VXLAN.
Island-wide delivery to all 25 districts
| Models | S5560X-30C-EI, S5560X-54C-EI, S5560X-30F-EI, S5560X-54F-EI, S5560X-30F-EIF |
|---|---|
| Port switching capacity | S5560X-30C-EI: 288Gbps; S5560X-54C-EI: 336Gbps; S5560X-30F-EI: 288Gbps; S5560X-54F-EI: 336Gbps; S5560X-30F-EIF: 288Gbps |
| Packet forwarding rate | S5560X-30C-EI: 216 Mpps; S5560X-54C-EI: 252 Mpps; S5560X-30F-EI: 216 Mpps; S5560X-54F-EI: 252 Mpps; S5560X-30F-EIF: 216 Mpps |
| Box switching capacity | 598Gbps |
| Dimensions (H × W × D) | S5560X-30C-EI: 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in); S5560X-54C-EI: 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in); S5560X-30F-EI: 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in); S5560X-54F-EI: 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in); S5560X-30F-EIF: 43.6 × 440 × 220 mm (1.72 × 17.32 × 8.66 in) |
| Weight | S5560X-30C-EI: ≤ 6.7 kg (14.77 lb); S5560X-54C-EI: ≤ 7.0 kg (15.43 lb); S5560X-30F-EI: ≤ 6.6 kg (14.55 lb); S5560X-54F-EI: ≤ 6.7 kg (14.77 lb); S5560X-30F-EIF: ≤ 3.2 kg (7.05 lb) |
| CPU | Dual Core, 800MHz |
| Flash/SDRAM | 1GB/2GB |
| Management Ethernet ports | 1 |
| Console ports | 1 × RJ-45 console port 1 × Micro-USB console port Only the Micro-USB console port is available when you connect both ports. |
| Service ports | S5560X-30C-EI: 24 × 10/100/1000Base-T autosensing Ethernet ports (including 8 combo interfaces) 4 × 10G SFP+ ports; S5560X-54C-EI: 48 × 10/100/1000Base-T autosensing Ethernet ports 4 × 10G SFP+ ports; S5560X-30F-EI: 24 × SFP ports (including 8 combo interfaces) 4 × 10G SFP+ ports; S5560X-54F-EI: 48 × SFP ports 4 × 10G SFP+ ports; S5560X-30F-EIF: 24 × SFP ports (including 8 combo interfaces) 4 × 10G SFP+ ports 2 x 40G QSFP+ ports |
| Expansion slots | 1 / 0 |
| Compatible interface module | 2-port 40GE QSFP+ interface module 2-port 10G SFP+ interface module 2-port 25G SFP28 interface module 2-Port 10G BASE-T Interface Card with MACSec 2-Port 10G SFP Plus Interface Card with MACSec 4-Port 10/100/1000BASE-T Ethernet,6-Port SFP(2-Port Combo) Interface Module 8-Port 10G SFP Plus with MACSec Interface Module 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module / N/A |
| AC input voltage | PSR150-A1&PSR150-A2: Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz Max: 90 VAC to 264 VAC @ 47 Hz to 63 Hz |
| DC input voltage | PSR150-D1: Rated: –48 VDC to –60 VDC Max: –36 VDC to –72 VDC You can use a –48 VDC power source in the equipment room or an H3C RPS (RPS800-A or RPS1600-A). |
| Min. power consumption | S5560X-30C-EI: Single AC input: 24 W Dual AC inputs: 29 W Single DC input: 24 W Dual DC inputs: 28 W; S5560X-54C-EI: Single AC input: 27 W Dual AC inputs: 31 W Single DC input: 24 W Dual DC inputs: 29 W; S5560X-30F-EI: Single AC input: 24 W Dual AC inputs: 29 W Single DC input: 24 W Dual DC inputs: 30 W; S5560X-54F-EI: Single AC input: 30 W Dual AC inputs: 37 W Single DC input: 30 W Dual DC inputs: 36 W; S5560X-30F-EIF: AC:20W DC:23W |
| Max. power consumption | S5560X-30C-EI: Single AC input: 87 W Dual AC inputs: 91 W Single DC input: 88 W Dual DC inputs: 95 W; S5560X-54C-EI: Single AC input: 88 W Dual AC inputs: 93 W Single DC input: 89 W Dual DC inputs: 96 W; S5560X-30F-EI: Single AC input: 112 W Dual AC inputs: 116 W Single DC input: 113 W Dual DC inputs: 122 W; S5560X-54F-EI: Single AC input: 130 W Dual AC inputs: 134 W Single DC input: 132 W Dual DC inputs: 140 W; S5560X-30F-EIF: AC:71W DC:72W |
| MTBF(Year) | S5560X-30C-EI: 178.67; S5560X-54C-EI: 151.28; S5560X-30F-EI: 170.05; S5560X-54F-EI: 149.97; S5560X-30F-EIF: 170.05 |
| MTTR(Hour) | 1 |
| Operating temperature | -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with transmission distance ≥ 10km) |
| Storage temperature | -40℃ to 70℃(-40℉ to 158℉) |
| Operating &storage humidity | 5% RH to 95% RH, non-condensing |
| Models | S5560X-30C-PWR-EI, S5560X-54C-PWR-EI, S5560X-34S-EI, S5560X-54S-EI |
| Port Switching capacity | S5560X-30C-PWR-EI: 288Gbps; S5560X-54C-PWR-EI: 336Gbps; S5560X-34S-EI: 288Gbps; S5560X-54S-EI: 336Gbps |
| Packet buffer | 4M |
| Compatible interface modules | 2-port 40GE QSFP+ interface module 2-port 25G SFP28 interface module 2-port 10G SFP+ interface module 2-Port 10G BASE-T Interface Card with MACSec 2-Port 10G SFP Plus Interface Card with MACSec 4-Port 10/100/1000BASE-T Ethernet,6-Port SFP(2-Port Combo) Interface Module 8-Port 10G SFP Plus with MACSec Interface Module 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module / N/A |
| SDN/OpenFlow | OpenFlow 1.3 Multiple controllers (equal/master/slave controller role) Concurrent processing of multiple flow tables Group table Meter |
| VXLAN | VXLAN L2 switching VXLAN L3 routing VXLAN VTEP IS-IS+ENDP distributed control plane MP-BGP+EVPN distributed control plane OpenFlow+Netconf centralized control plane |
