Layer 3 gigabit access and aggregation switches with 10G uplinks, RIP/OSPF/IS-IS/BGP routing and SmartMC management.
Island-wide delivery to all 25 districts
| Models | S5570S-28S-EI, S5570S-54S-EI, S5570S-36F-EI, S5570S-54 F- EI |
|---|---|
| Port switch capacity(bps) | S5570S-28S-EI: 128G; S5570S-54S-EI: 216G; S5570S-36F-EI: 144G; S5570S-54 F- EI: 216G |
| System Switching Capacity(bps) | 598Gbps |
| Packet forwarding rate | S5570S-28S-EI: 96Mpps; S5570S-54S-EI: 161Mpps; S5570S-36F-EI: 108Mpps; S5570S-54 F- EI: 161Mpps |
| Flash | 512M |
| SDRAM | 1G |
| Buffer(byte) | 2M |
| CPU | 1GHz, 2Cores |
| Console port | 1 console port(RJ45) |
| Eth management | S5570S-28S-EI: /; S5570S-54S-EI: /; S5570S-36F-EI: /; S5570S-54 F- EI: 1 |
| USB Port | / |

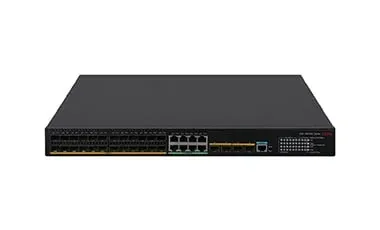

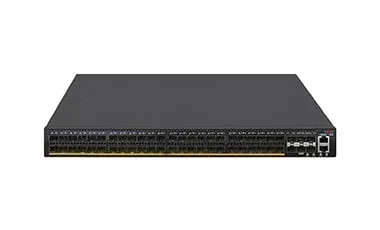

| Service port description | S5570S-28S-EI: 24*10 /100/1000Base-T autosensing Ethernet ports, 4*10G SFP+ ports; S5570S-54S-EI: 48*10 /100/1000Base-T autosensing Ethernet ports, 6*10G SFP+ ports; S5570S-36F-EI: 24*100 /1000BASE-X SFP ports, 8 10 /100/1000Base-T ports, 4*10G SFP+ ports; S5570S-54 F- EI: 48*100 /1000BASE-X SFP ports, 6*10G SFP+ ports |
| PoE+ | / |
| Dimensions (W×D×H, unit: mm ) | 440× 360×43.6 |
| weight | S5570S-28S-EI: ≤5.6kg; S5570S-54S-EI: ≤6.0kg; S5570S-36F-EI: ≤4.5KG; S5570S-54 F- EI: ≤4.5KG |
| Input voltage | AC Rated voltage range: 100V ~ 240V AC , 50/60Hz Maximum voltage range: 90V ~ 264V AC , 47 ~ 63Hz DC Rated voltage range: -48V～-60V DC Maximum voltage range: -36V～-72V DC |
| 80 PLUS(80 PLUS Certified) | - |
| Power consumption (static) | S5570S-28S-EI: Single AC: 16W Single DC: 22W Dual AC: 18W Dual DC: 27W; S5570S-54S-EI: Single AC: 18W Single DC: 23W Dual AC: 23W Dual DC: 29W; S5570S-36F-EI: Single AC: 29W Single DC: 30W Dual AC: 35W Dual DC: 35W; S5570S-54 F- EI: Single AC: 36W Single DC: 38W Dual AC: 43W Dual DC: 43W |
| Power consumption (at full load) | S5570S-28S-EI: Single AC: 37W Single DC: 41W Dual AC: 39W Dual DC: 45W; S5570S-54S-EI: Single AC: 55W Single DC: 56W Dual AC: 57W Dual DC: 61W; S5570S-36F-EI: Single AC: 52W Single DC: 54W Dual AC: 58W Dual DC: 60W; S5570S-54 F- EI: Single AC: 77W Single DC: 77W Dual AC: 80W Dual DC: 84W |
| Fan | S5570S-28S-EI: 2; S5570S-54S-EI: 2; S5570S-36F-EI: 3; S5570S-54 F- EI: 3 |
| MTBF(Year) | S5570S-28S-EI: 96.94; S5570S-54S-EI: 79.5; S5570S-36F-EI: 67.03; S5570S-54 F- EI: 60.98 |
| MTTR(Hour) | 1 |
| Working temperature | -5℃～45℃ |
| Storage temperature | -40～+70℃ |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
| Models | S5570S-28S-HPWR-EI-A, S5570S-54S-PWR-EI-A, S5570S-30MS-UPWR-EI |
| Port Aggregation | GE/10GE port aggregation Dynamic aggregation Static aggregation Cross-device aggregation |
| Port Characteristics | Support IEEE 802.3x flow control (full duplex) Supports storm suppression based on port rate percentage Supports PPS-based storm suppression Support bps-based storm suppression |
